4S 30A 14.8V 18650 Li-ion Lithium Battery Charger BMS Protection

Description :

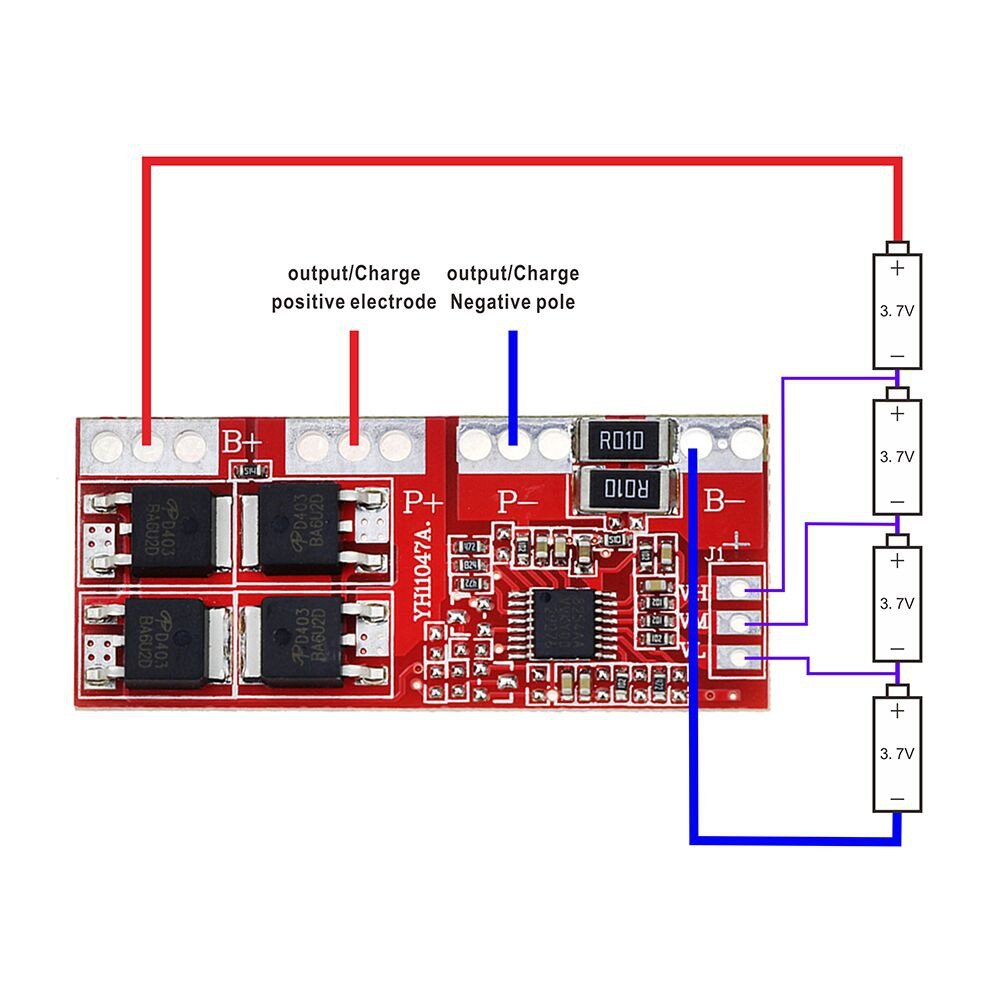

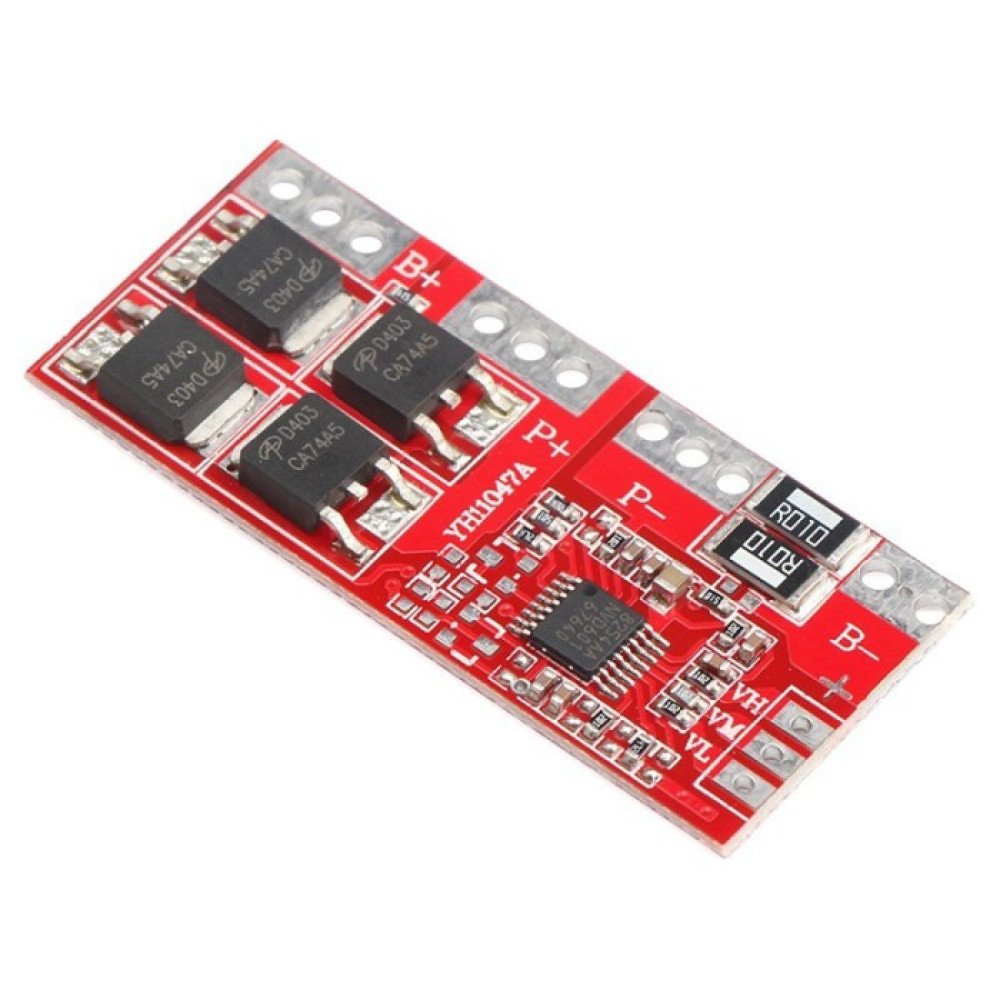

4S Li-ion Lithium Battery Protection Board

Protections:

Short circuit protection

Overcharge protection

Over-discharge protection

Overcurrent protection

operating temperature:40-85°

• overcharge detection voltage :4.25±0.025V

• overcharge Lift the voltage:4.15±0.05V

• over discharge detection voltage :2.50±0.08V

• over discharge Lift the voltage:3.00±0.1V

• overcurrent current:20-30A

• working current:15A(Natural cooling 10.A, add heat sink 15A, the maximum instantaneous current 30A)

• Remove protection condition automatic recovery, without activation
