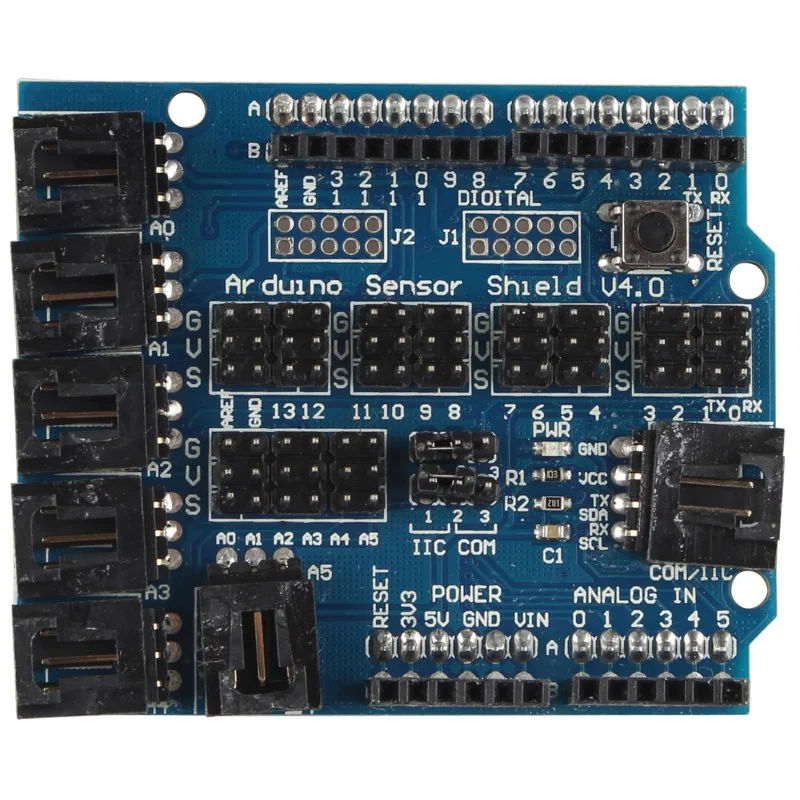

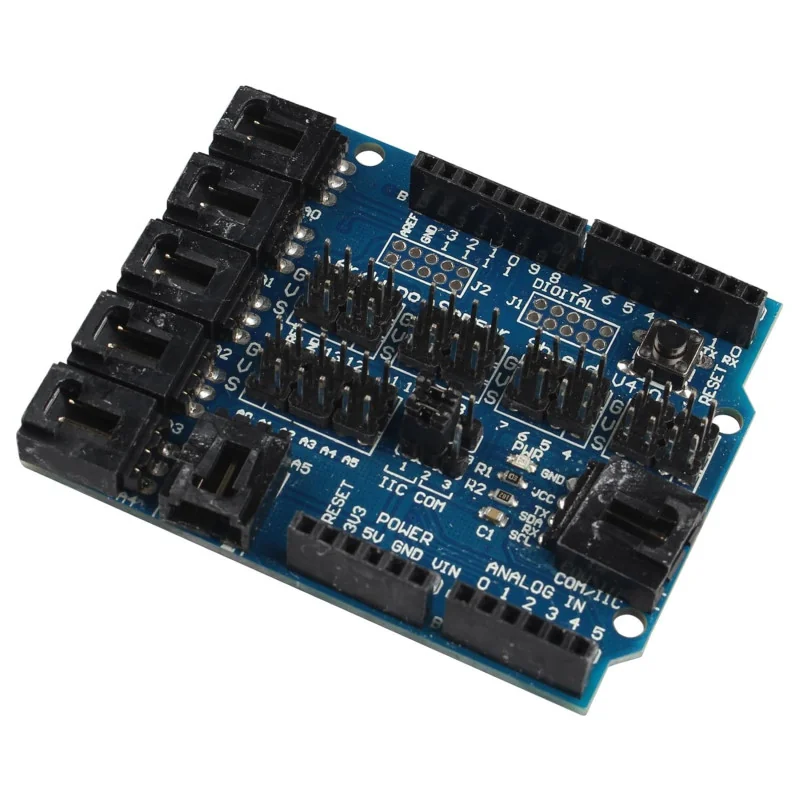

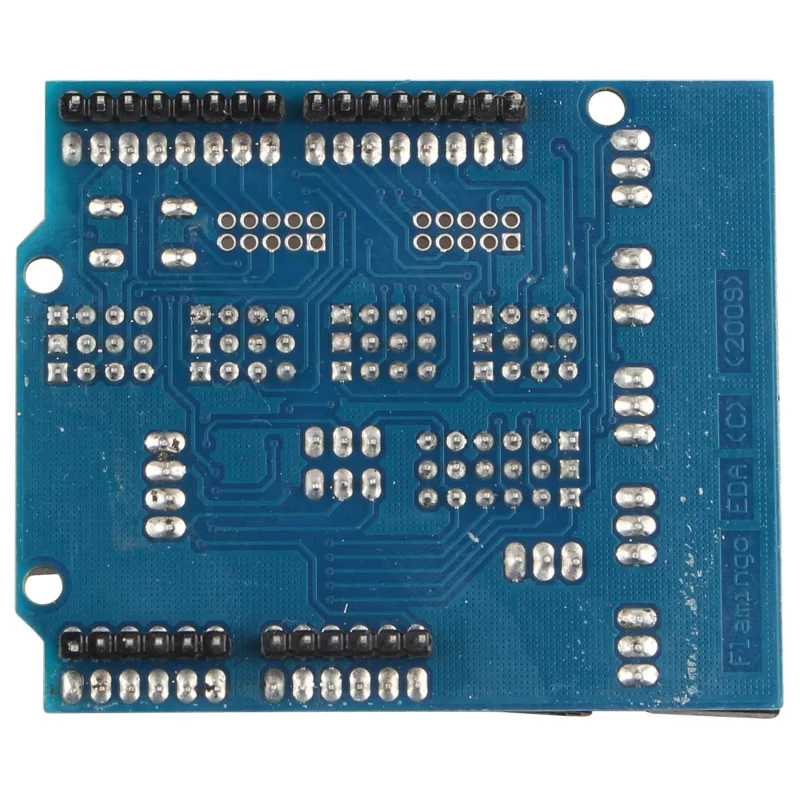

V4.0 Sensor Shield
DZD 850
Description
1 x Wristband Supports plug and play.
2. Each functional module has buckle port with VCC, GND and Output, which corresponding port on the Sensor Shield, connected to a regular 2.54mm dual-female cable that you can start playing already.
3. Operating voltage: 5 V DC.
4. Input voltage (recommended): 7-12VDC.
5. Input voltage (limits): 6-20VDC.
6. Closed ogue port: Convenient, solid connection with 6 ogue inputs to VCC/GND.
7. Digital PO port: 13 ports prepared for digital modules or servos.
8. og PO port: 2.54 grid male pin header connections.
9. Closed communication port: selectable between I2 C and UART.
10.Dimensions: 7 x 5.5 cm.
Package Content:
1 x Sensor shield V4
