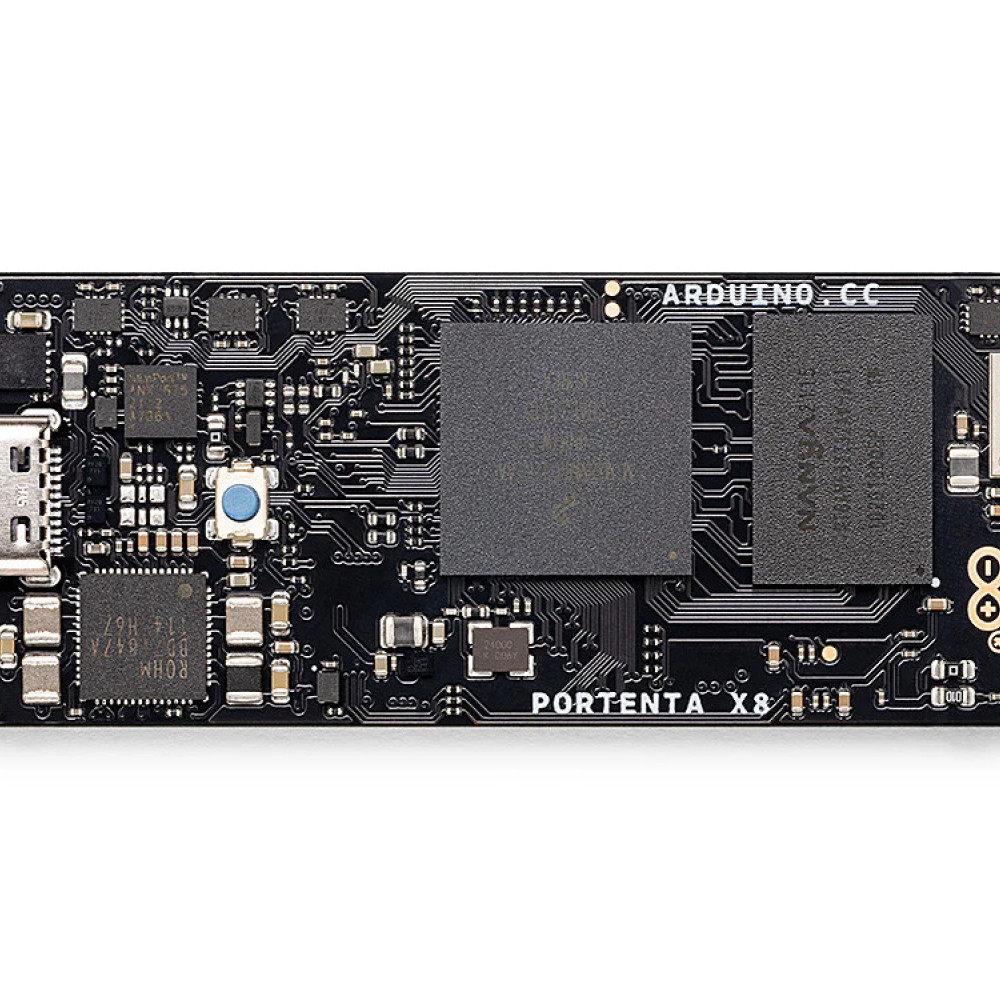

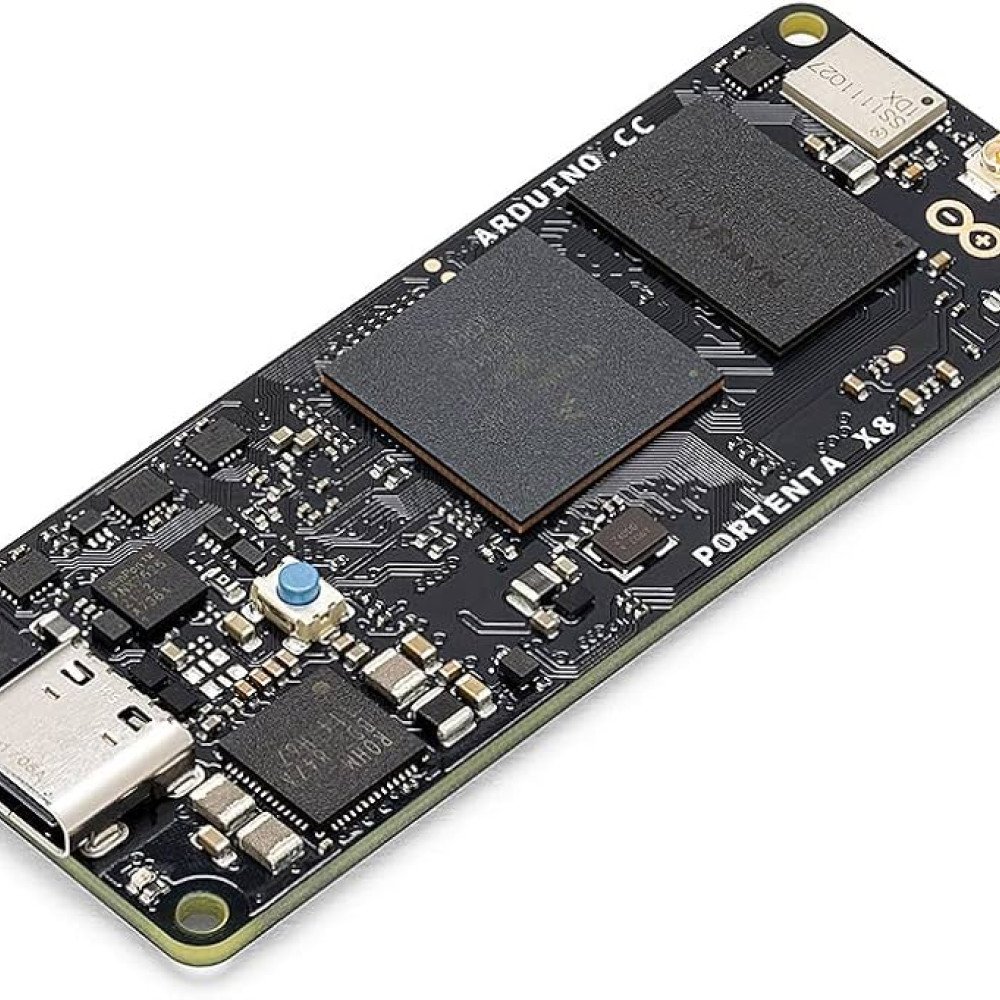

Arduino Portenta X8

Description :

• The Portenta X8 is an industrial-grade System on Module (SoM) with exceptional power, featuring a total of 9 cores for processing and artificial intelligence.

• Two systems in one: Linux distribution and Arduino environment

• Equipped with a NXP i.MX 8M Mini and a STM32H747XI

• Compatible with IoT solutions and advanced industrial platforms

Contents

• Card Arduino Portenta X8

• Wi-Fi and Bluetooth antenna

Features

MICROPROCESSORS

• NXP i.MX 8M Mini :
  • 4 Cortex-A53 cores at 1.8 GHz
  • 1 Cortex-M4 core at 400 MHz
• STM32H747XI :
  • Cortex-M7 at 480 MHz
  • Cortex-M4 at 240 MHz

MEMORY

• RAM: 2 GB DDR4
• Storage: 16 GB eMMC Flash

CONNECTIVITY

• Wi-Fi 802.11 b/g/n and Bluetooth 5.1 BLE/EDR (Murata 1DX module)
• High-density interfaces: PCIe, USB, Gigabit Ethernet, UART, I2C, SPI, I2S, PWM

SECURITY

• NXP SE050C2 chip for advanced encryption and secure storage
• PSA and Arm SystemReady certified

INTERFACES

• 2 USB ports, microSD support, PCIe, Ethernet 10/100 Mbit/s
• UFL connector for an external antenna

ENVIRONMENT AND DIMENSIONS

• Operating temperature : -40°C to 85°C
• Dimensions: 66 x 25 mm
• Weight: 10.2 g

Useful resources

• User's guide
• Datasheet
• Schematics
• Pinout
• Hardware

Programming

To program with Arduino, you can use Arduino software platforms:

• , available for free download, or the

•  available online. In the Tools > Map menu, simply select "Arduino Portenta X8".

For advanced use, the  command-line tool provides access to all libraries.
