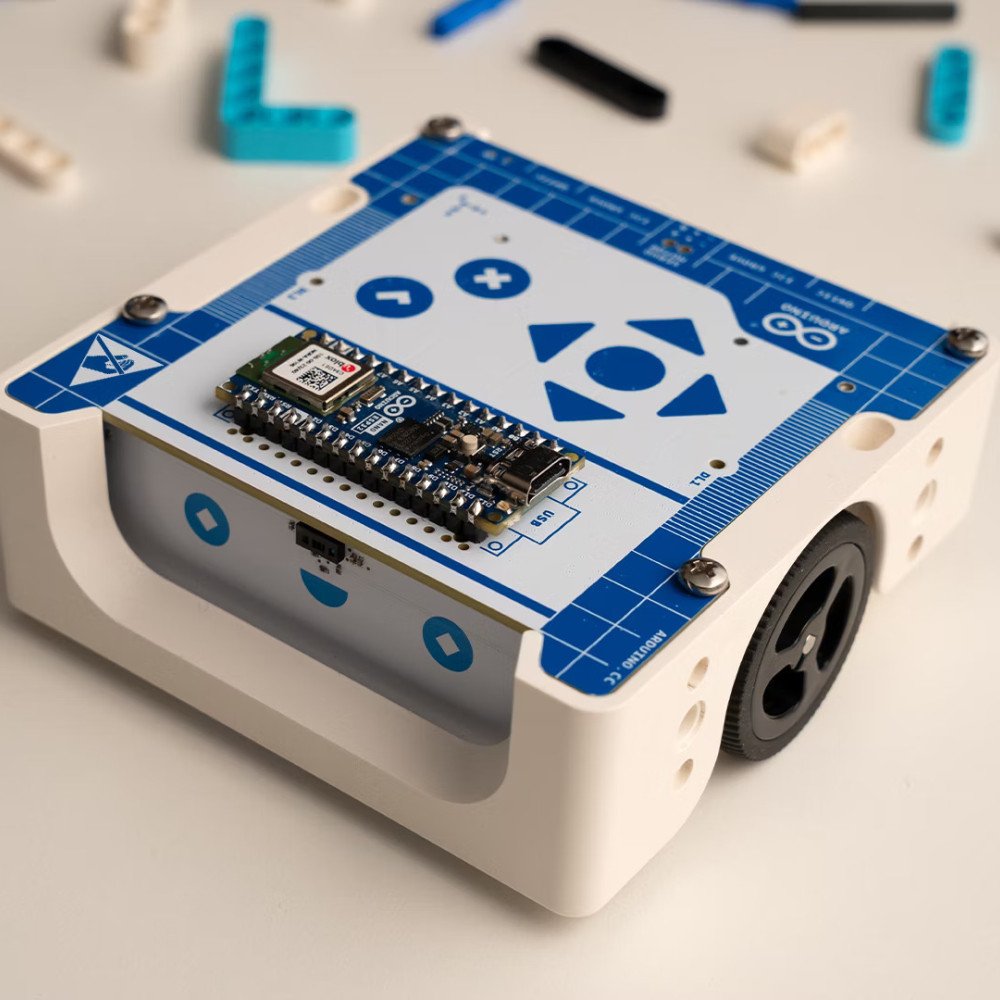

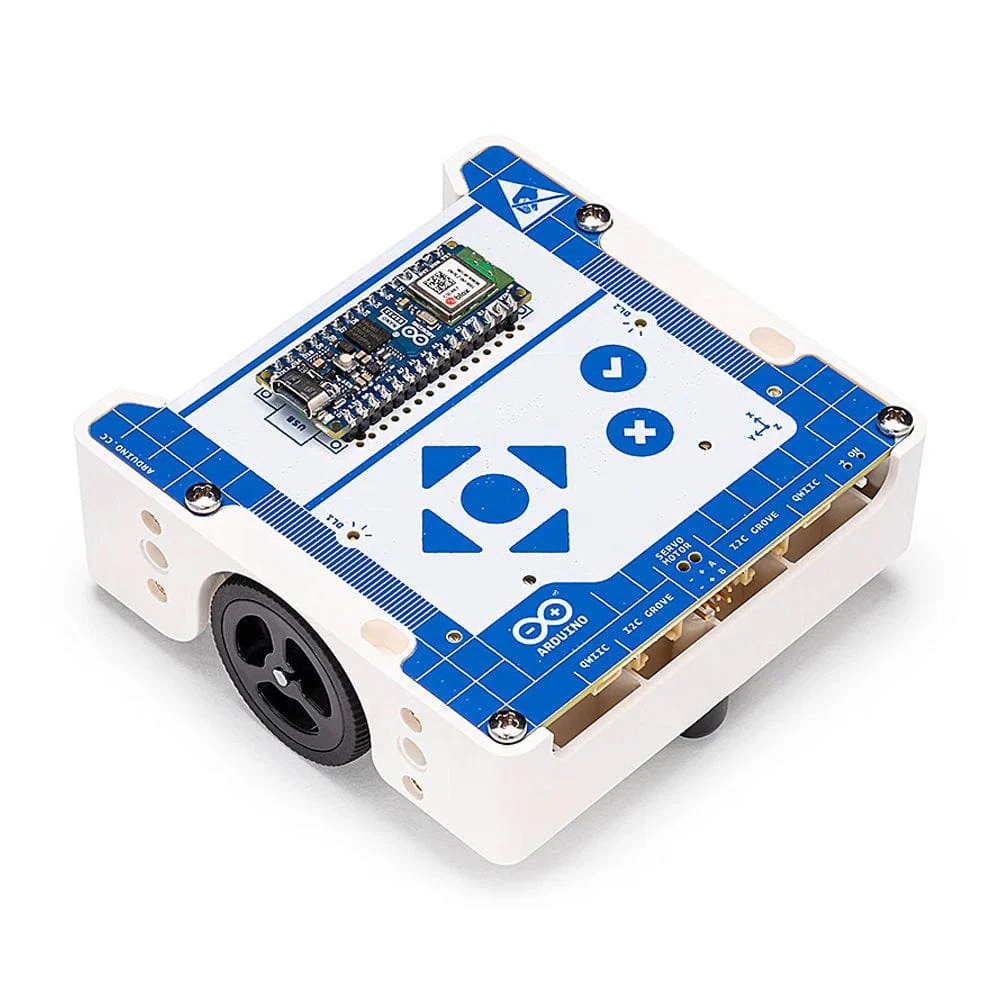

Arduino Alvik

Description :

• Robot powered by the Arduino ESP32 board, designed for learning programming and exploring robotics

• Supports programming in MicroPython, Arduino C, and block-based coding

• Equipped with multiple sensors, including: time-of-flight sensors, RGB color sensors, line-follow sensors, and a 6-axis gyroscope and accelerometer

• Expand the robot's capabilities with built-in Lego connectors

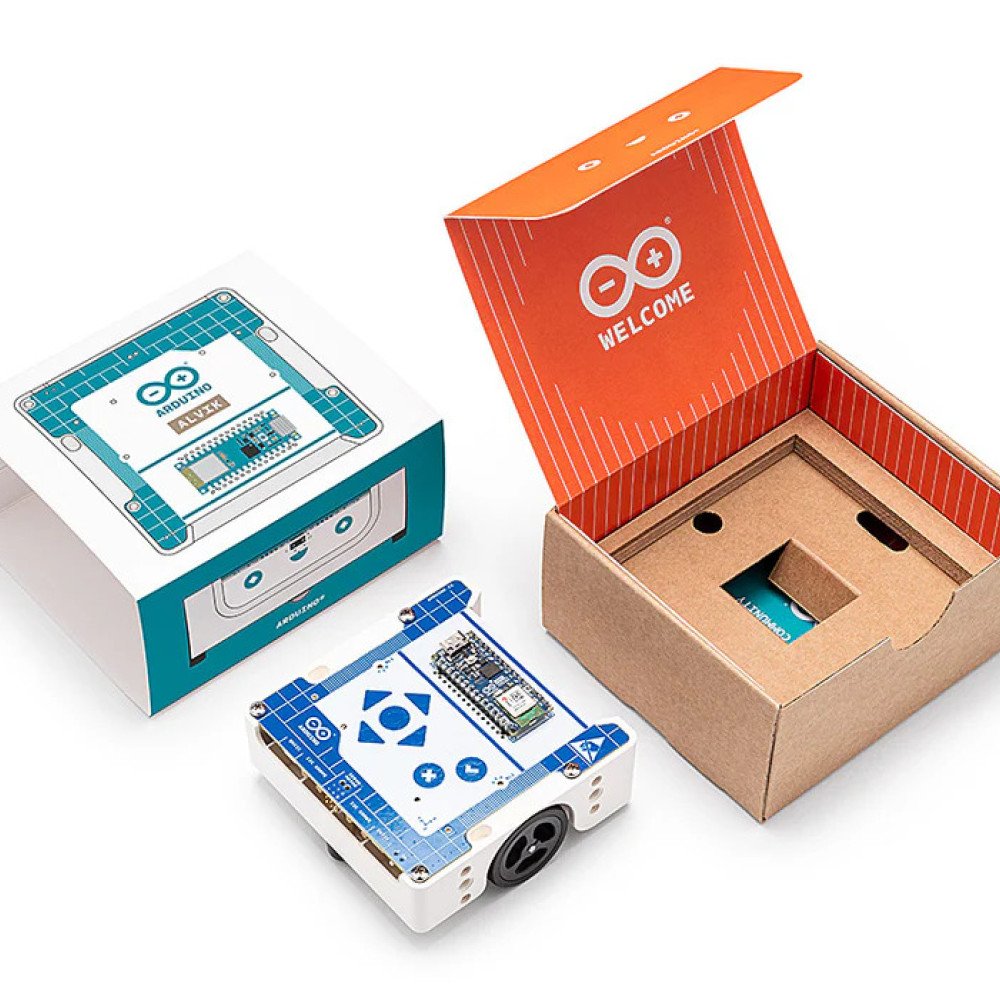

Contents

• Arduino Nano ESP32 board

• Alvik Arduino

• 18650 rechargeable battery

• USB-C™ cable (1 m)

• Contrôleur principal Arduino Nano ESP32 :

  • 8 Mb RAM
  • u-blox NORA-W106 (ESP32-S3)
  • Processor up to 240 MHz
  • 384 KB ROM + 512 KB SRAM
  • 16 MB external FLASH memory
  • STM32 Arm Cortex-M4 32-bit

• Power Supply:

  • Rechargeable and replaceable Li-Ion 18650 battery (included)
  • Nano ESP32 USB-C

• Programming Languages:

  • MicroPython, Arduino, and block-based programming

• Connectivity:

  • Wi-Fi
  • Bluetooth LE

• Inputs:

  • Time-of-flight distance sensor (up to 350 cm)
  • RGB color sensor
  • 6-axis gyroscope-accelerometer
  • x3 Line-tracking sensor array
  • x7 Touch buttons

• Outputs:

  • x2 RGB LEDs
  • 6V motors (96 RPM no-load speed, 70 mA no-load current)

• Extensions:

  • x4 LEGO Technic connectors
  • x8 M3 screw connectors
  • Servo motor
  • I²C Grove
  • I²C Qwiic
