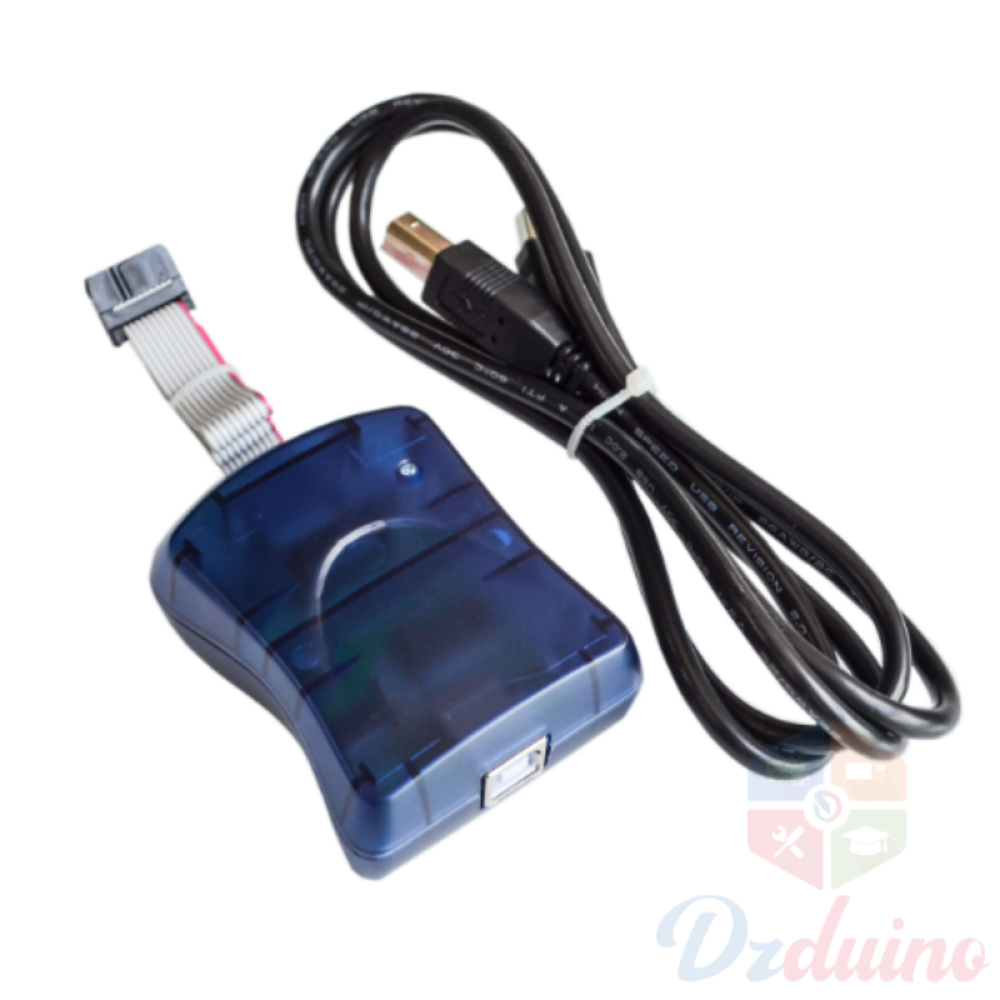

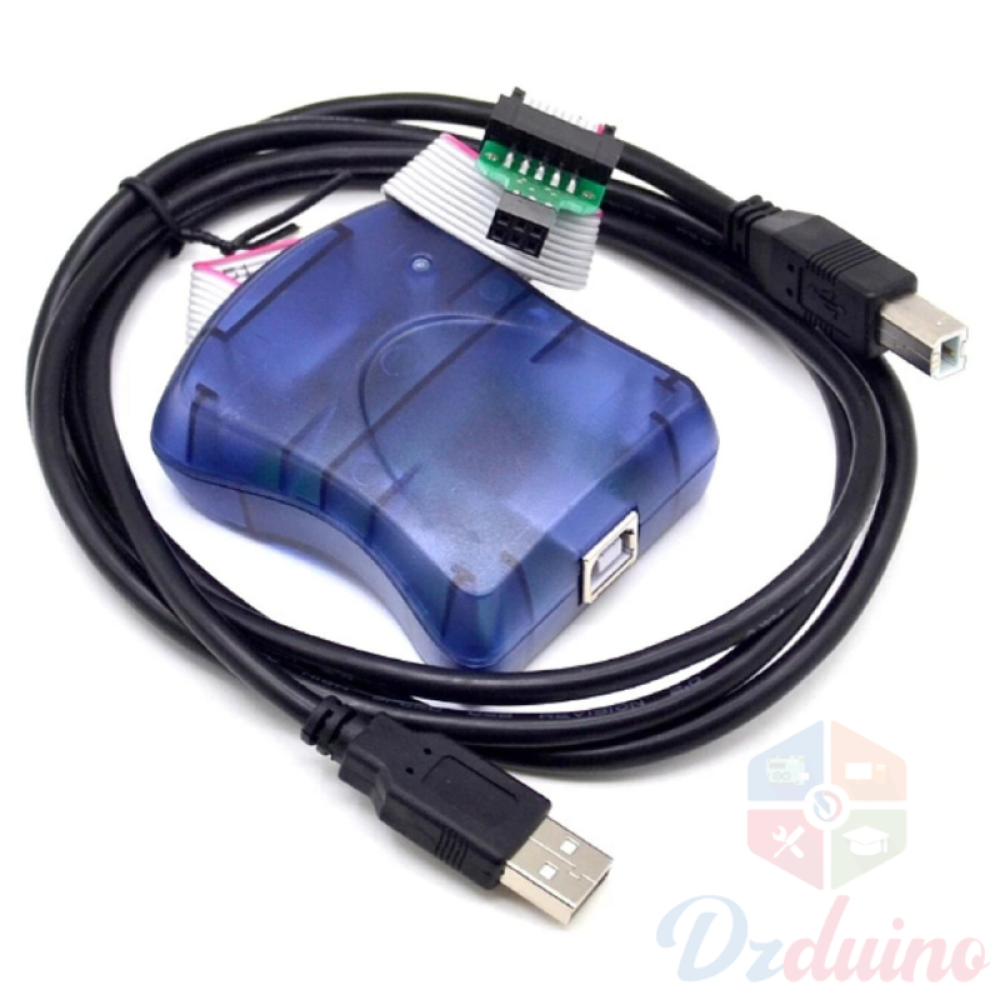

AVAT AVRISP mkII XP2 AVR ISP mk2 USB AVRISP In-System

Product Description

Item specifics:
AVRISP mkii XPII AVR ISP mk2 USB AVRISP In-System Programmer Supports AVR Studio 4&5&6&7
Support WIN10, but when you use WIN10, please download AVR Studio >7

1. Supports all AVR devices with ISP or PDI interface, and certain 51 Devices
2. Programs both Flash and EEPROM
3. Supports Fuses and Lock Bit Programming
4. Based on AT AVRISP mkII firmware
5. Upgradable to support future devices
6. Adjustable ISP programming speed up to 8M frequency
7. USB 2.0 compliant (full speed, 12Mbps)
8. 3 optional cables to target board
9. Powered from USB bus, does not require external power supply

AT AVRISP mkII compliant

1. Compatible with AT AVR ISP, easy to use, stable and reliable

Based on AT AVRISP mkII firmware

1. Identified as AVRISP mkII in AVRStudio, high speed programming

Upgradable firmware

1. Firmware is upgradable to Support Future Devices
2. Automatic Upgrade

Supported software

1. AVR Studio 6 or WINAVR(GCC) is used as front-end software
2. Supports the program files generated by IAR, ICCAVR, CVAVR

Supported Device

1. USB AVRISP MKII supports all AVR devices with ISP and PDI Interface. Support for new devices will be added with new versions of AVR Studio.2. Supports AT86RF401/AT89S51/AT89S52

Refer to AVR Studio 6, the following devices are supported:
* Supports all the different voltages and speed grade versions of the devices listed in the table above.

Performance
1. High speed programs FLASH , EEPROM, Fuses, and Lock Bit
2. It takes only 2.5S to program a 12K program file with verification (programming speed was set to 1M while the Max speed could be up to 8M)

Connects to PC

1. Uses a USB interface for communication with the front-end software (Probably AVR Studio)2. Using PDIUSBD12, USB 1.1 (USB 2.0 Full Speed) 12Mbits/second3. Each
