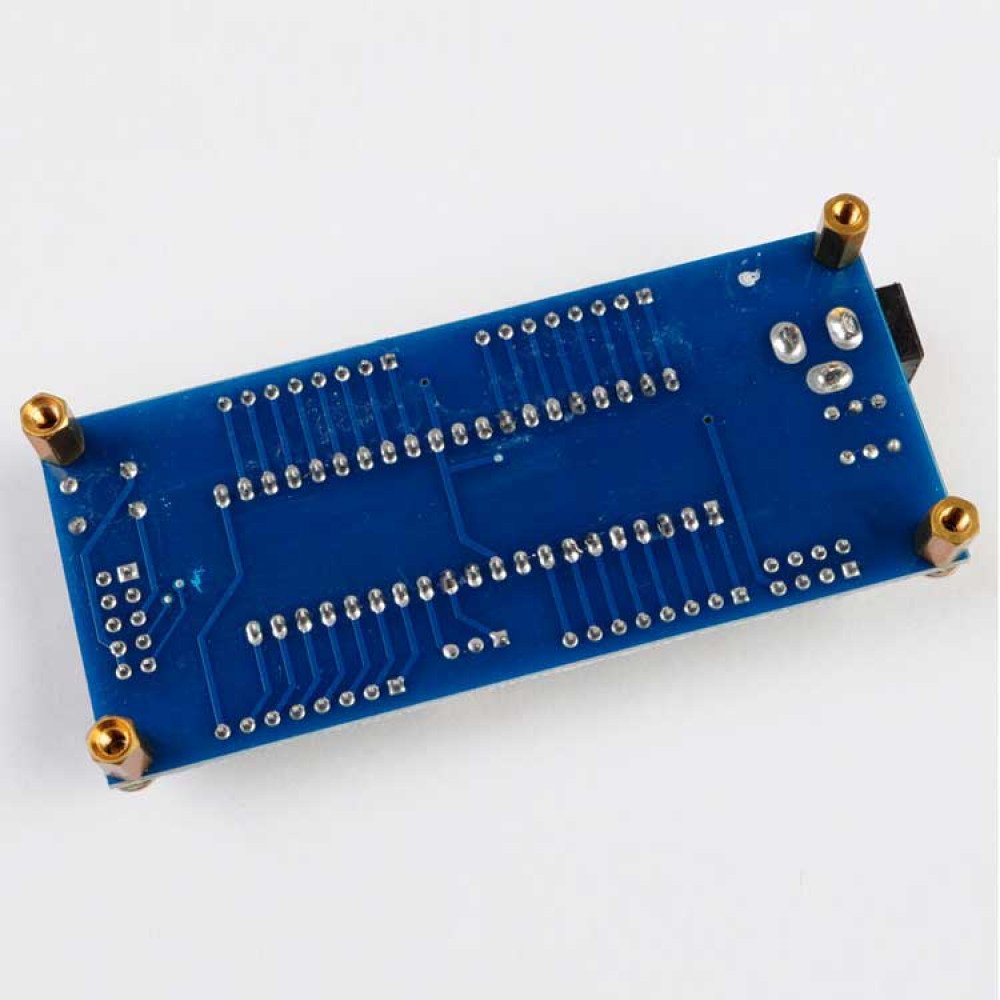

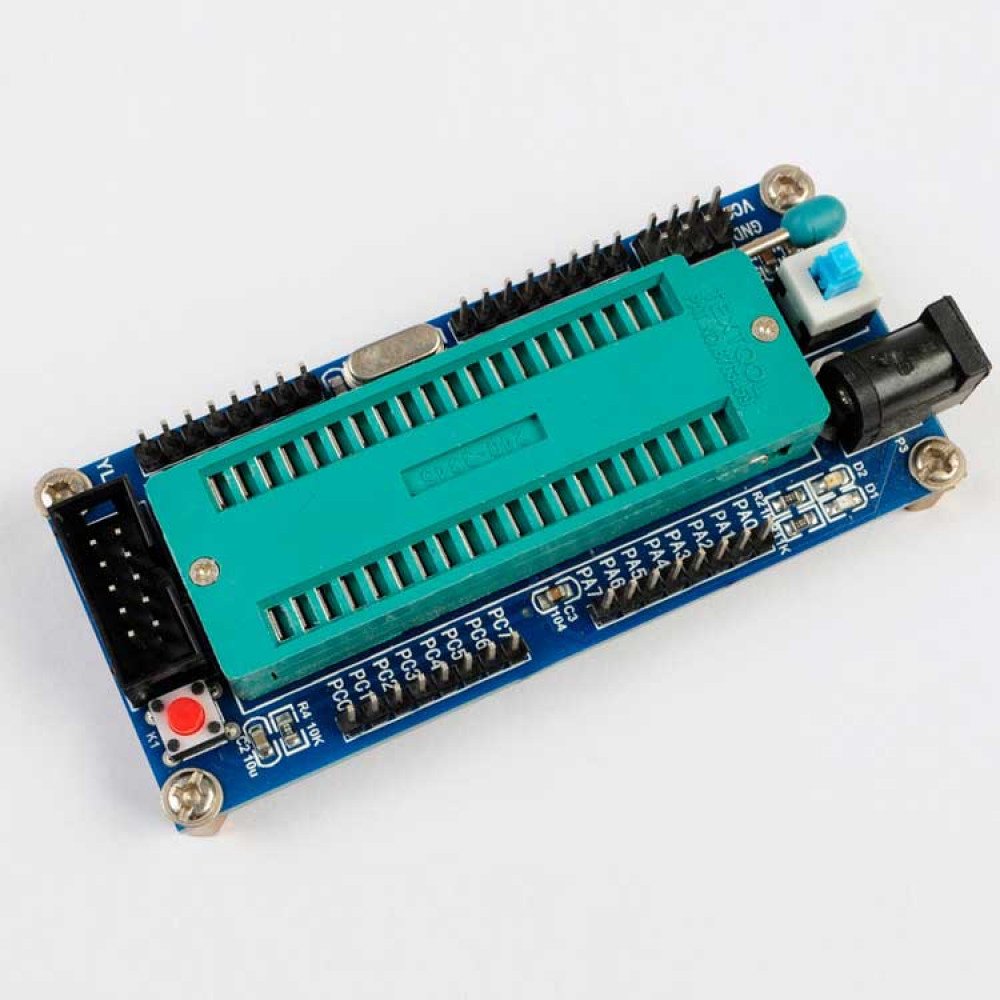

AVR Development Board ISP Atmega16/32

AVR Mini System Development Board ISP Atmega16 Atmega32(NO Chip)

NOTE: This minimum system development board without AVR chip,you need purchase for chip in additional!!!!

Features
1. 32 I/O pin all the leads.
2. Classic ATmega16 minimum system, eliminating the hassle of soldering
3. Crystal: The socket hole welding facilitate the buyer to replace the crystal, 12M crystal
4. support chips: ATmega16/ATmega32 and chip which pin-compatible
5. Power supply: power adapter or external expansion pin power supply (not support ISP download interface power supply)
6. DC-005 Power Block (supporting the transposon is 5.5*2.1mm)
7. expand outside 4 channel VCC, GND
8. Reset: Power-on reset and reset button
9. Power LED (D1) and the program run indicator (D2)
10 standard ISP download interface
