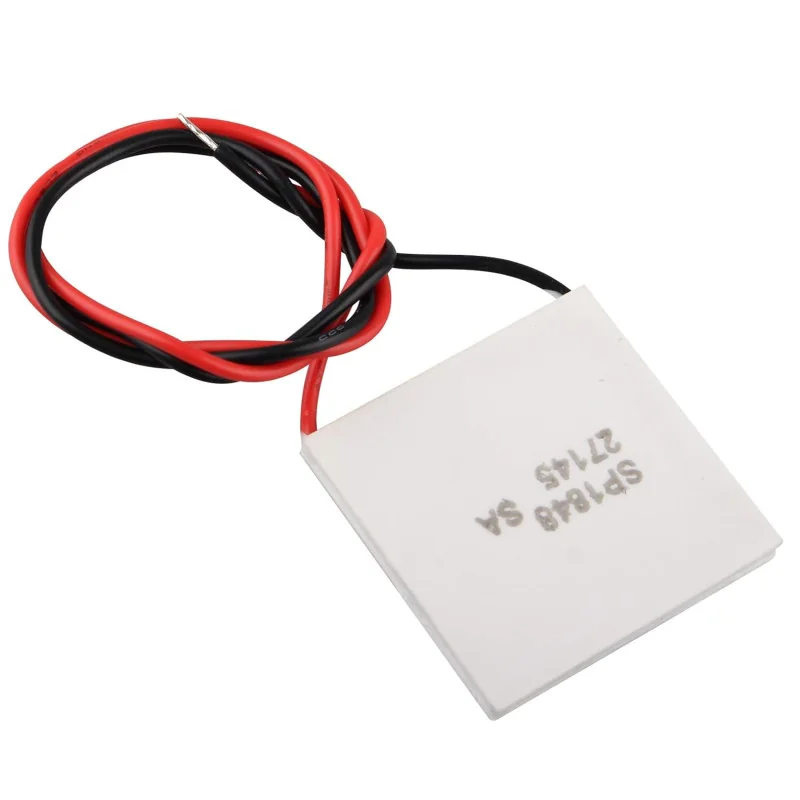

SP1848-27145 40*40mm 120 degree

Small and lightweight, convenient for use.
Designed specifically for power generation.
Sealed for moisture protection and contain thermal elements formulated for optimum Seebeck power generation.
High temperature 120℃, with NM static protection.
Red wire connects positive pole, black wire connects negative pole and generates electricity when temperature difference exists.
The worded side is close to the heat sink (cold end), the wordless side is close to the heat absorbing surface (hot end).
Material: Ceramic / Bismuth Telluride
Parametric model: Temperature(℃)/Open-circuit voltage(V)/Current(MA): 20/0.97/225 40/1.8/368 60/2.4/469 80/3.6/559 100/4.8/669

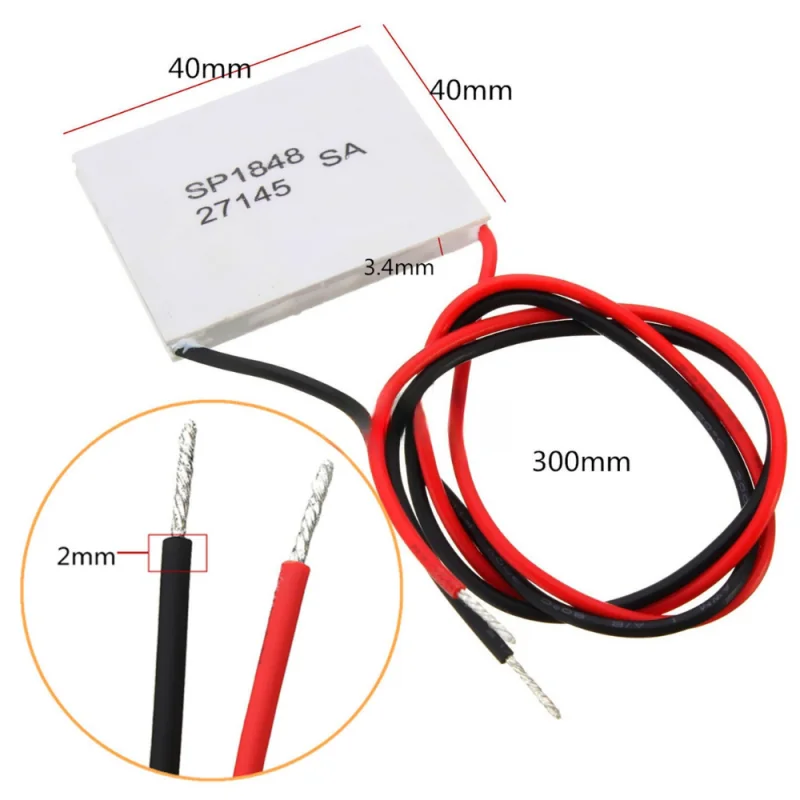

Size：40 x 40 x 4mm
Weight: 23.2g
