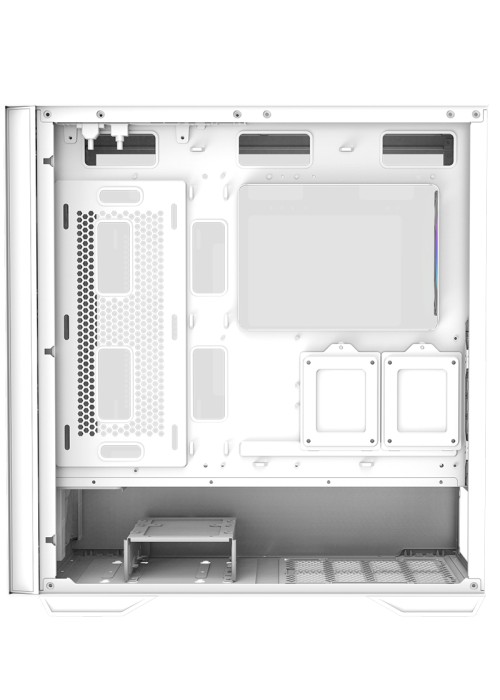

raidmax meshian x605

PRODUCT NAME

X605

PRODUCT NO.

X605TBF (Black) / X605TWF (White)

DIMENSIONS (mm)

470(L) x 230(W) x 485(H)

MOTHERBOARD SUPPORT

E-ATX / ATX / Micro-ATX / Mini-ITX

EXPANSION SLOTS

7

MATERIALS

Plastic, Steel, Tempered Glass

3.5"HDD / 2.5"SSD

2 / 2

I/O Ports

USB3.0 x 1, USB2.0 x 2, HD Audio, Power, Reset, LED Button

FAN Support

Front: 120mm x 3 / 140mm x 3 , Top: 120mm x 3 / 140mm x 2 , Rear: 120mm x 1 / 140mm x 1 , Side: 120mm x 2

PREINSTALLED FAN (s)

ARGB Fan 140mm x 3 (front) / ARGB Fan 140mm x 1 (rear)

RADIATOR Support

Front: 360/420mm , Top: 360mm , Rear: 120mm

MAX. GPU LENGTH

400mm

MAX.CPU COOLER HEIGHT

175mm

LEFT SIDE PANEL

Tempered Glass

RIGHT SIDE PANEL

Steel

PSU SUPPORT

Standard PS2 / ATX PSU ( Bottom Mounted )
