ANTEC META V450 450W
DZD 5,500
Description
ANTEC META V450 450W
Brand: Antec
Model: META V450
Product type: ATX power supply / PSU
Rated power: 450W
EAN: 761345204262
Form factor: ATX
Modular: No — fixed/non-modular cables
Color: Black
Description

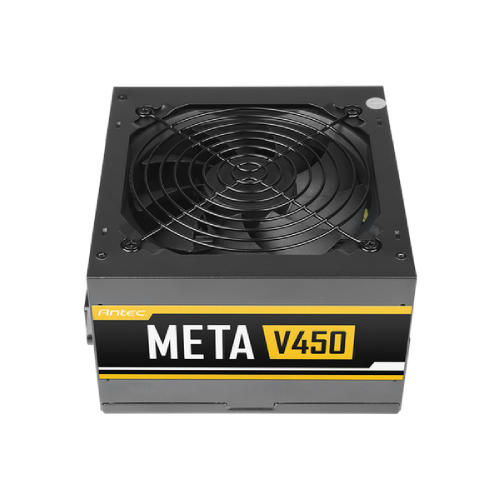

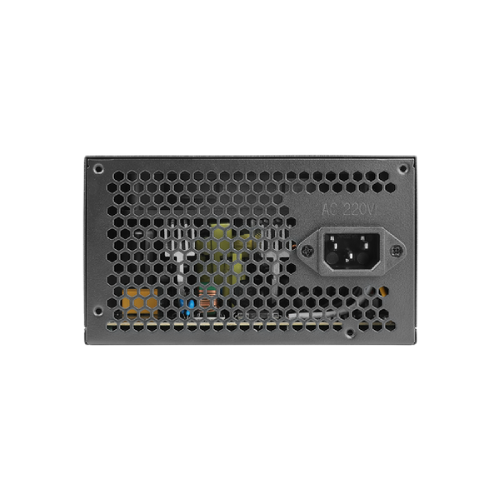

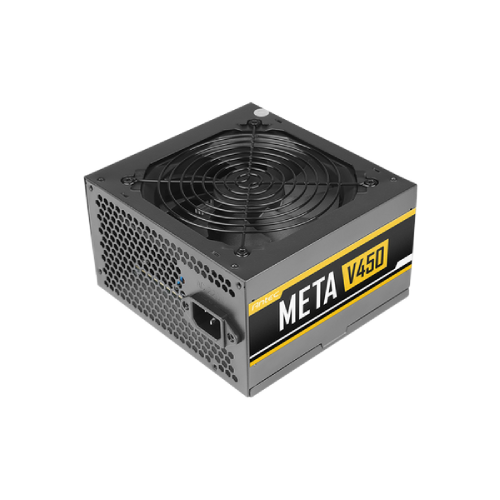

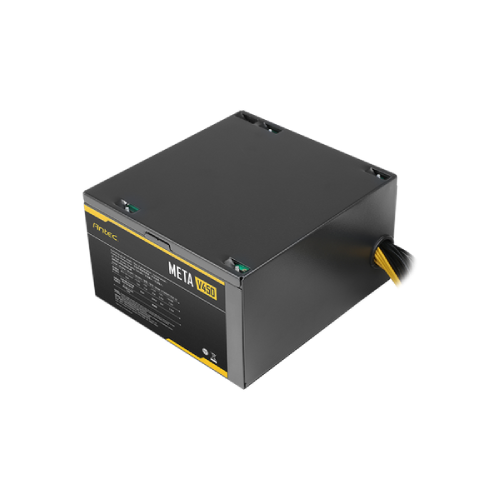

The Antec META V450 is a 450W ATX power supply designed for desktop computers and mainstream PC configurations. It provides a continuous 450W output and uses a dedicated cooling fan with Antec’s Thermal Manager fan-control system to regulate cooling according to load and temperature. The unit uses a non-modular cable design, with the main motherboard, CPU, PCIe, SATA, Molex and FDD connections permanently attached to the PSU.
The META V450 is equipped with the essential protection circuitry expected from a modern entry-level PSU, including Over Voltage Protection (OVP), Over Current Protection (OCP), Short Circuit Protection (SCP) and No-Load Operation (NLO) protection.
Full Specifications
| Specification | Details |
|---|---|
| Model | META V450 |
| Rated output power | 450W |
| Form factor | ATX |
| ATX standard | ATX 12V 2.31 |
| Cable design | Non-modular |
| Fan | 120mm silent cooling fan |
| Fan control | Thermal Manager |
| Input voltage | 100–240V AC / 230V AC depending on regional specification |
| Input frequency | 47–63Hz |
| Input current | Up to 4A |
| 80 PLUS | No official 80 PLUS certification listed |
| Color | Black |
| Protection | OVP / OCP / SCP / NLO |
| Main motherboard connector | 1 × 24-pin (20+4) |
| CPU connector | 1 × 8-pin (4+4) EPS12V |
| PCIe connector | 1–2 × 8-pin (6+2), depending on regional listing/cable revision |
| SATA | Up to 5 × SATA |
| Molex | 2 × Molex |
| FDD | 1 × FDD |
| Dimensions | approximately 150 × 140 × 86 mm |
| Construction | Black metal chassis |
| EAN supplied | 761345204262 |
Connectors
- 1 × 24-pin ATX motherboard — 20+4 configuration
- 1 × 8-pin CPU/EPS — 4+4 configuration
- PCIe: 6+2-pin connector(s) for a graphics card
- SATA: up to 5 connectors
- Molex: 2 connectors
- FDD: 1 connector
Protection Features
- OVP — Over Voltage Protection
- OCP — Over Current Protection
- SCP — Short Circuit Protection
- NLO — No-Load Operation protection
The META series also incorporates Thermal Manager, designed to adjust fan operation for an appropriate balance between cooling and noise.
Physical Specifications
Dimensions: approximately 150 mm (W) × 140 mm (D) × 86 mm (H)
Color: Black
Fan: 120 mm
Cable type: Fixed / non-modula
