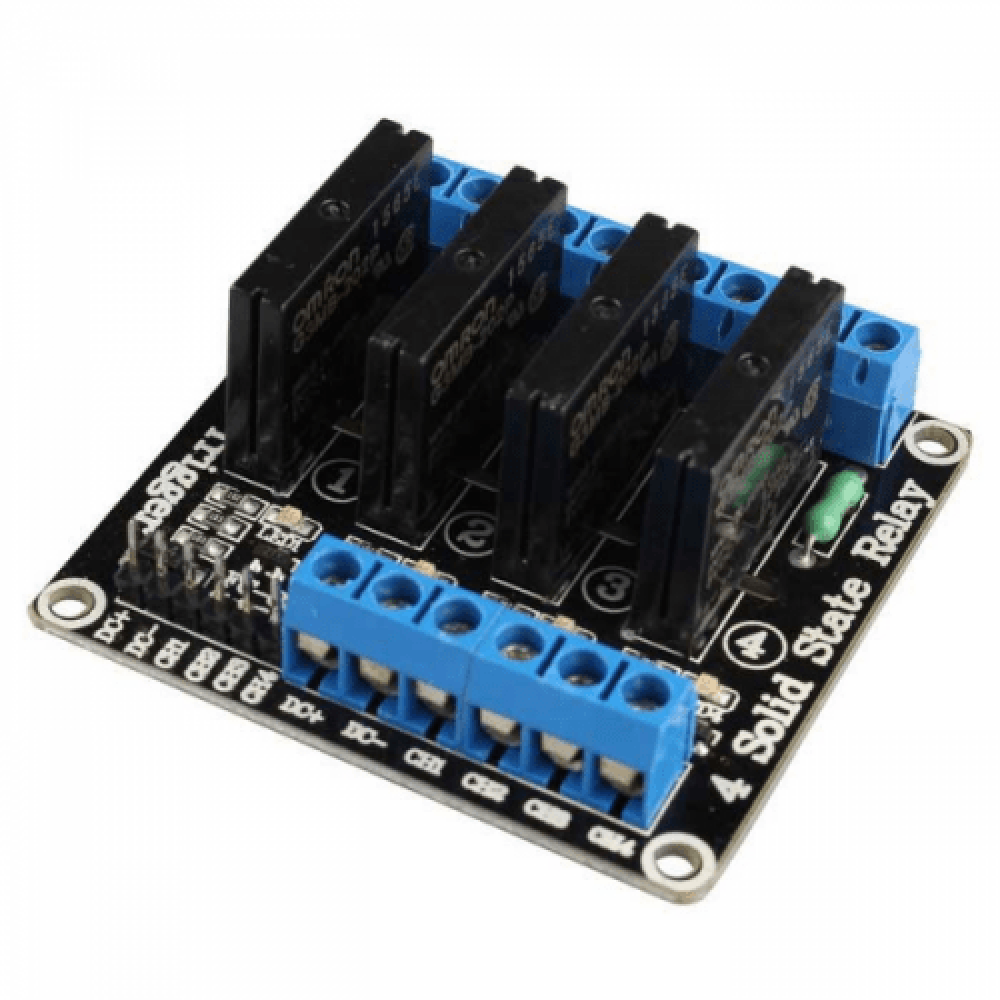

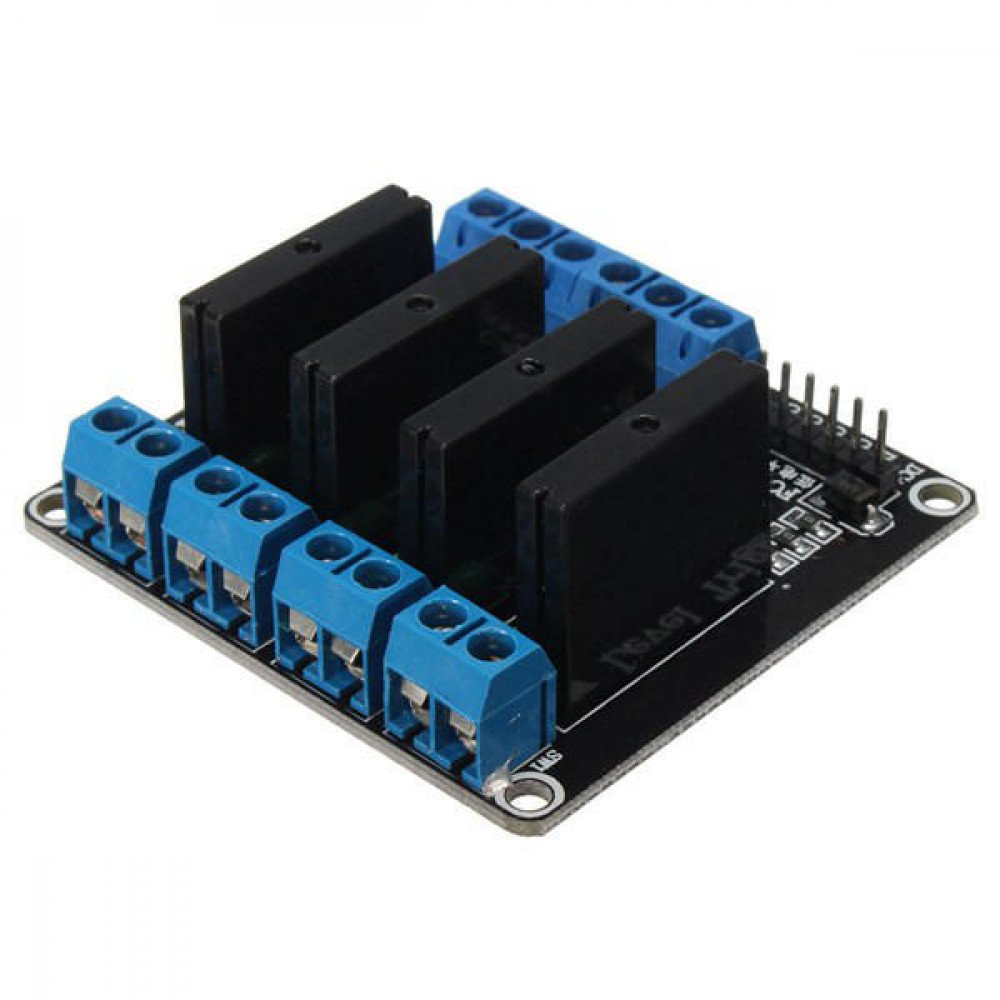

5V 4 Channel SSR Solid State Relay SSR

Description:

• 5V Omron solid state relays 240V / 2A, output with resistive fuse 240V / 2A.
• Dimensions: 57 x 55 x 25mm (length x width x height)
• Input Power: 5VDC
• Control signal input voltage: (0-2.5V low state relay ON) (3-5V state high relay OFF)
• Feature:
• Voltage:5V
• Quiescent current: 0 mA
• Operating current: 12.5mA
• Trigger Voltage: 3.3-5V
• Trigger current: 2mA
• DC +: positive power supply (according to the relay voltage supply)
• DC-: negative power supply
• CH1: relay module signal triggering end (low to trigger active)
• CH2: relay module signal triggering end (low to trigger active)
