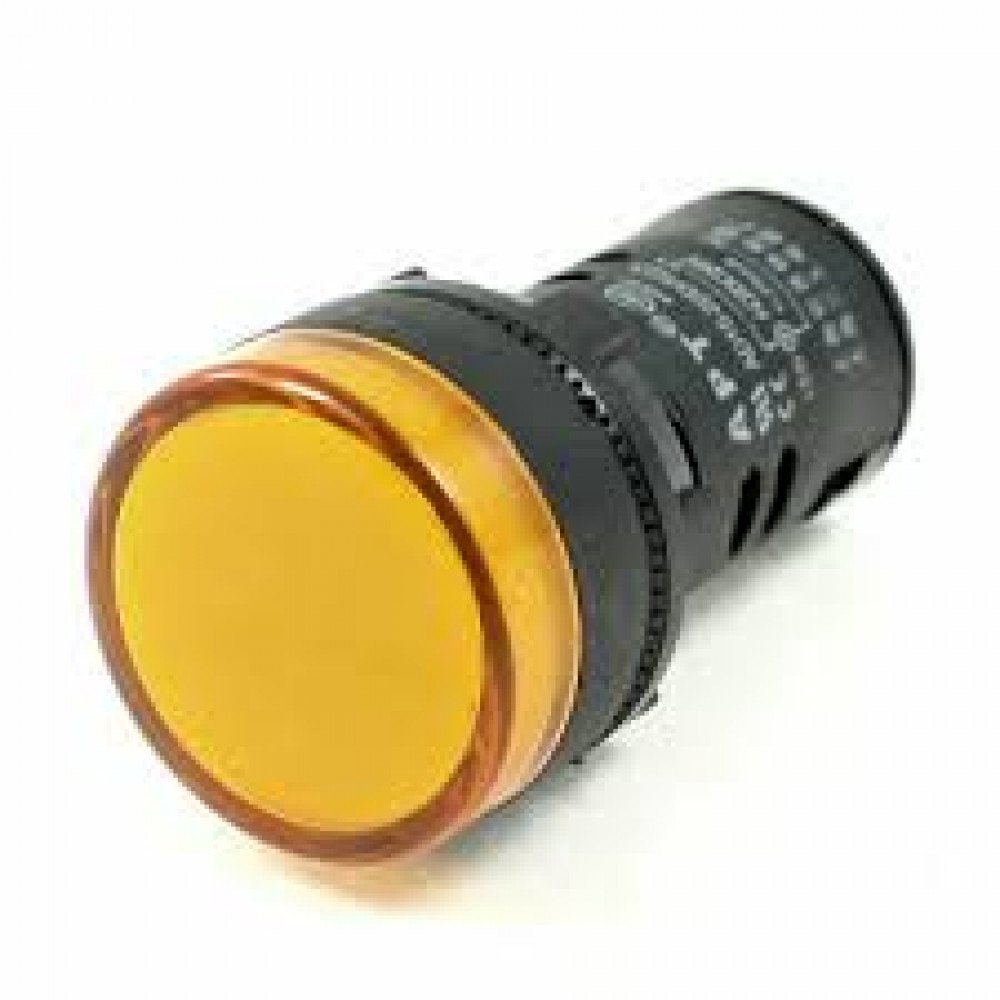

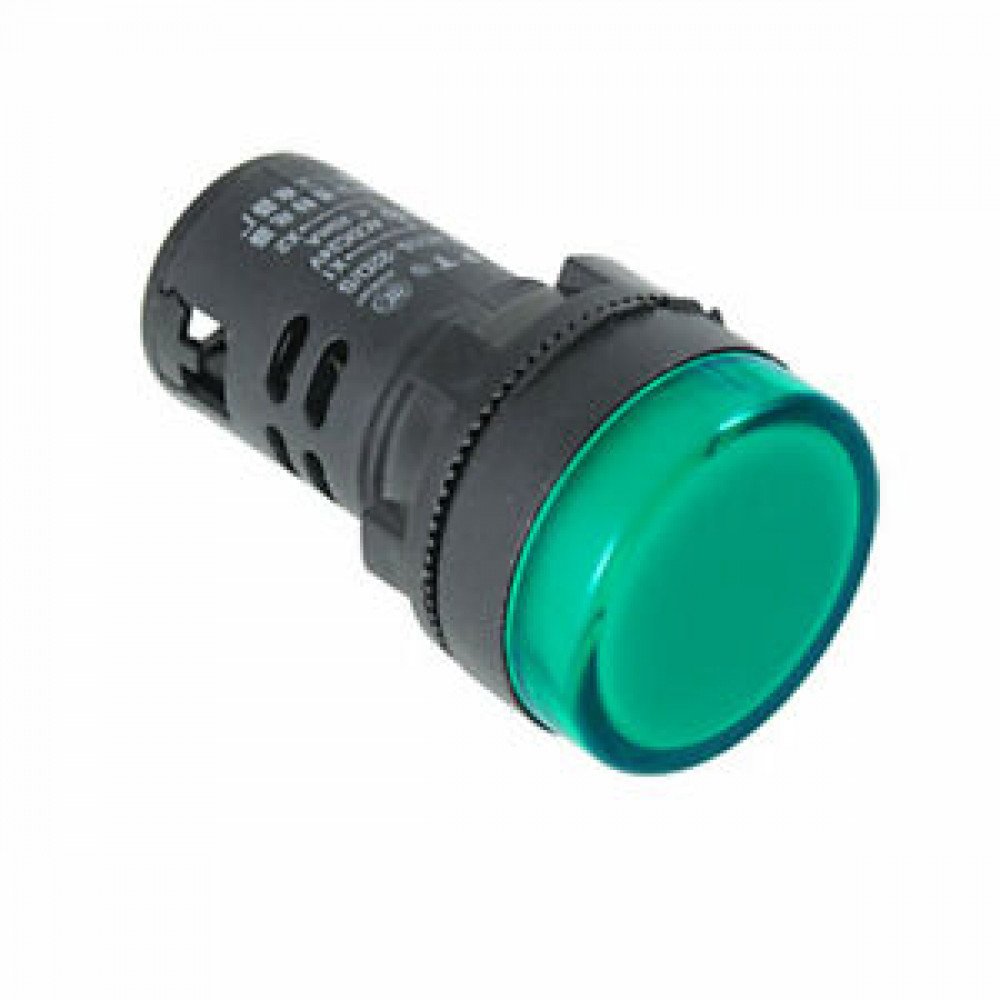

AD16-22DS 22mm 220V LED light Signal

AD16-22D indicator light

AD16 series use pure color high brightness LED light emitting chip as light source, long service life, low energy consumption, small volume, light weight, head in a variety of styles, high brightness, good reliability, beautiful shape and sophisticated manufacture, it is suitable to be used in electricity, telecommunications, machine tools, ships, textile, printing, mining machinery and other equipment line indication signal, notice signal, accident signal and other indication signal.

1.Voltage: 6V 12V 24V 36V 48V 110V 220V 380V AC/DC

2.Red / Yellow / Green / Blue / White

Working condition:

1.Operational temperature: -25~+55

2.Relative humidity: ≤98%

3.Normally workable when vibration frequency is 2-80Hz with acceleration of 0.7g.

4.Pollution degree is 3  ,the installation  category class is III

5.One with "TH" mark can work in the conditioan of moist heat

Apply to Signal lines for directions signal, anticipating signal, fault signal and any other signal, which in electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, etc.

Technical data:

1.Power frequency with stand voltage:2.5KV per minite.(effective AC value)

2.Insulation resistance: ≥2MΩ

3.Allowable voltage fluctuation:±20%

4.Continous operating life: 30000H

5.Brightness: ≥100cd/m2

6.CTI ≥ 100

7.Protective degreee of the head IP65,IP67 is available on request
