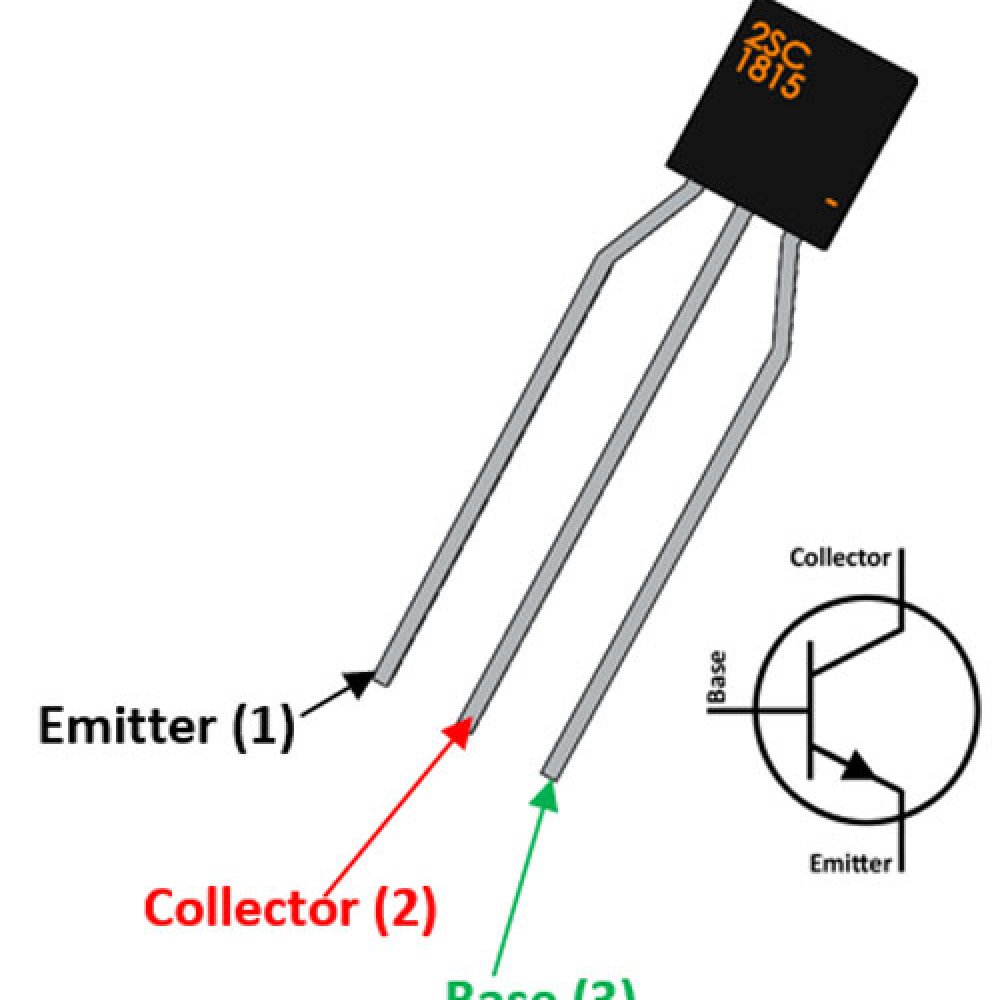

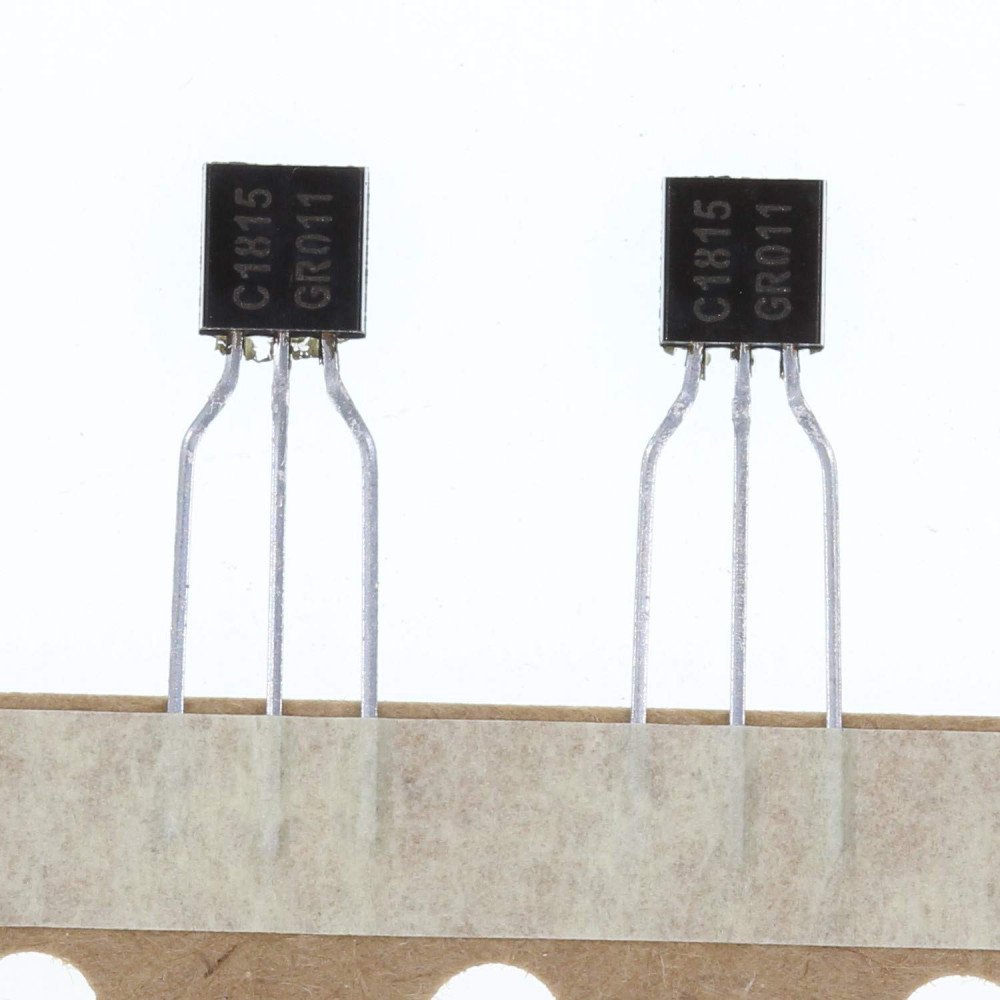

2SC1815 transistor TO-92 0.15A 50V NPN

Description :

High voltage and high current:  VCEO= 50 V (min),  IC= 150 mA (max)

•  Excellent hFElinearity : hFE (2)= 100 (typ.)  at VCE= 6 V,
   IC= 150 mA : hFE(IC= 0.1 mA)/hFE(IC= 2 mA)    = 0.95 (typ.)
•  Low noise: NF = 1dB (typ.) at f = 1 kHz
•  Complementary to 2SA1015 (O, Y, GR class)

Function : Audio Frequency General Purpose Amplifier / TO 92 Package
