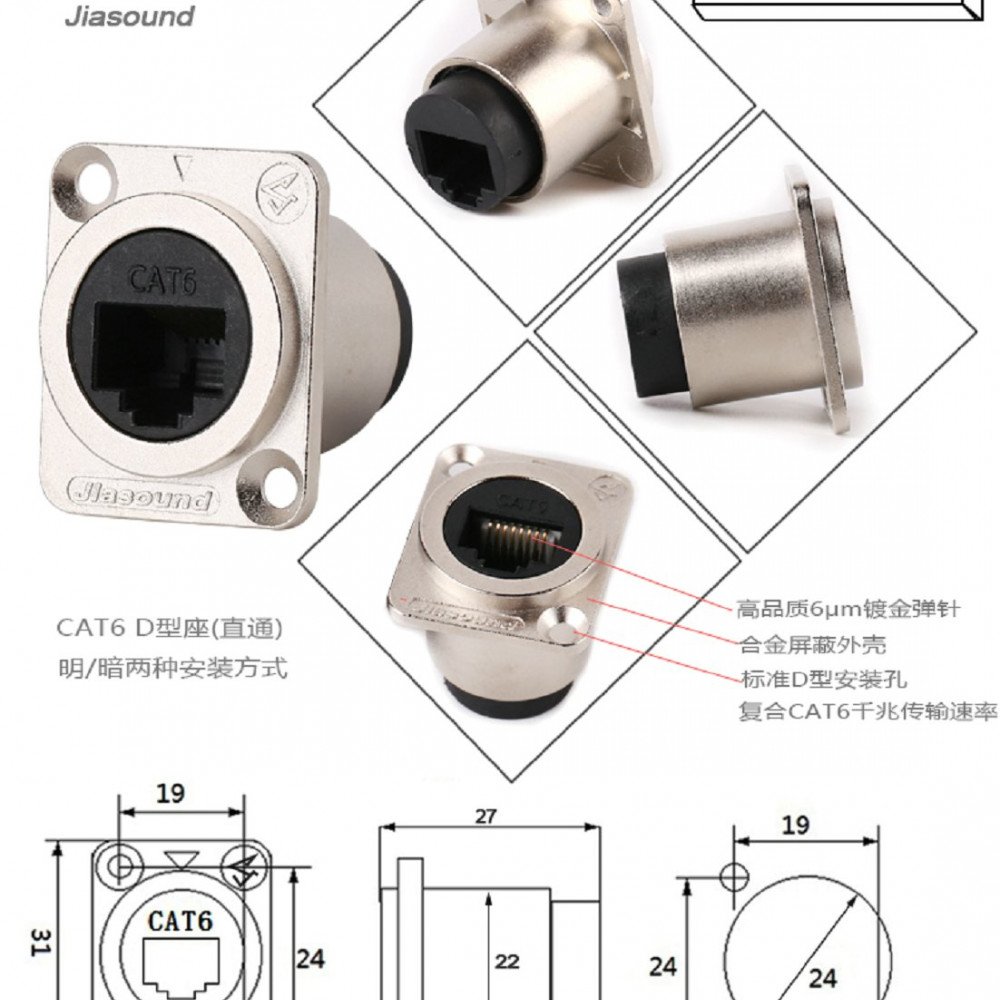

RJ45 D-type Socket Network Connector Module Metal CAT6

Features:
Simple RJ45 aviation socket around installation D type metal flange wear through the socket bayonet waterproof connection.
D-shape metal flange with the latch lock.Mounting screws included.
Shielding external electromagnetic signal interference to ensure that model transmission is not damaged.
Compatible with ADSL,hubs,switch,TV,set-top box,router,wireless device,computer.
Widely used in audio and video optical network in its base design based on industry standard panel aperture to create.
RJ45 Connector only,other accessories demo in the picture are not included!

Specification:
Type: Connectors
Current Type: Weak Current
Color: Silver+White
Plug Function: Industrial Plug
Contact Material: Bronze(CuSn8)
Insulator Material: PBTP 15% GR
Shell Material: Zinc Diecast(ZnAl4Cu1)
Size: One Size
Panel Thickness: 2.0-10mm/0.08-0.39in
Contact resistance: <10Ω
Dielectric strength: 1kVdc
Frequency range: 1-100MHz
Insulation resistance: >0.5GΩ
Rated current per contact: 1.5A
Rated voltage: 50V
