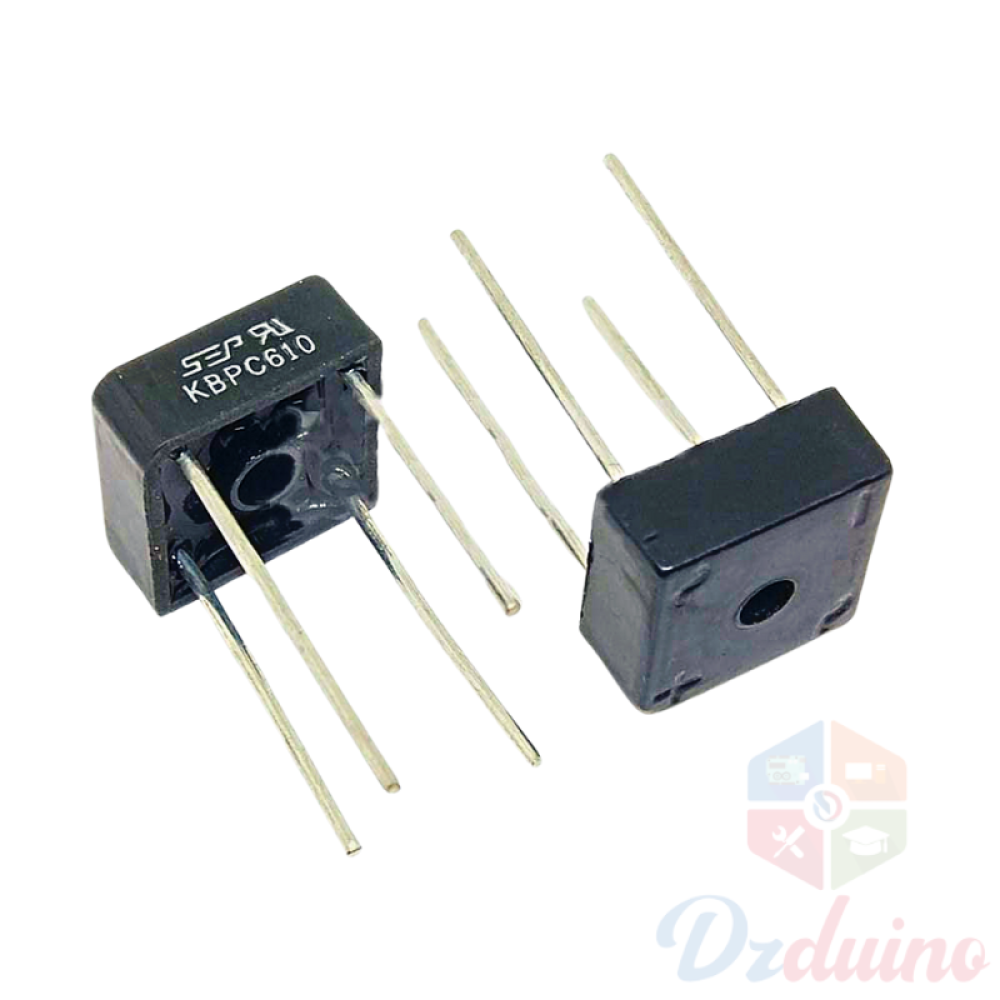

Diode bridge rectifier KBPC610 6A 1000V

Description
Average peak forward current: 6A
Bridge type: Single phase
Peak reverse repetitive voltage: 1000V
Mounting Type: Through Hole
Type of packaging: D 72
Number of pins: 4

Configuration: Single
Peak non-repetitive forward surge current: 137A
Maximum operating temperature: +150°C
Minimum operating temperature: -40°C
Peak forward voltage: 1.2 V
Peak reverse current: 10mA
Dimensions: 15.75 x 15.75 x 5.33mm
Length: 15.75mm
Height: 5.33mm
Width: 15.75mm
