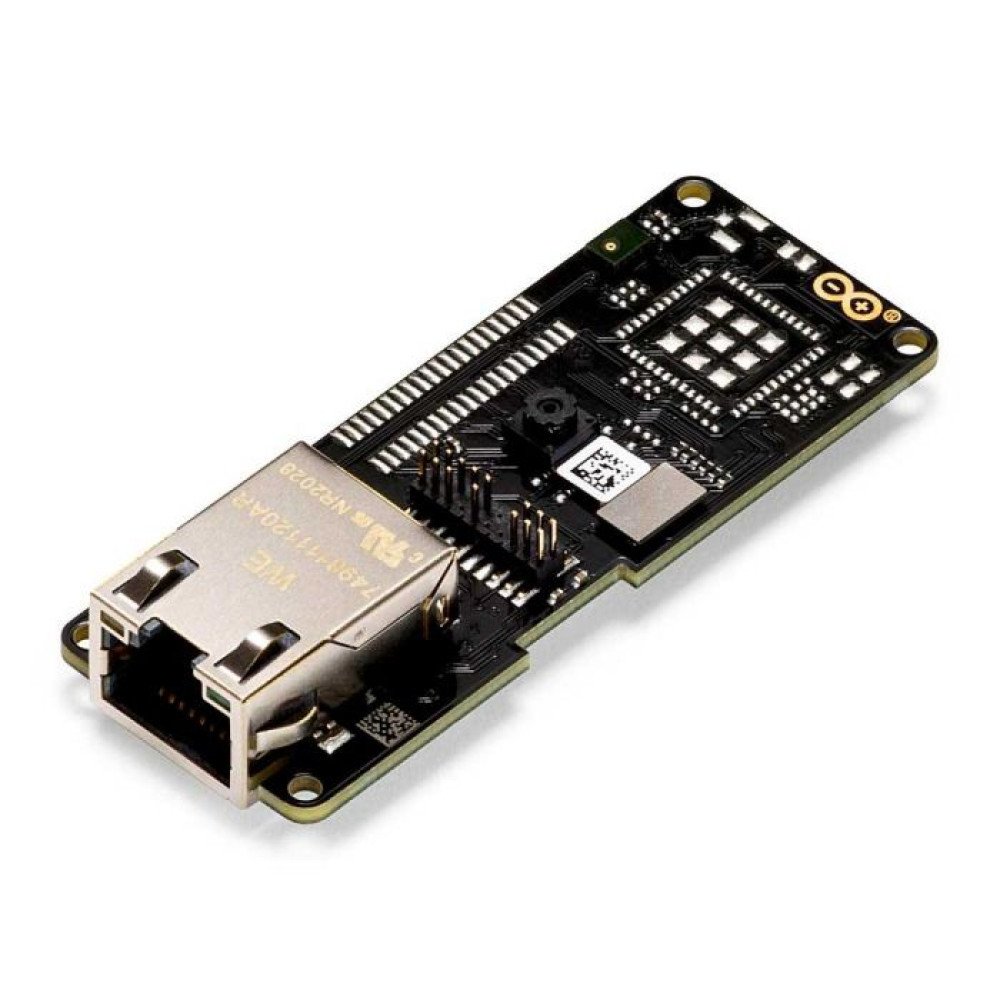

Arduino Portenta Vision Shield Ethernet

Description :

• Expansion module to add 100 Mbps Ethernet connectivity to your Arduino Portenta H7

• Built-in 320x320 pixel camera for smart vision applications

• Directional sound detection with two onboard microphones

• Easy storage and debugging with micro-SD support and JTAG connector

Features

CAMERA

• Himax HM-01B0 camera module with 320x320 pixel resolution
• Compatible with OpenMV for powerful image recognition algorithms

CONNECTIVITY

• 100 Mbps Ethernet port for stable wired connection

AUDIO

• Two MP34DT05 omnidirectional microphones for real-time audio capture and analysis

INTERFACES AND STORAGE

• Micro-SD card slot (not included) for data storage or file playback
• JTAG connector for low-level debugging and firmware updates

DIMENSIONS AND WEIGHT

• Dimensions: 66 x 25 mm
• Weight: 11 g

COMPATIBILITY

• Arduino Portenta H7

Useful resources

Schematics

Pinout
