7inch 1024 x 600 IPS Display for LattePanda V1.0

INTRODUCTION

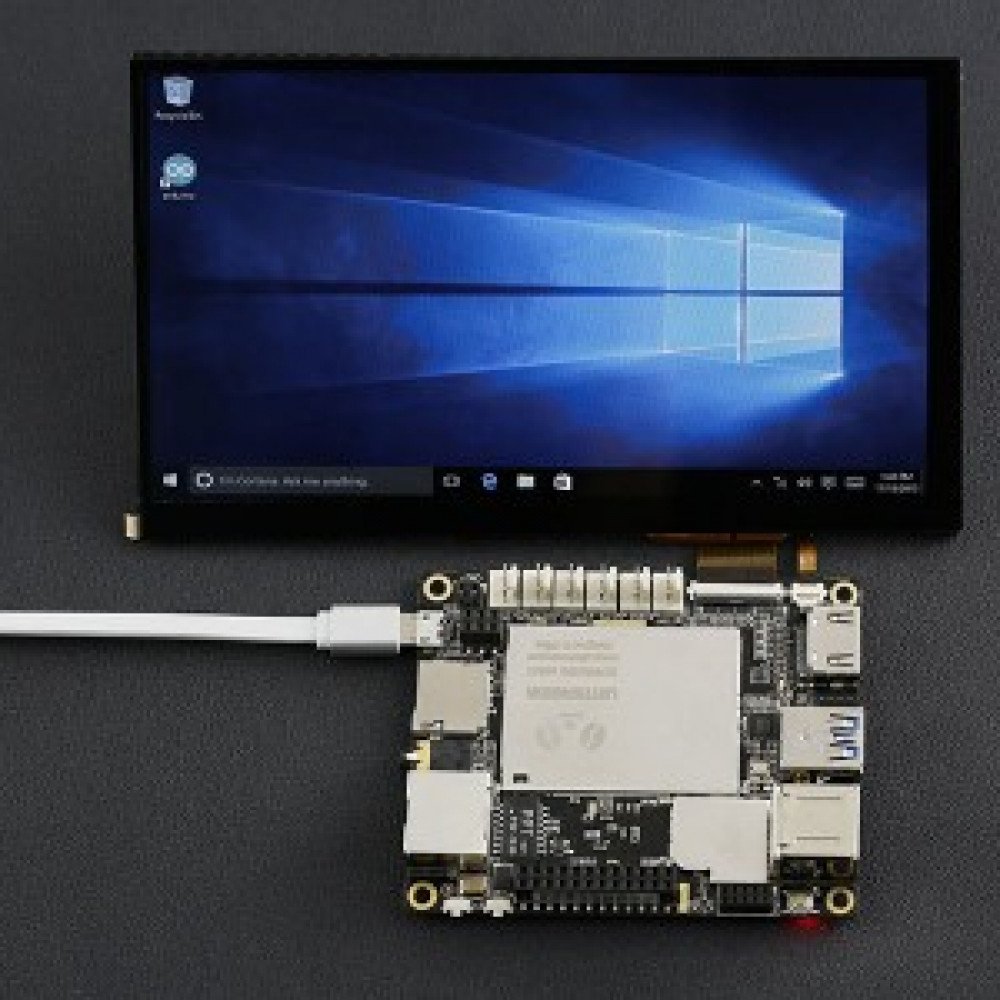

Add exciting new dimensions to your project with this large full-color display. All you need to do is power your LattePanda V1.0 single board computer (not compatible with LattePanda Alpha & Delta) and you have a visual user interface for your project - no extra power cables required! The border of the display is insulated with black tape so that even without and enclosure there is no possibility of a short-circuit. The picture below shows a LattePanda directly powering the 7" display.

Note: LattePanda uses a custom MIPI pinout that will not be compatible with alternative IPS displays! You can still use HDMI out. Use your display in conjunction with the capacitive touch panel (not included) to get a touch interface for your project!

SPECIFICATION

• 7" IPS display
• 1024 x 600 high resolution
• Dimensions: 164.0mm x 96.0mm x 2.6mm
• Supports LattePanda V1.0 (not compatible with LattePanda Alpha & Delta)
• 10cm FPC connector

SHIPPING LIST

• 7" 1024 x 600 IPS Display x 1
