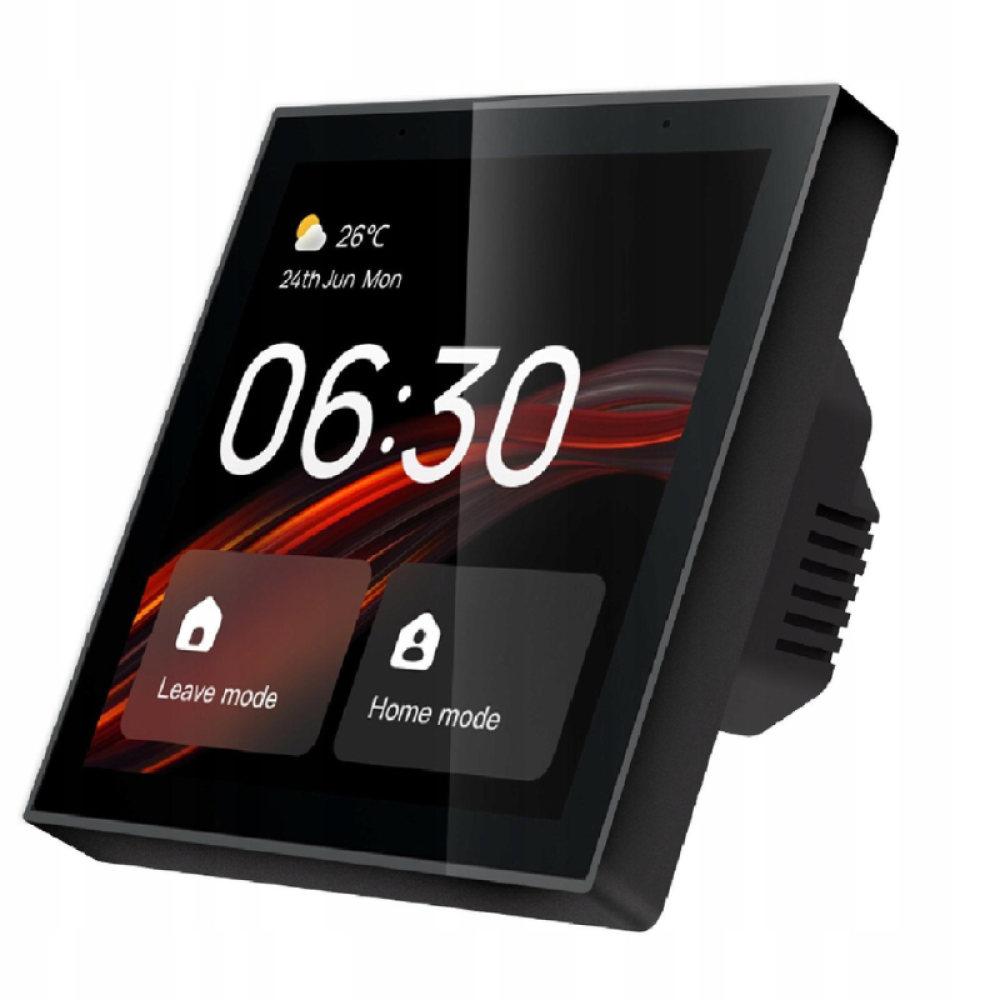

MOES CCP-TY-EU-LN – 4" Smart Home Control Panel with Built-in Zigbee Gateway & Alexa

The MOES CCP-TY-EU-LN is an all-in-one 4-inch smart home control panel designed to simplify the management of your connected home. Featuring a responsive touch screen, a built-in Zigbee gateway, Wi-Fi connectivity, and Amazon Alexa voice control, it serves as the central hub for controlling and automating your smart devices.

Powered by a Linux-based operating system, the panel delivers a fast, stable, and user-friendly experience. Easily control lights, switches, curtains, sensors, thermostats, and other Tuya-compatible devices from a single interface. Create automation scenes, monitor weather and time, and enjoy convenient hands-free control with the built-in Alexa assistant.

Key Features

• 4-inch HD LCD touch screen

• Built-in Zigbee 3.0 gateway

• Wi-Fi connectivity

• Amazon Alexa built-in for voice control

• Centralized control for Tuya smart devices

• Supports automation scenes and smart routines

• Real-time weather, date, and time display

• Auto-adjusting screen brightness

• Linux operating system for fast and reliable performance

• Wall-mounted 86-type installation

• Supports up to 100 connected smart devices

Compatibility

• Tuya Smart

• Smart Life

• Zigbee 3.0 devices

• Amazon Alexa

• Compatible with a wide range of Tuya ecosystem products including smart switches, dimmers, curtain modules, sensors, plugs, and lighting.

Technical Specifications

• Model: CCP-TY-EU-LN

• Input Voltage: 100–240V AC, 50/60Hz

• Rated Current: 74mA

• Wireless Protocols: Wi-Fi, Zigbee, Bluetooth

• Operating Temperature: 0°C to 40°C

• Operating Humidity: 5%–90% RH (non-condensing)

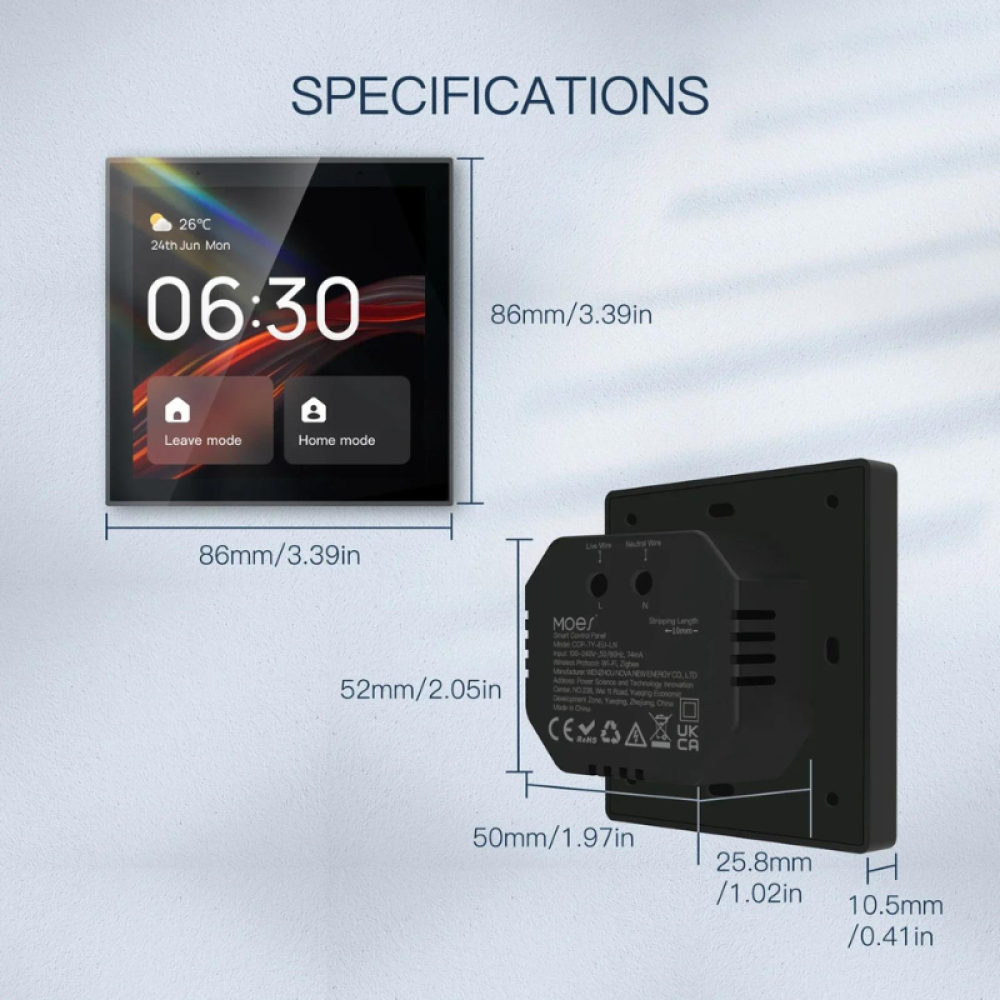

• Dimensions: 86 × 86 × 36.2 mm

Package Includes

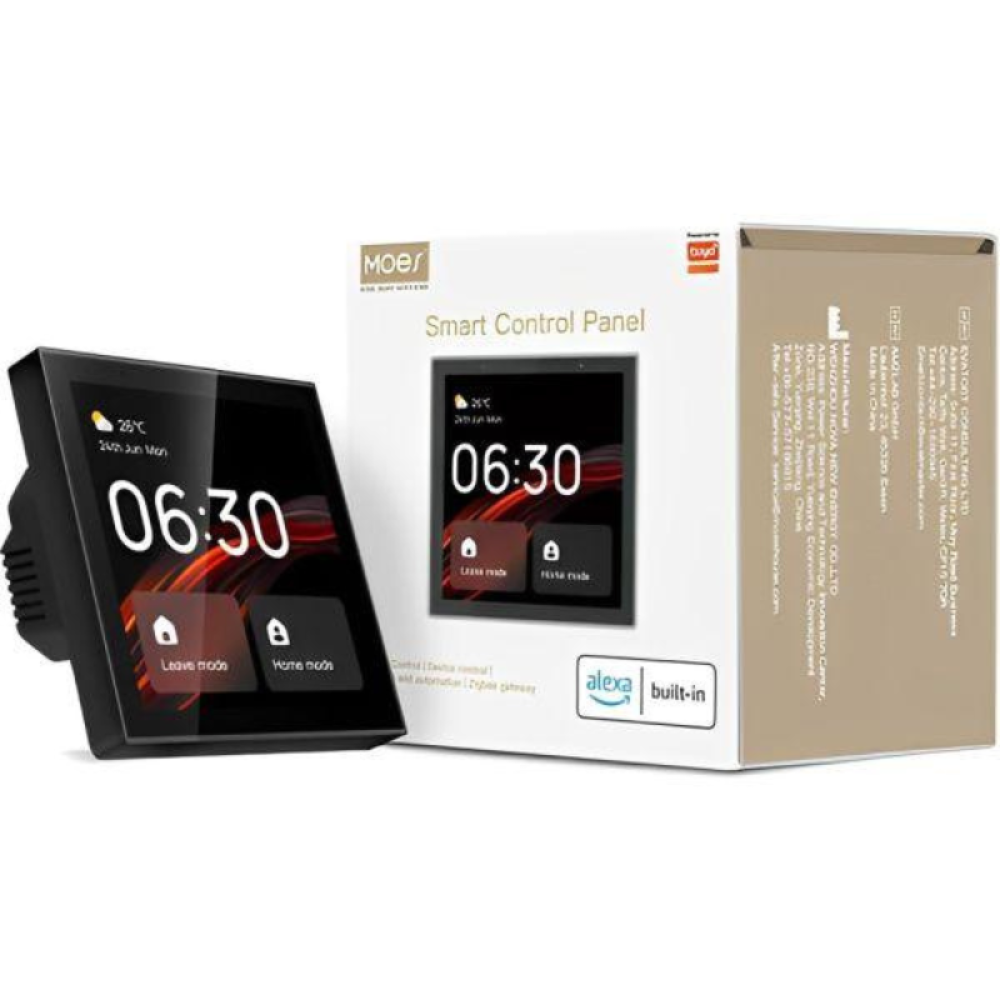

• 1 × MOES CCP-TY-EU-LN Smart Control Panel

• 1 × User Manual

• Mounting Screws

Note: The built-in Zigbee gateway allows direct connection of compatible Zigbee devices, eliminating the need for an additional Zigbee hub in most Tuya-based smart home installations.
