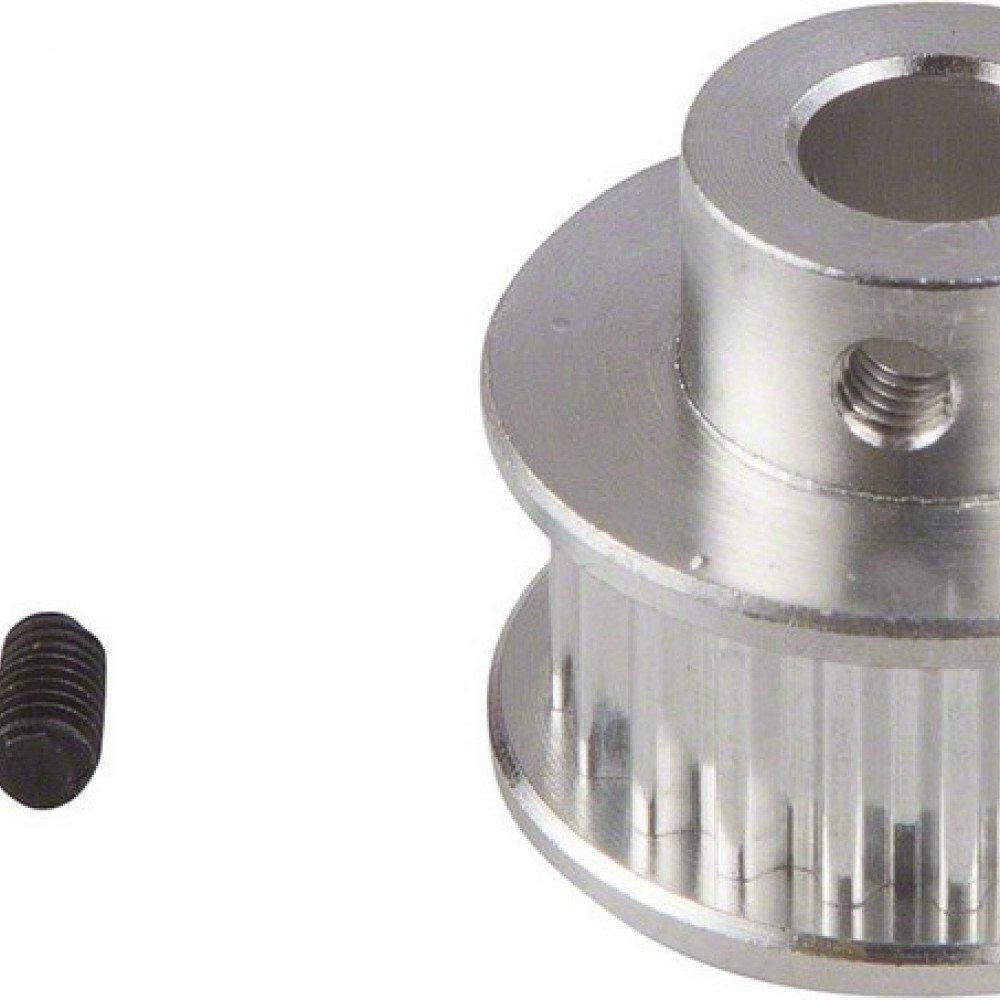

GT3 Timing Pulley ­ 20 Tooth ­ 9mm Belt 8mm bore

GT3 Timing Pulley - 20 Tooth - 9mm Belt

This is a high quality aluminum timing pulley.

It has more aggressive teeth and can be used in higher torque applications.

This pulley has a 8mm (1/4") bore size which fits the Nema 23 or Nema 23 High Toqure Stepper Motors

• Pitch: GT3 - 3mm (GT3)
• No. Of Grooves: 20
• Material: Aluminum
• Belt Width: .354 (9mm)
• Bore Size: 8mm
• Flange: 2 Flanges / With Hub
• Pitch Diameter: 0.752"
• Outside Diameter: 0.722"
• Overall Length: 0.813"
• Hub Diameter: 0.5"
• Set Screws included (M3 - 5mm - 1.5mm)

This pulley can be used with GT3 Timing Belt

View - Download 3D MODEL

Left mouse to rotate - click 3Dwarehouse to Download
