Description :

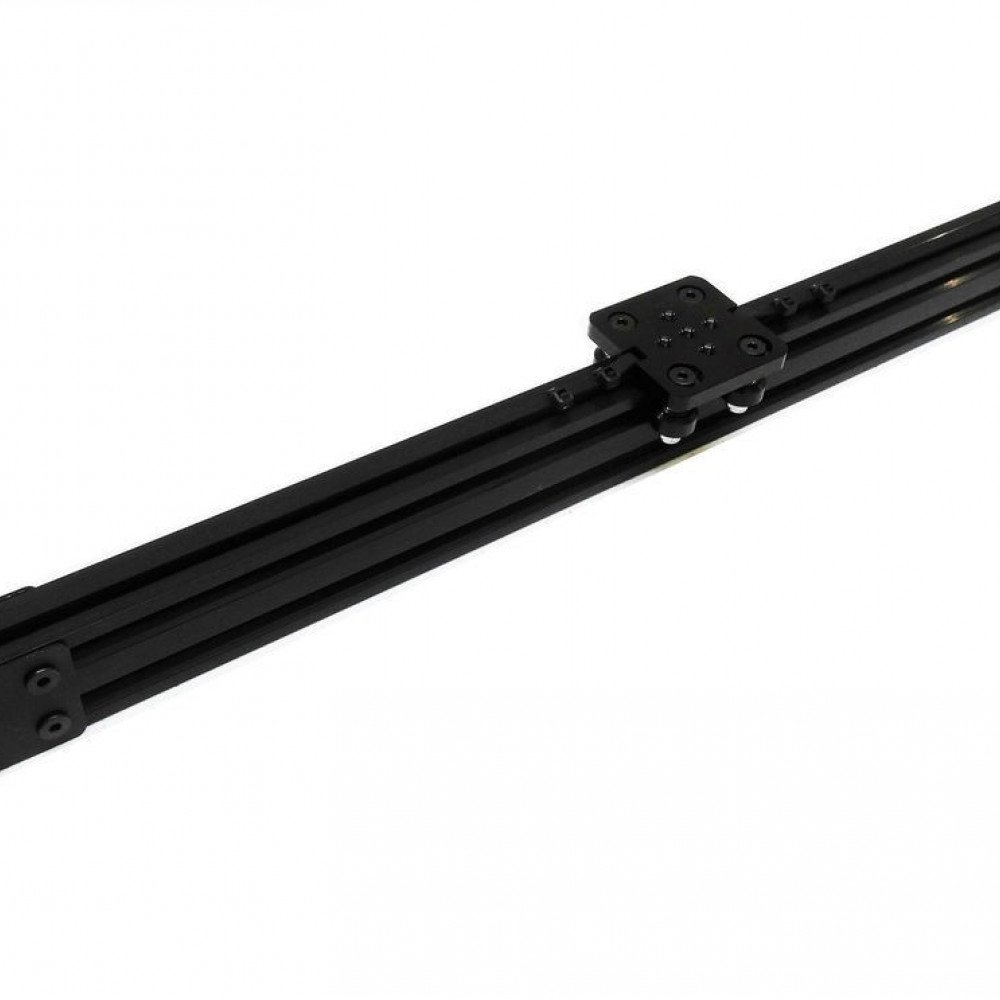

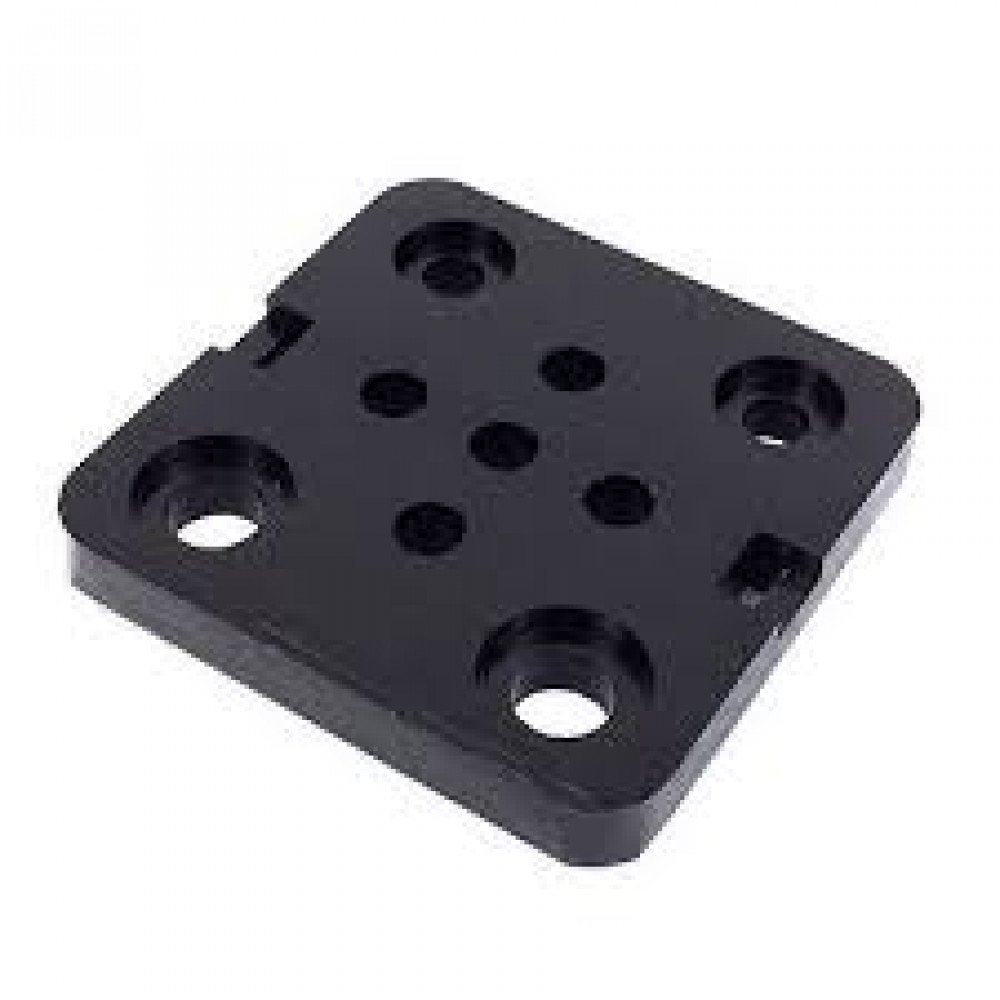

Mini V Gantry Plate

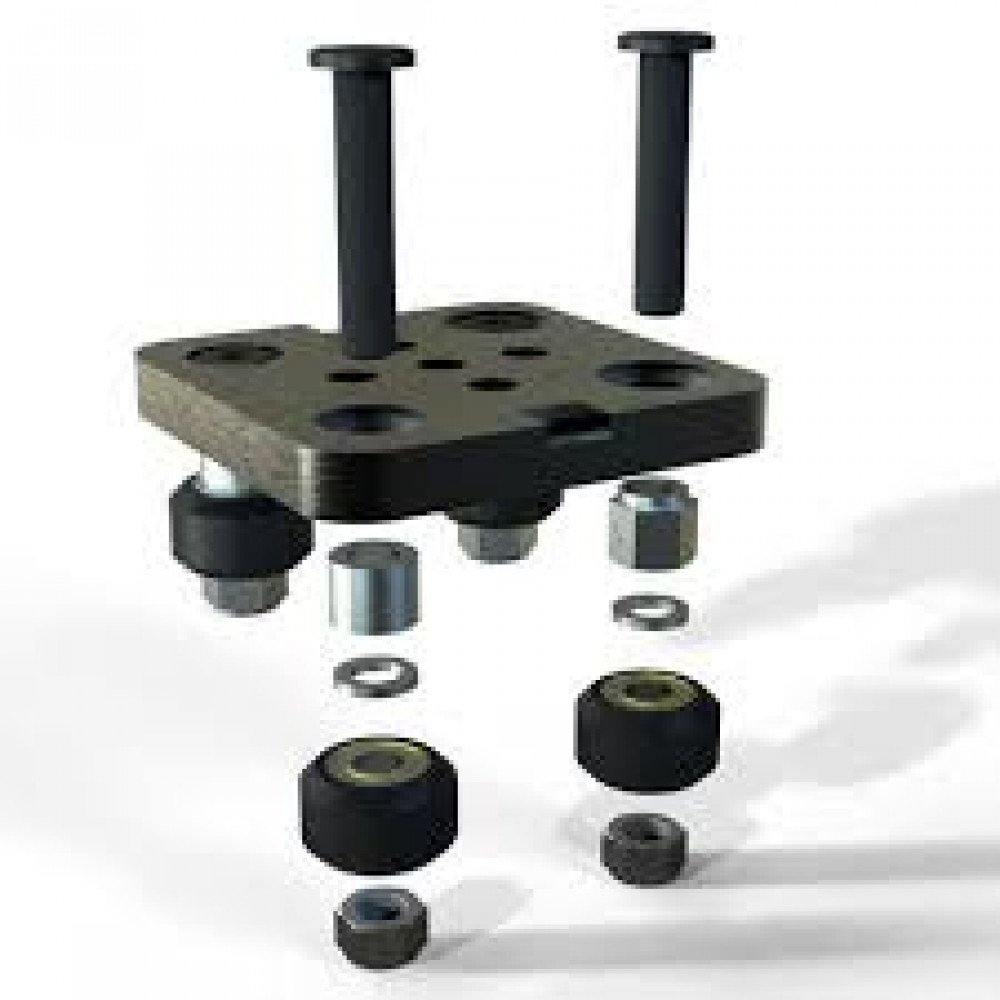

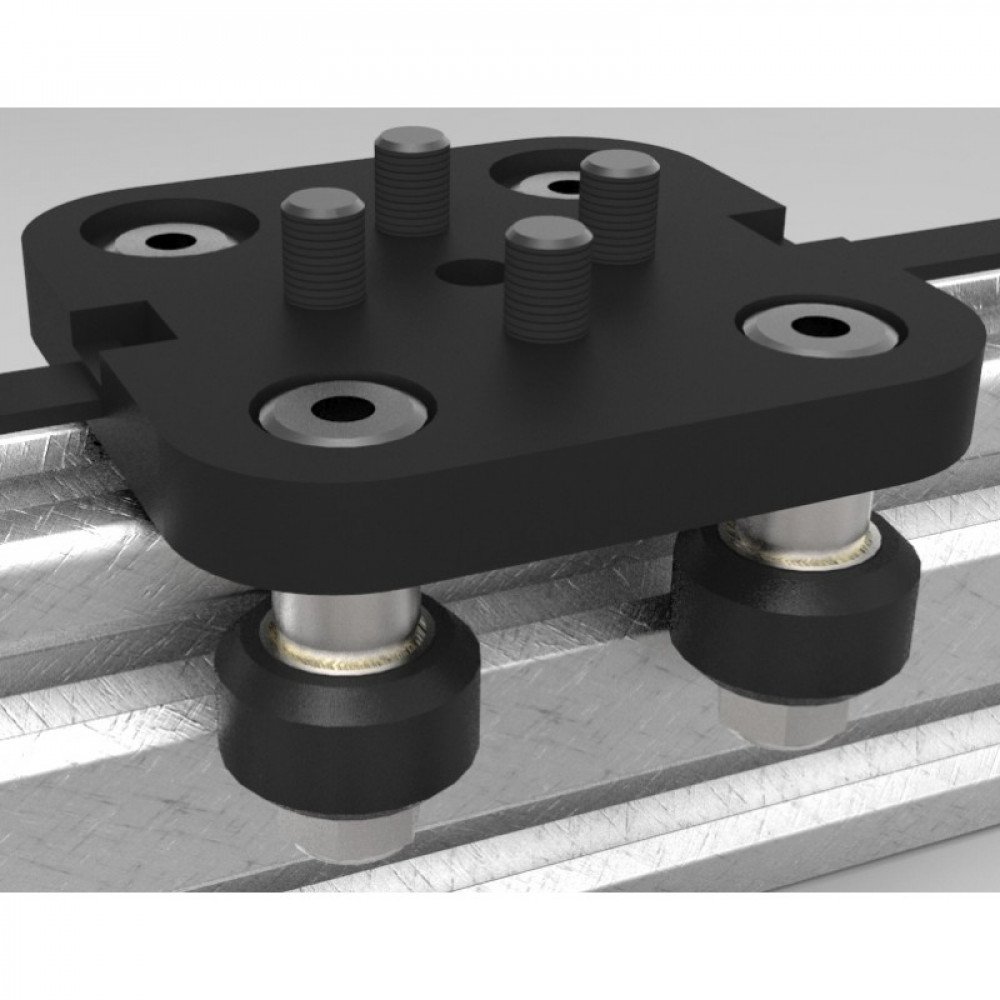

This is the awesome little plate for the Mini V linear guide system using the OpenBuilds Mini V Wheels and the Xtreme Mini V Wheels.

It's super strong and has a small form factor.

This plate has the mounting pattern to allow for end to end mounting that makes up the Mini V system. This opens the door to endless machine creation!

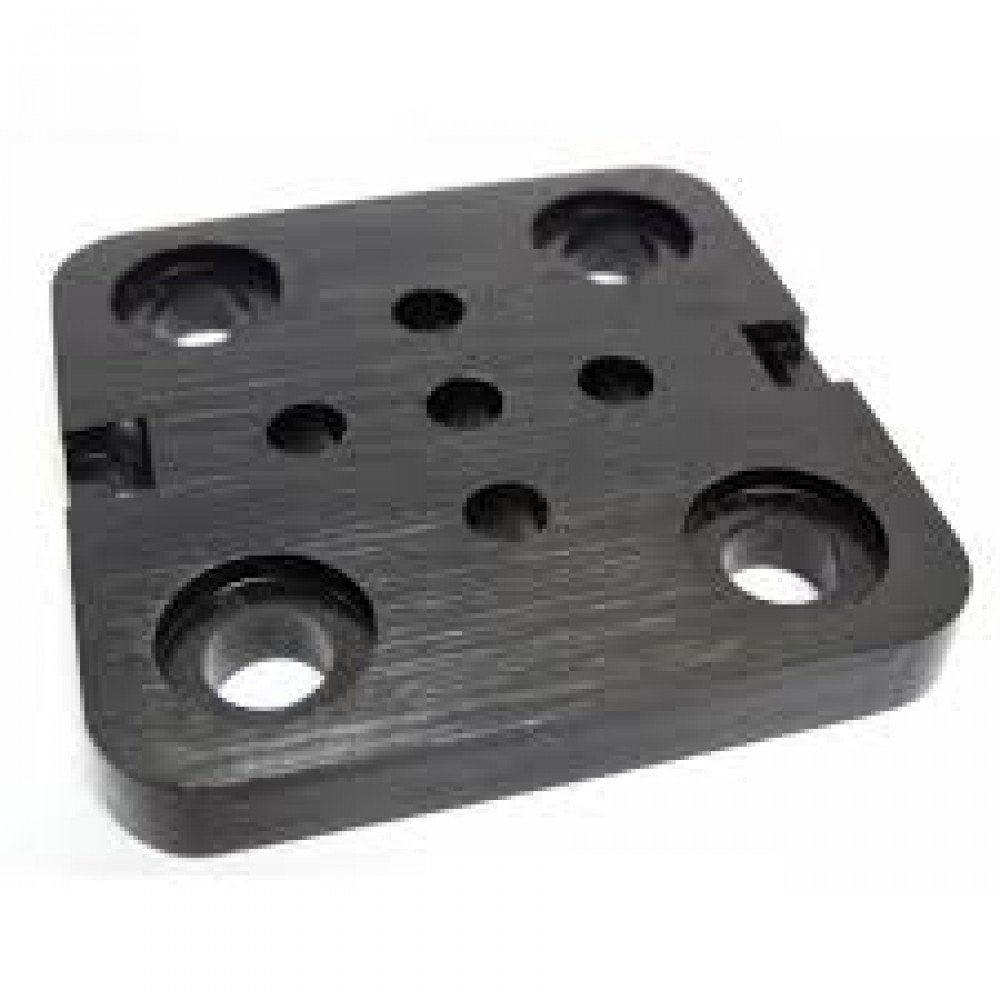

Part Details

Dimensions: 50 x 50 x 6.35mm 'thick'

6063-T6 Aluminum Black Anodized Brushed Finish

Belt loop side notched for 1/4" belt

Recessed Screw holed for post flush mount

 Download Models to use in your builds

Belt Driven mini V example models

Example Build

Models available in SketchUp and SolidWorks and other CAD formats
