Pro's Kit

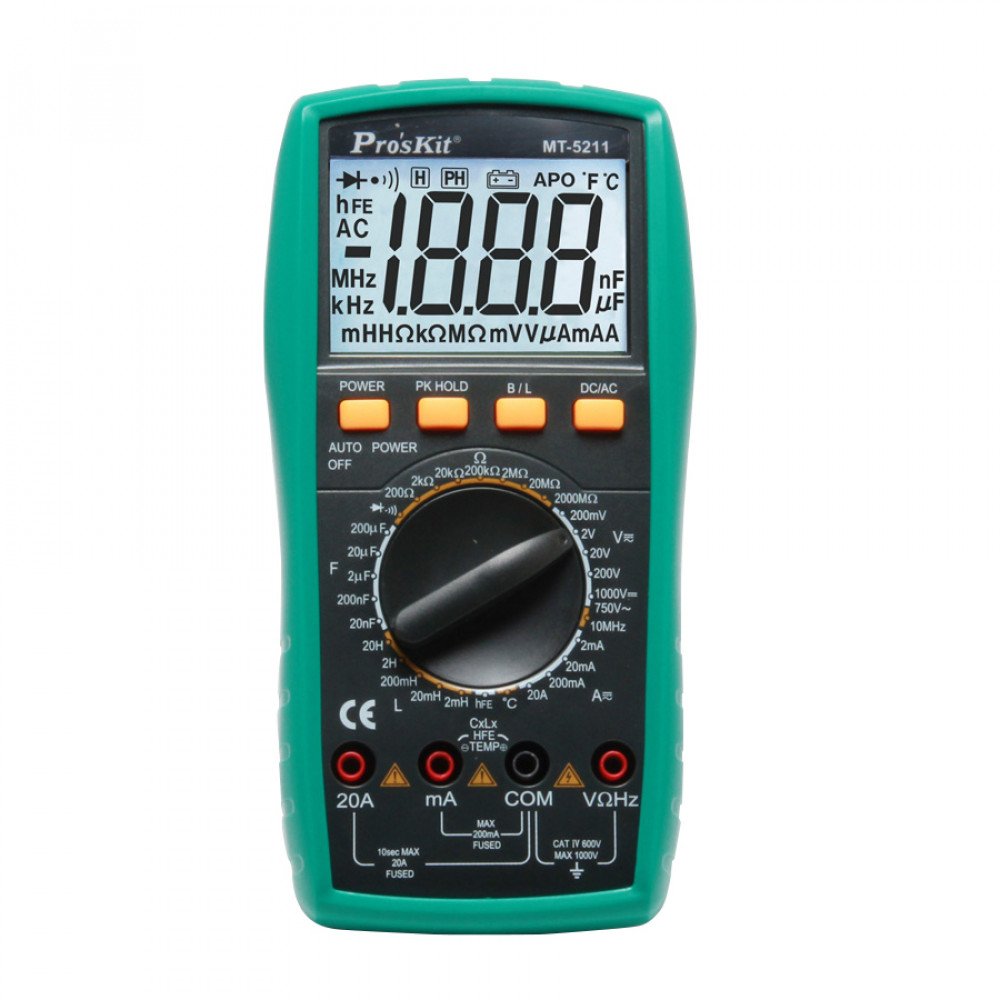

Pro'sKit MT-5211 Digital LCR Multimeter, 3-1/2"
DZD 15,500
View on seller's websitePrices and availability are updated daily. Please confirm on the seller's website before buying.
Description
3 1/2 Digit Digital LCR Multimeter
Measures Capacitance, Inductance, and Resistance
Designed to measuring AC/DC Volts, Current, Resistance, Frequency, Temperature, Continuity, Diode and Transistor.
- Versatile and Accurate
- All of its inputs are protected to CE, IEN61010-1 CAT IV 600V safety rated and overload protection ensures uninterrupted operation and long life.Dual slope A/D conversion.
- Large back-lit LCD
- LCD display with back-light makes it easy to read even in the dark.
- Extra functions
- Continuity with beep, diode test, data hold, Auto power off, Low battery indication, Overload indication, Back-light, Transistor Tester.
LCR Meter
- Inductance to 20H
- Capacitance to 200µF
- Resistance to 2000MΩ
| Specifications | |
| DC Voltage (V) | 200mV/2V/20V/200V±(0.5%+3d) 1000V±(1.0%+5d) |
| AC Voltage (V) | 200mV±(1.2%+3d) 2V/20V/200V±(0.8%+5d) 750V±(1.2%+5d) |
| DC Current (A) | 2mA/20mA±(0.8%+3d) 200mA±(1.2%+4d) 20A±(2.0%+5d) |
| AC Current (A) | 2mA/20mA±(1.0%+5d) 200mA±(2.0%+5d) 20A±(3.0%+10d) |
| Resistance (Ω) | 200±(0.8%+5d) 2K/20K/200K/2MΩ±(0.8%+3d) 20MΩ±(1.0%+15d) 2000MΩ±(5.0%(reading-10)+20d) |
| Capacitance (uF) | 20nF/200nF/2uF±(2.5%+20d) 20uF/200uF±(5.0%+5d) |
| Inductance (L) | 2mH/20mH/200mH/2H/20H±(2.5%+20d) |
| Temperature (T) | <400°±(1.0%+4d) ≥400°±(1.5%+15d) |
| Frequency (Hz) | 2k/20k/200k/2000K/10M Hz±(1.0%+10d) |
| Power source | 9V 6F22 battery |
| Dimensions | 7.4x3.8x1.4" |
LCR meters are powerful tools when you need to measure Inductance, Capacitance, and Resistance. Capacitors by nature have some inductance, some resistance, and some defects causing inefficiencies. That is what makes this meter such a powerful tool when working with capacitors.
