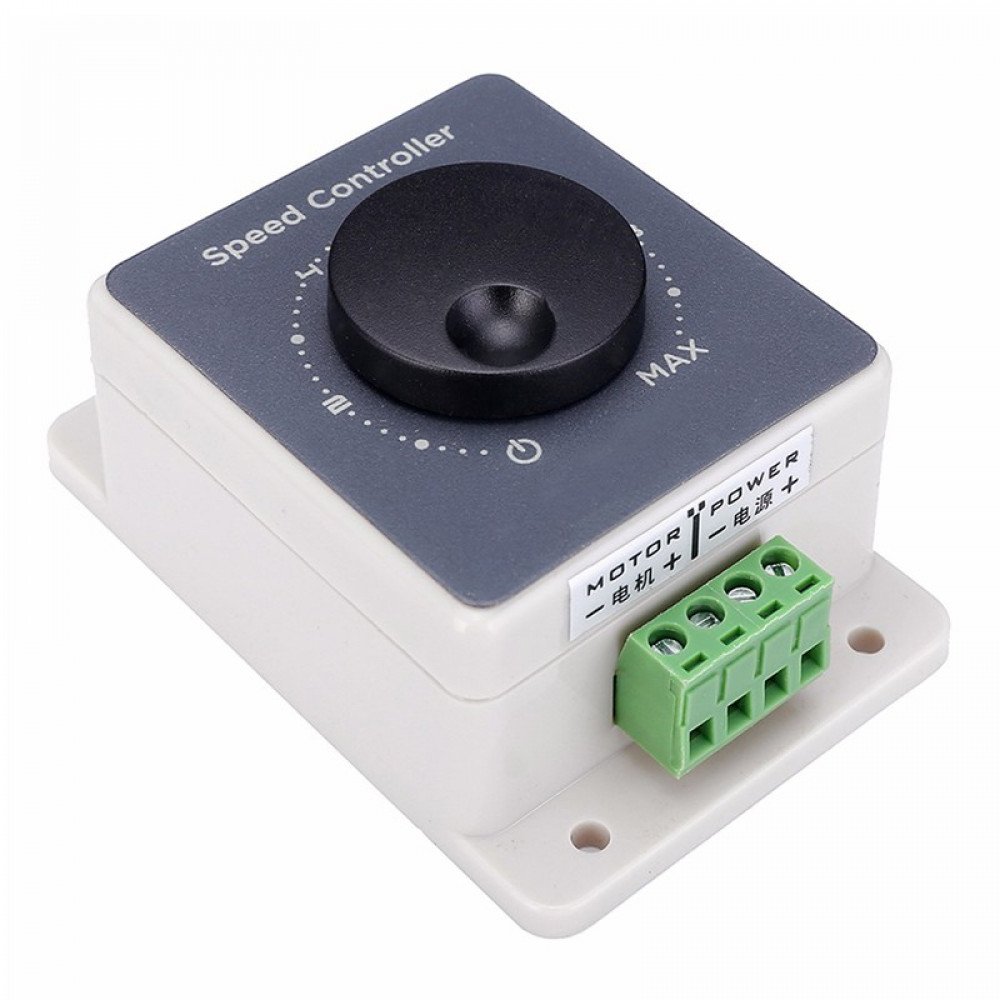

DC Motor Speed Controller Regulator DC 10-60V 10A

Description:

This is a simple and easy-to-use DC motor speed controller of small size, elegant appearance and stable performance. It is made with high quality circuit board which ensures a longer service life. The input voltage can be DC 10V to 60V and output voltage is 0-100% of the input voltage. This speed controller is quite convenient to set.

Features:

• This speed controller has a delicate and practical housing which is waterproof so you can use it out of doors.

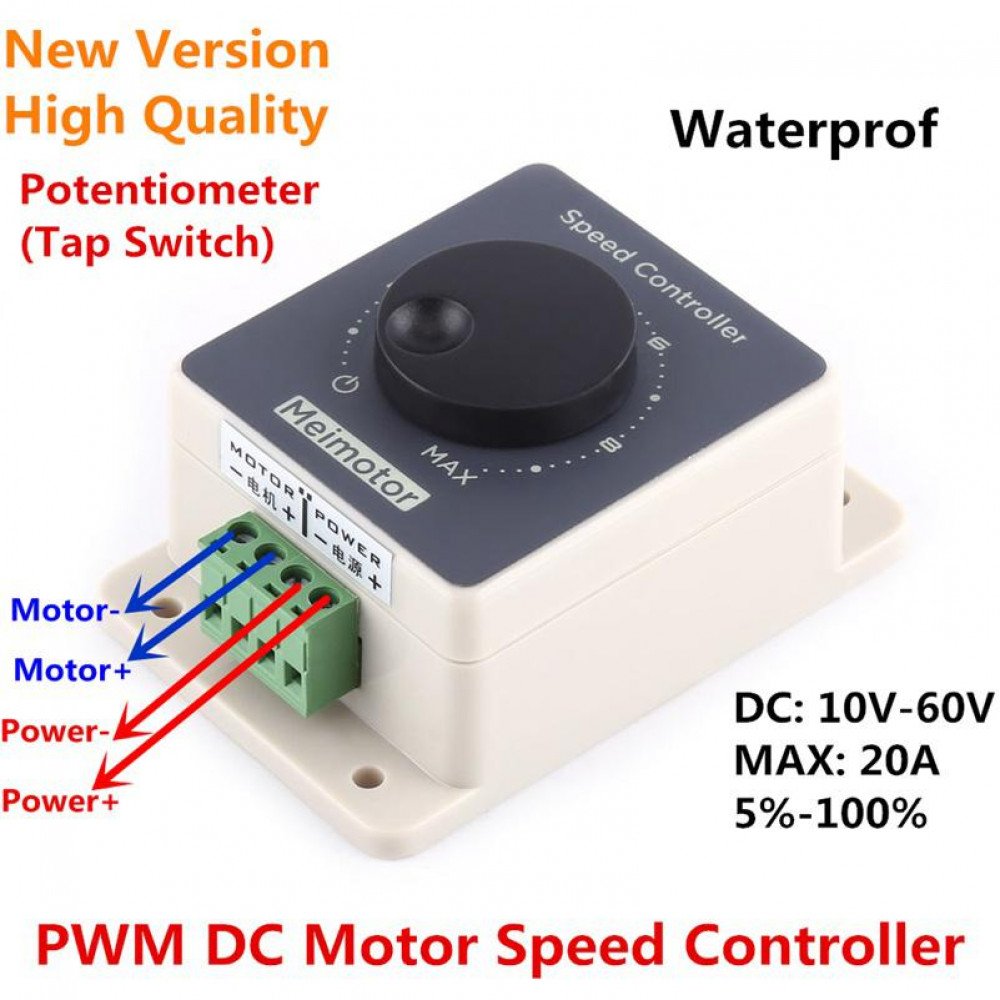

• Comes with screw terminal and a indication label of power and motor electrodes for convenient wiring.
• DC motor controller input is connected to direct current, can not be connected to alternating current, or it will be burnt.
• Make sure the positive and negative polarity is connected correctly, otherwise the controller will be damaged.
• Suitable for 12V motors with power less than 120W, 24V motors with power less than 240W, etc.

Specifications:

• Potentiometer Resistance: B100K
• Input Voltage Range: DC 10V-60V
• Output Voltage: 0-100% of the input voltage
• Control Power: 12V*10A=120W,24V*10A=240W......
• Rated Current: 10A
• Speed Range: 5%-100%
• PWM Frequency: 25Khz
• Size: 88 x 59 x 40mm / 3.46 x 2.32 x 1.57"
• Tap Hole Size: 8mm / 0.31"
