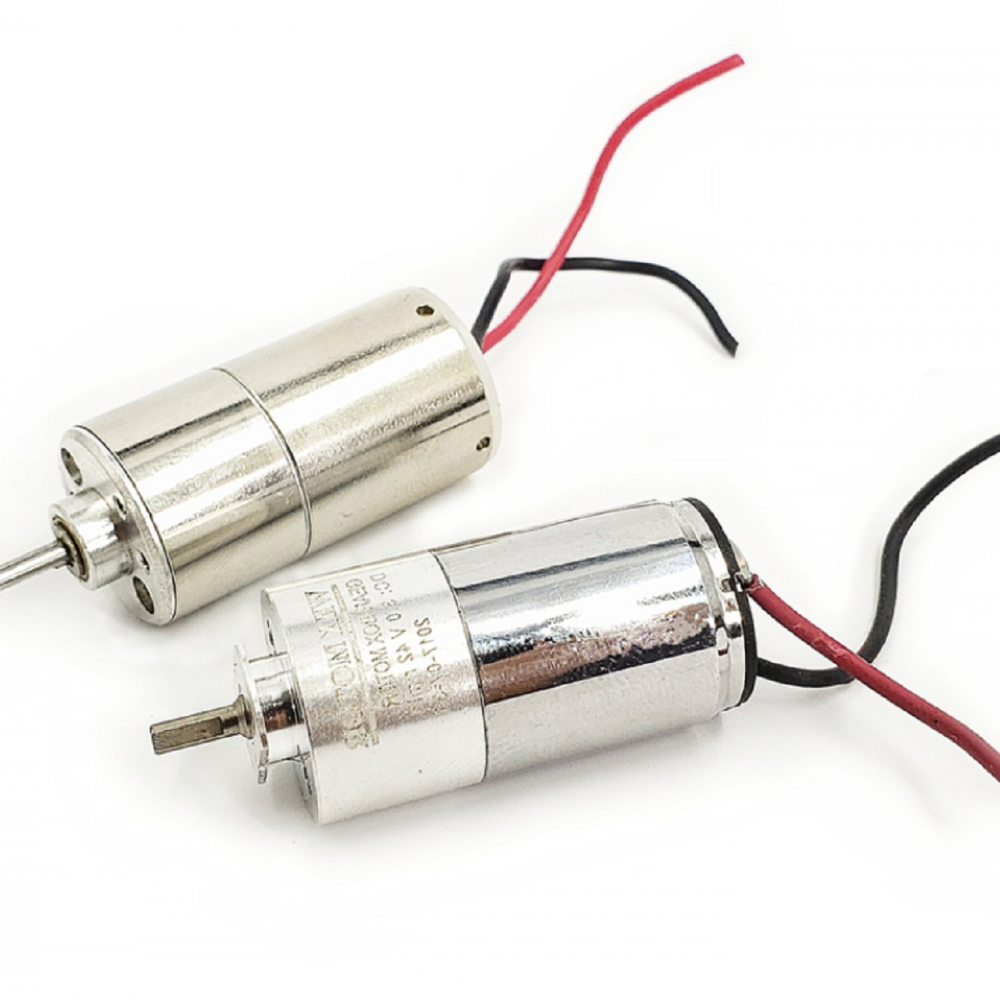

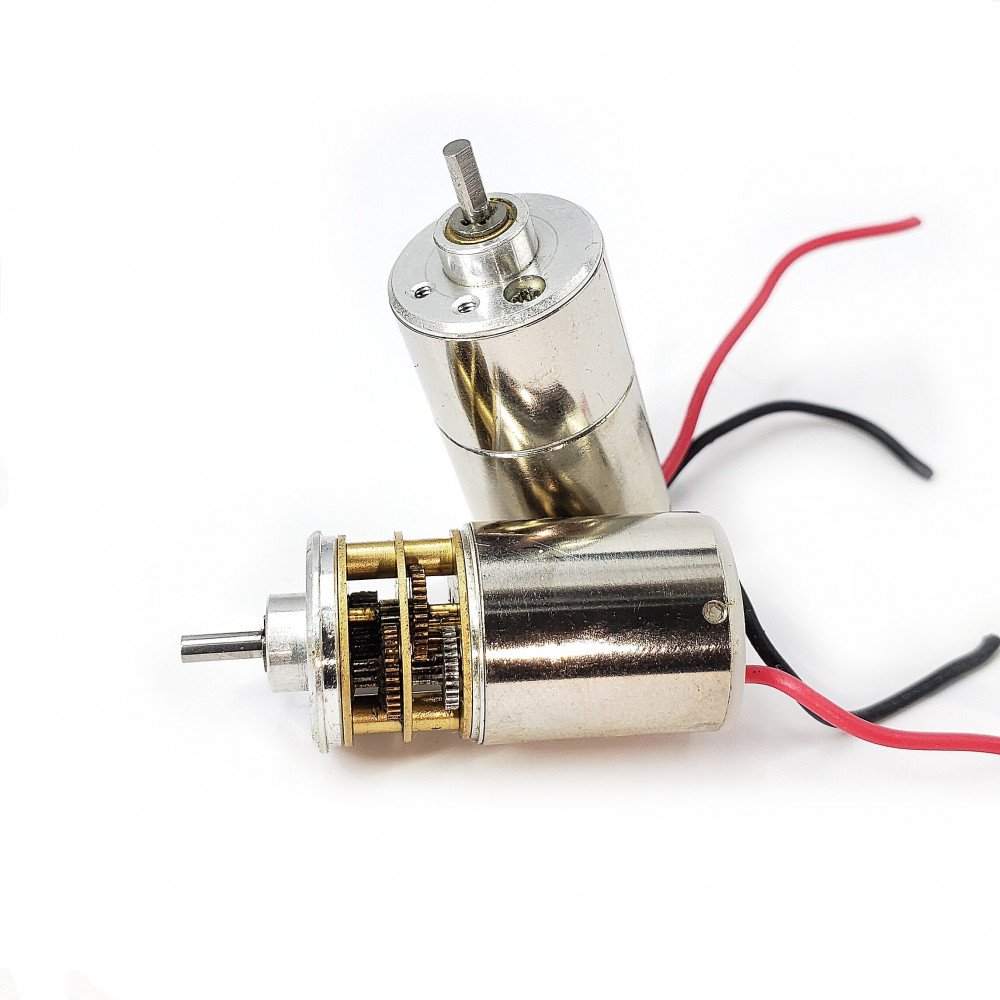

DC3V-6V Precision Coreless Gear Motor

Description :

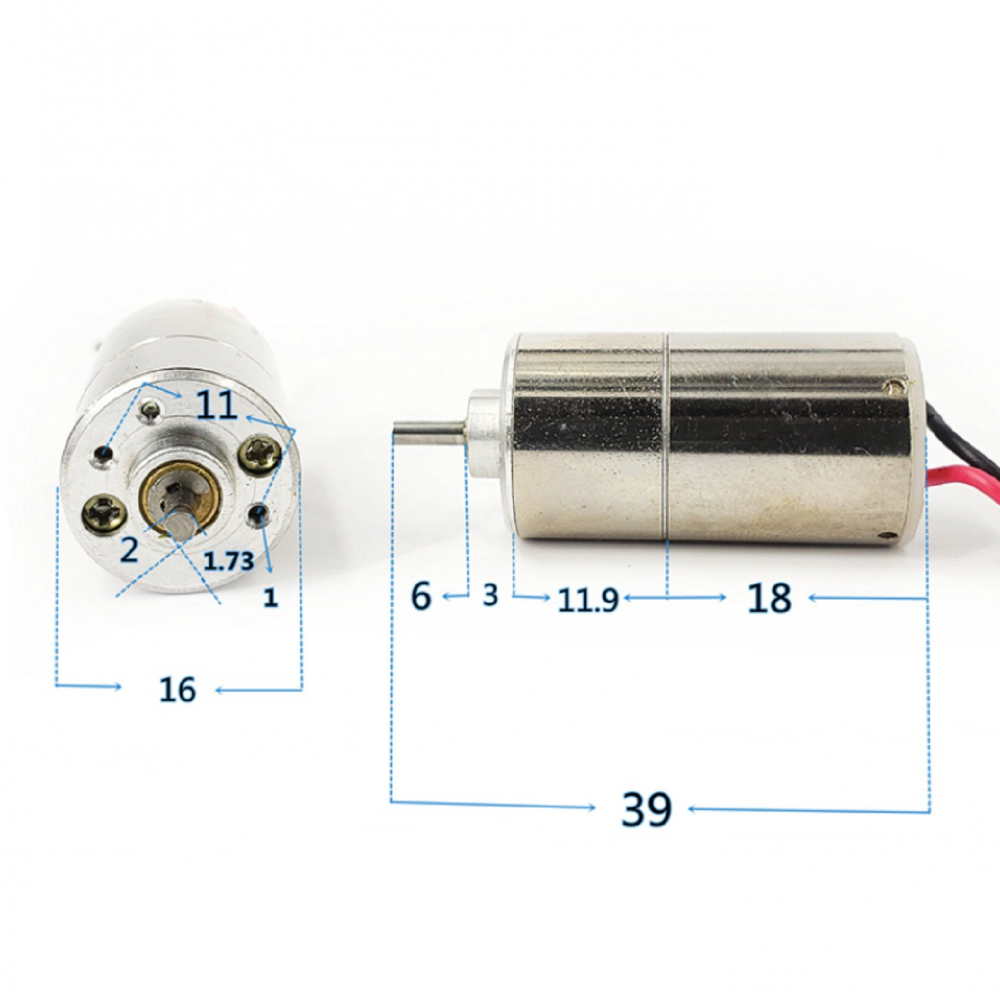

• Motor size: length 18mm, width 16mm
• Reduction gear diameter: 16mm
• Height of reduction gear box: 11.9mm
• Step diameter: 7mm
• Step height: 9mm
• Out shaft length: 6mm
• Motor shaft diameter: 2mm (flat shaft position diameter is 1.73mm)
• Fixed Aperture: 1mm
• Fixed hole distance] about 11mm
• Voltage range: 1.5-6V

Motor parameters:

• When the power is 3V, the current is 11mA, about 49 rpm
• When power is 6V, the current is 15mA, about 98 rpm
