LCD Digital Battery Capacity Indicator Voltmeter Voltage Tester 24W

LCD Digital Battery Capacity Indicator Voltmeter Voltage Tester 24W Voltage Monitor IP6505T for QC2.0/QC3.0/FCP/SCP/MTK/APPLE

1.Introduction:

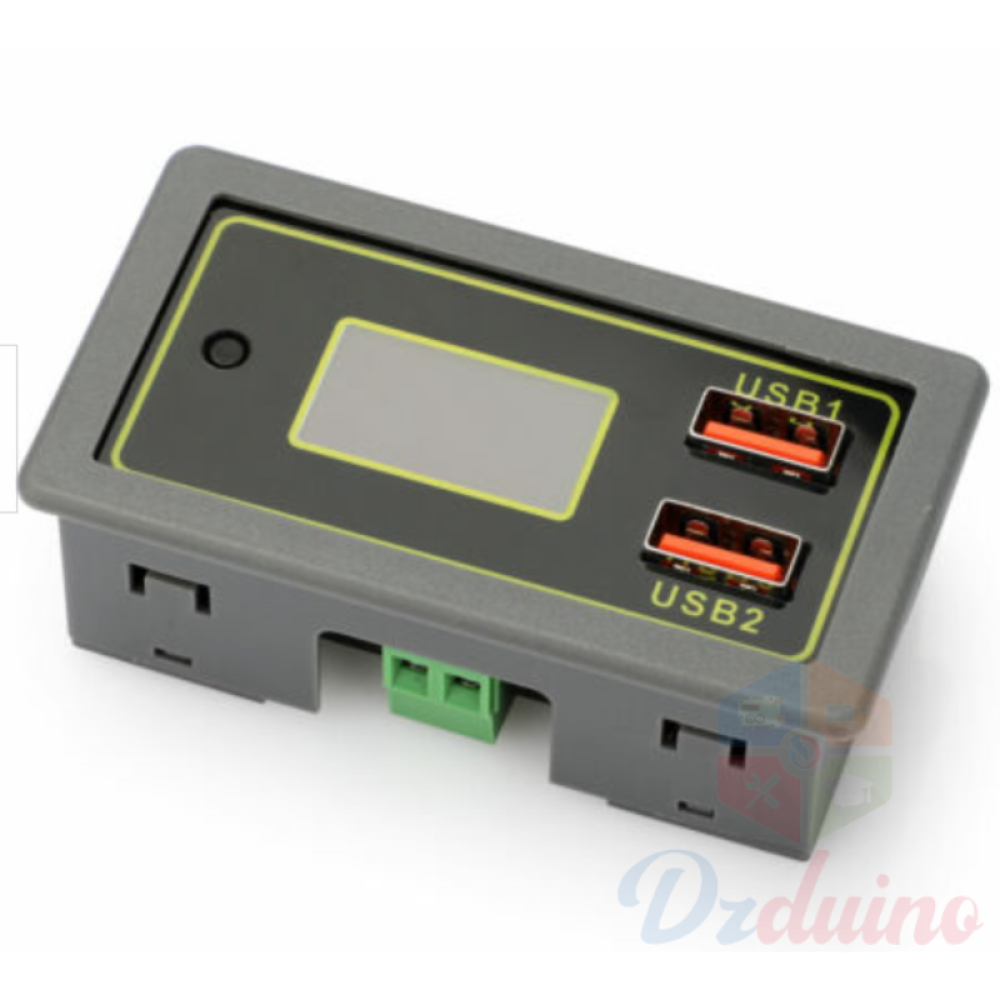

    ZK-BC is a Multiple Display Lithium Battery Capacity Indicator. It can measure voltage of different batteries and output voltage and current. It supports dual USB output with fast charging.

2.Feature:
    1>.Display Battery Voltage/Capacity/Percentage
    2>.Display USB Output Voltage/Current
    3>.Dual independent USB outputs
    4>.Support mainstream fast charge protocols
    5>.Support input reverse connection protection
    6>.Support 3.7V Ordinary Lithium Battery
    7>.Support 3.2V Lithium Iron Phosphate Battery
    8>.Support 12V Lead-Acid Battery
    9>.IP6505T Fast charge recognition controller
    10>.Programmable
    11>.Step Down output
    12>.Support output over current
    13>.Support output short circuit protection

3.Parameter:
    1>.Name:ZK-BC Multiple Display Lithium Battery Capacity Indicator
    2>.Model:ZK-BC
    3>.Work Voltage:DC 6V-30V
    4>.Output Voltage:DC 5V(Default and output 3V-12V automatically when trigger fast charge)
    5>.Output Power:24W(Max)
    6>.Output Current(Max):4A at 5V; 2.5A at 9V; 2A at 12V;
    7>.Conversion Efficiency:97%(Max)
    8>.Support Fast Charge Protocol:QC2.0/QC3.0/FCP/SCP/MTK/APPLE
    9>.Work Temperature:-40℃~85℃
    10>.Work Humidity:0%~95%RH
    11>.Size(Installed):79*43*26mm

4.Set Parameter:
    1>.It can be used to measure 1pcs~2pcs 12V Lead-Acid Battery and 2pcs~7pcs 3.7V Ordinary Lithium Battery and 2pcs~8pcs 3.2V Lithium Iron Phosphate Battery.
    2>.User need set battery type and number of batteries before measured.
    3>.Multiple batteries need to be connected in series.
    4>.Short press button:Turn ON/OFF display backlight.
    5>.Set Battery Type and number of batteries:
        5.1>.Keep press button about 3second enter into select Battery Type.
        5.2>.Short press button to change Battery Type.There are three Battery Type:
            5.2.1>.Pb12V: It is used to measure 12V Lead-Acid Battery.
            5.2.2>.Li3.7V: It is used to measure 3.7V Ordinary Lithium Battery such as 18650 battery.
            5.2.3>.Fe3.2V: It is used to measure 3.2V Lithium Iron Phosphate Battery.
        5.3>.Keep press button about 3second after selected Battery Type and enter into select number of batteries.
        5.4>.Short press button to change number of batteries.The number of batteries that can be connected varies with different Battery Type:
            5.4.1>.Pb12V: It can select 1S or 2S. It means it can measure 1pcs~2pcs 12V Lead-Acid Battery in series.
            5.4.2>.Li3.7V: It can select 2S~7S. It means it can measure 2pcs~7pcs 3.7V Ordinary Lithium Battery in series.
            5.4.3>.Fe3.2V: It can select 2S~8S. It means it can measure 2pcs~8pcs 3.2V Lithium Iron Phosphate Battery in series.
        5.5>.Keep press button about 3second to save parameters and exit.

5.Battery Capacity Indicator:
    1>.12V Lead-Acid Battery:The rated voltage of the battery is 12V and the maximum voltage after charging is 13.8V~14.5V.
    2>.3.7V Ordinary Lithium Battery:The rated voltage of the battery is 3.7V and the maximum voltage after charging is 4.2V.
    3>.3.2V Lithium Iron Phosphate Battery:The rated voltage of the battery is 3.2V and the maximum voltage after charging is 3.7V.
    4>.The battery symbol has a total of seven segments. Different voltages have different display segments.
    5>.12V Lead-Acid Battery(N means number of batteries.It can be 1 or 2):
        5.1>.Display 1 indicators if battery voltage is more than N*10.8V+/-1%.
        5.2>.Display 2 indicators if battery voltage is more than N*11.2V+/-1%.
        5.3>.Display 3 indicators if battery voltage is more than N*11.5V+/-1%.
        5.4>.Display 4 indicators if battery voltage is more than N*11.8V+/-1%.
        5.5>.Display 5 indicators if battery voltage is more than N*12.2V+/-1%.
        5.6>.Display 6 indicators if battery voltage is more than N*12.5V+/-1%.
        5.7>.Display 7 indicators if battery voltage is more than N*12.8V+/-1%.
    6>.3.7V Ordinary Lithium Battery(N means number of batteries.It can be 2~7):
        6.1>.Display 1 indicators if battery voltage is more than N*3.21V+/-1%.
        6.2>.Display 2 indicators if battery voltage is more than N*3.31V+/-1%.
        6.3>.Display 3 indicators if battery voltage is more than N*3.48V+/-1%.
        6.4>.Display 4 indicators if battery voltage is more than N*3.61V+/-1%.
        6.5>.Display 5 indicators if battery voltage is more than N*3.73V+/-1%.
        6.6>.Display 6 indicators if battery voltage is more than N*3.86V+/-1%.
        6.7>.Display 7 indicators if battery voltage is more than N*3.97V+/-1%.
    7>.3.2V Lithium Iron Phosphate Battery(N means number of batteries.It can be 2~8):
        7.1>.Display 1 indicators if battery voltage is more than N*2.72V+/-1%.
        7.2>.Display 2 indicators if battery voltage is more than N*2.81V+/-1%.
