General

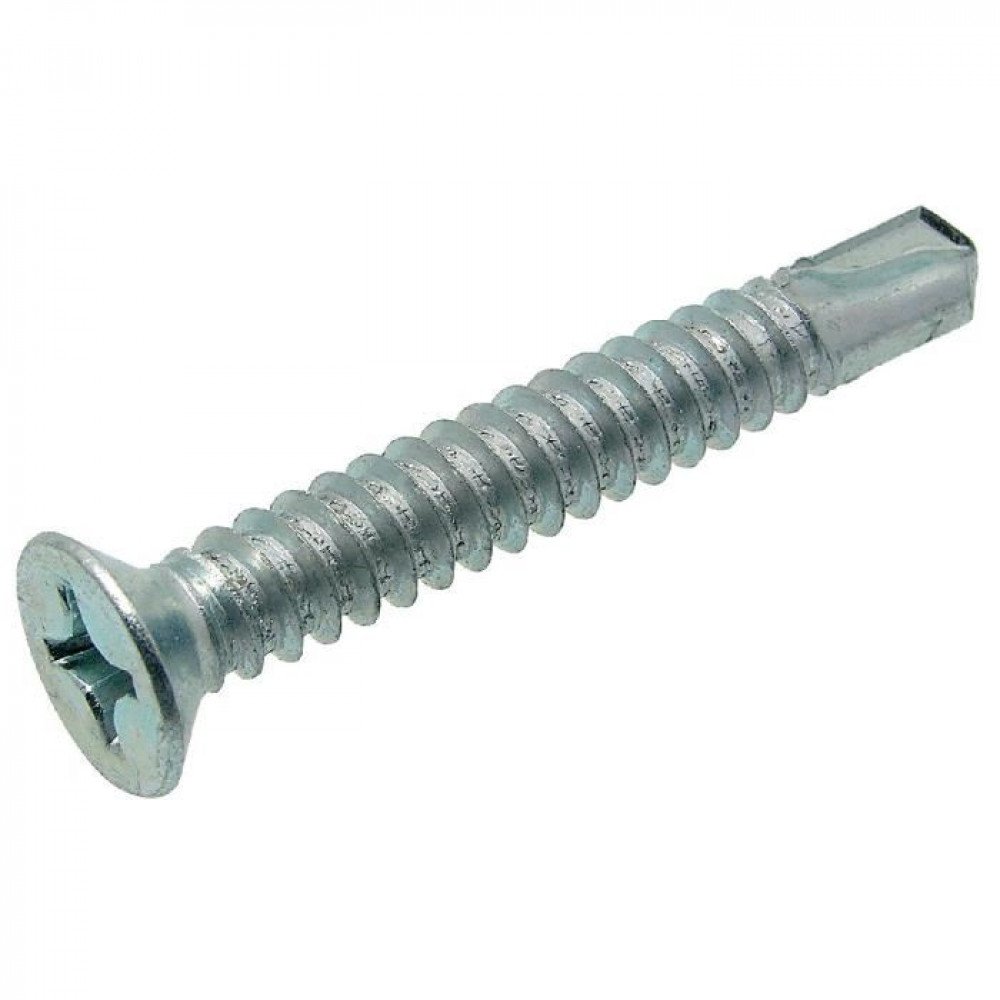

Self-tapping screw Countersunk head

Name: Self-tapping screw Countersunk head
Brand: General
SKU: 17957
Price: 5 DZD
Availability: InStock

Screws & nuts

DZD 5

View on seller's websitePrices and availability are updated daily. Please confirm on the seller's website before buying.

Description

Description :

L : Longueur (mm)
d : diamètre (mm)
dk : diamètre tête (mm)
k : hauteur tête (mm)
CA : capacité d'assemblage (mm)
CP : capacité de perçage (mm)
RC : résistance au cisaillement (kg)
RT : résistance à la traction (kg)
VR : vitesse de rotation maxi. (tours/min)

Vis autoperceuse TF PH - Acier cementé zingué

Réf	Désignation	Condt	L	Empr.	d	dk	k	CA	CP	RC	RT	VR
A540152	Vis auto TF PH 3.5 x 10 ZG	500	10	PH2	3.5	6.9	2	4	2	290	500	2500
A540154	Vis auto TF PH 3.5 x 13 ZG	500	13	PH2	3.5	6.9	2	8	2	290	500	2500
A540156	Vis auto TF PH 3.5 x 16 ZG	500	16	PH2	3.5	6.9	2	11	2	290	500	2500
A540158	Vis auto TF PH 3.9 x 19 ZG	500	19	PH2	3.5	6.9	2	14	2	290	500	2500
A540230	Vis auto TF PH 3.9 x 16 ZG	500	16	PH 2	3.9	7.5	2.3	10	2	360	600	2500
A540232	Vis auto TF PH 3.9 x 19 ZG	500	19	PH 2	3.9	7.5	2.3	13	2	360	600	2500
A540236	Vis auto TF PH 3.9 x 25 ZG	500	25	PH 2	3.9	7.5	2.3	19	2	360	600	2500
A540238	Vis auto TF PH 3.9 x 32 ZG	500	32	PH 2	3.9	7.5	2.3	26	2	360	600	2500
A540240	Vis auto TF PH 3.9 x 38 ZG	500	38	PH 2	3.9	7.5	2.3	32	2	360	600	2500
A540246	Vis auto TF PH 4.2 x 16 ZG	500	16	PH 2	4.2	8.1	2.5	9	3	430	700	2500
A540248	Vis auto TF PH 4.2 x 19 ZG	500	19	PH 2	4.2	8.1	2.5	12	3	430	700	2500
A540250	Vis auto TF PH 4.2 x 22 ZG	500	22	PH 2	4.2	8.1	2.5	15	3	430	700	2500
A540252	Vis auto TF PH 4.2 x 25 ZG	250	25	PH 2	4.2	8.1	2.5	18	3	430	700	2500
A540254	Vis auto TF PH 4.2 x 32 ZG	250	32	PH 2	4.2	8.1	2.5	25	3	430	700	2500
A540256	Vis auto TF PH 4.2 x 38 ZG	250	38	PH 2	4.2	8.1	2.5	31	3	430	700	2500
A540266	Vis auto TF PH 4.8 x 19 ZG	250	19	PH 2	4.8	9.5	3	11	4	620	1000	2000
A540270	Vis auto TF PH 4.8 x 25 ZG	250	25	PH 2	4.8	9.5	3	17	4	620	1000	2000
A540272	Vis auto TF PH 4.8 x 32 ZG	250	32	PH 2	4.8	9.5	3	24	4	620	1000	2000
A540274	Vis auto TF PH 4.8 x 38 ZG	250	38	PH 2	4.8	9.5	3	30	4	620	1000	2000

Self-tapping screw Countersunk head

DZD 5
