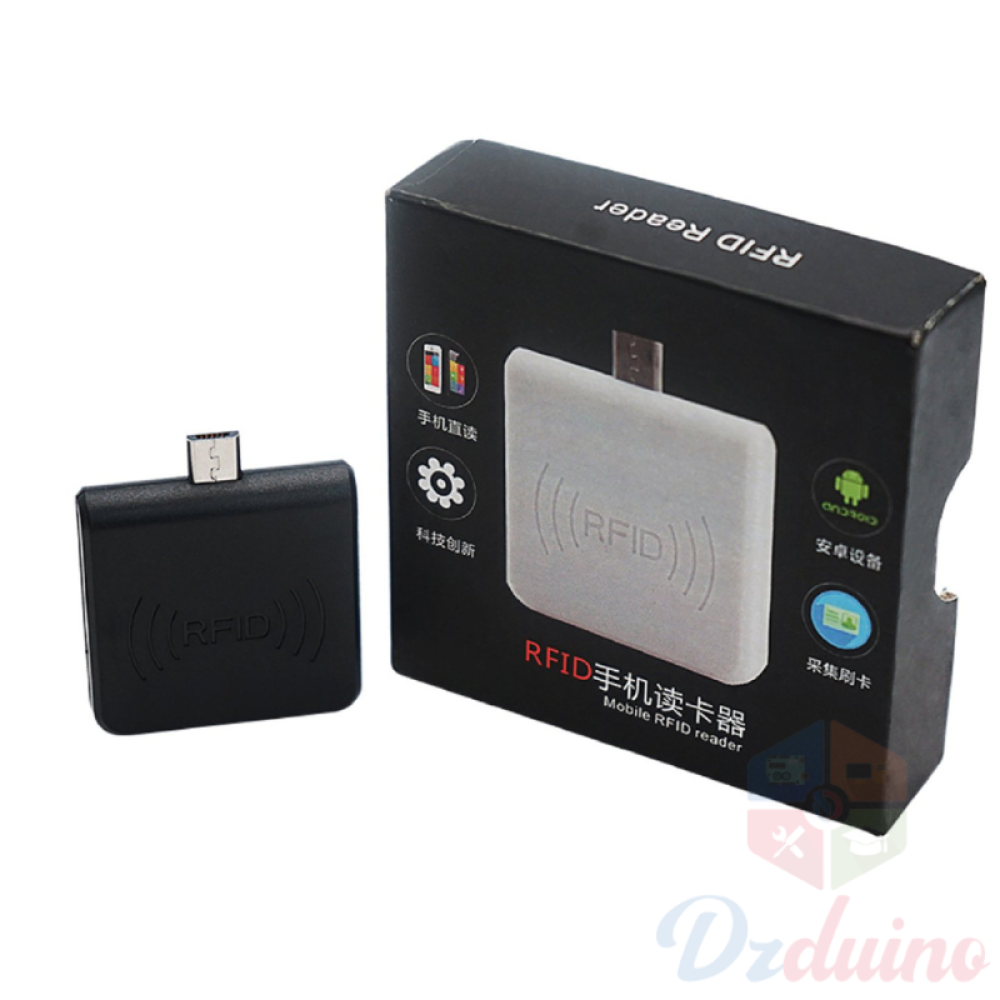

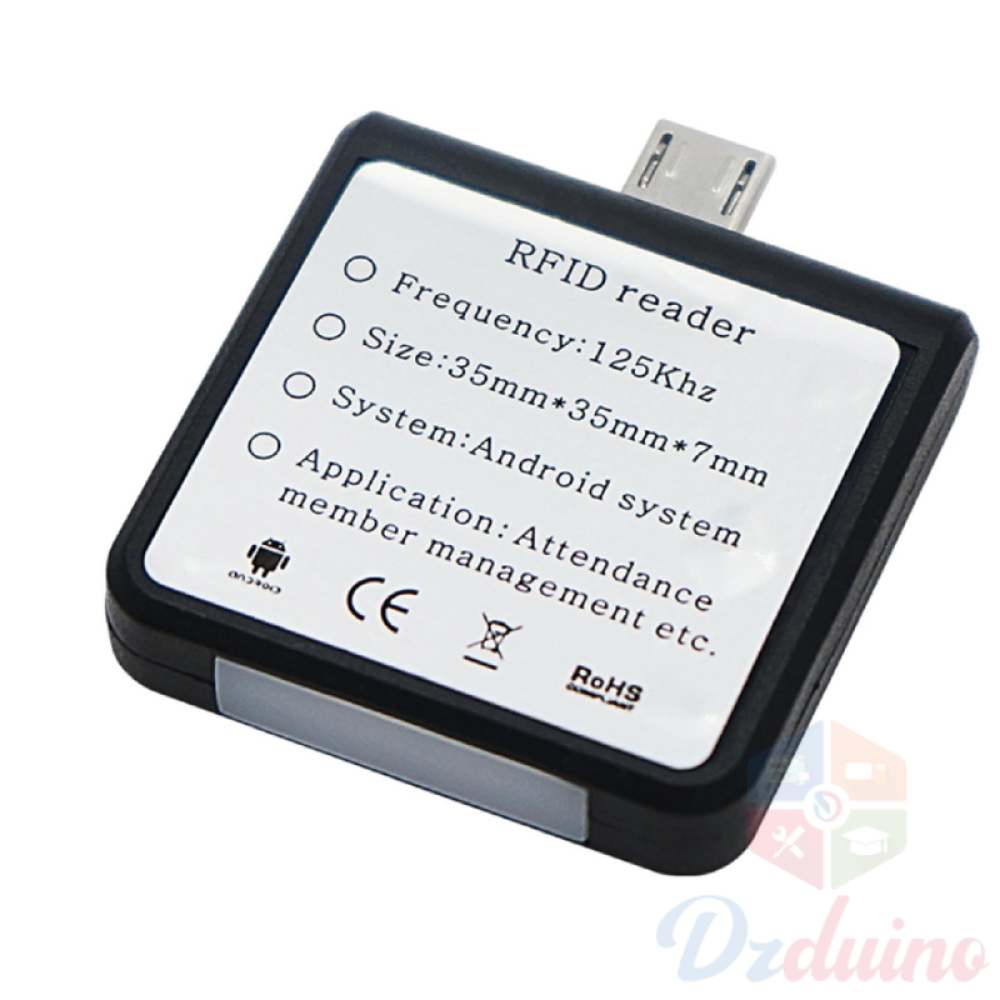

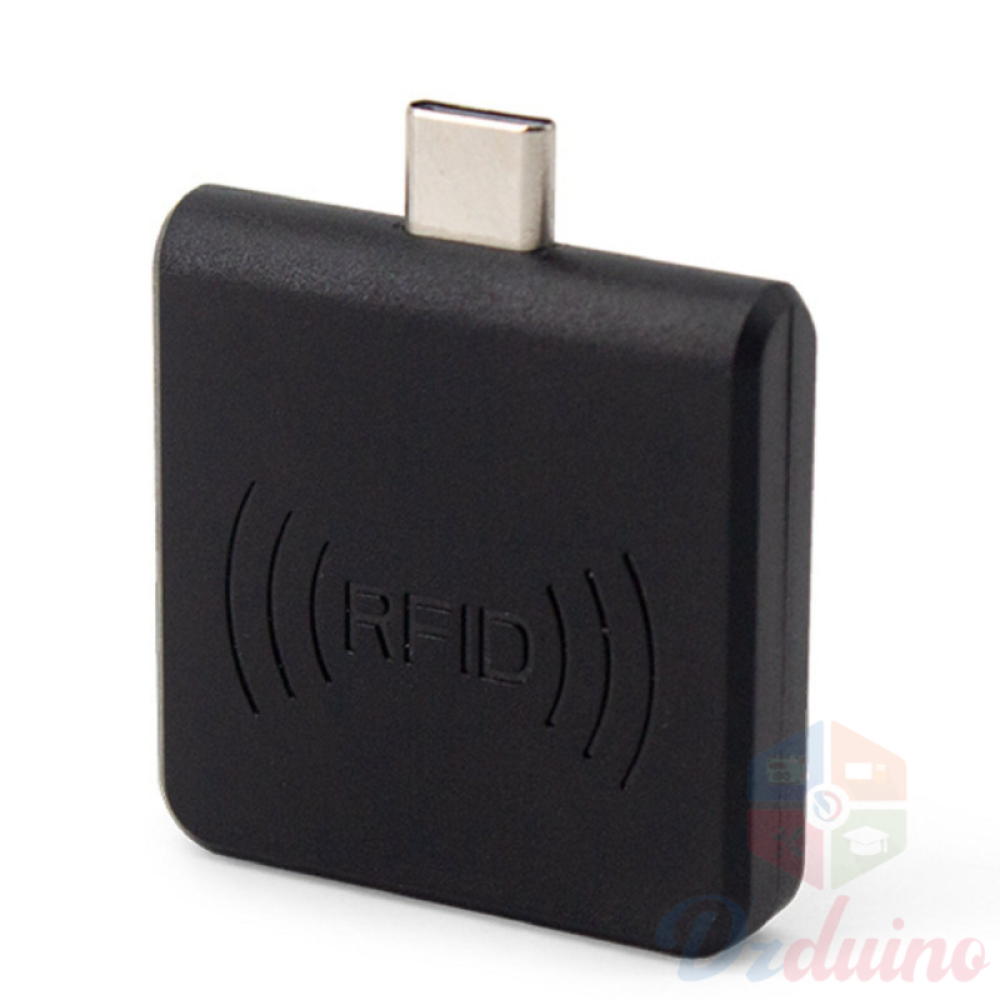

Phone RFID ID Card Reader

 Android System

This product is a RFID reader which can directly collecting data from RFID card via Mobile phone. This reader do not  need any driver and other media.The frenquency is 125KHz using microelectronics RF receiver  module and embedded micro controller, combined with an efficient decoding algorithm and advanced data processing  technolog.


Name: Mobile phone RFID Reader(125khz)
Operating frequency: 125KHz
Support card: EM4100 TK4100 125KHZ ETC
Operating system: Android (need to support OTG),Windows
Size (without interfaces): 35mm × 35mm × 7mm
Package size: 71mm × 71mm × 19mm
Reading distance: 0-30mm (front / rear reading); 0-10mm (side reading)
Reading Time: <0.5s
Reading interval: 0.3S
Communication Interface: Mini USB Interface
Operating Voltage: 5V
Operating Current: 100mA
Weight: 50G
Working temperature:   -10 °C ~ 60 °C
Humidity: 5% ~ 95%
Status Indicator: dual LED ( "blue" --- power indicator,  "green" --- status  indicator)
