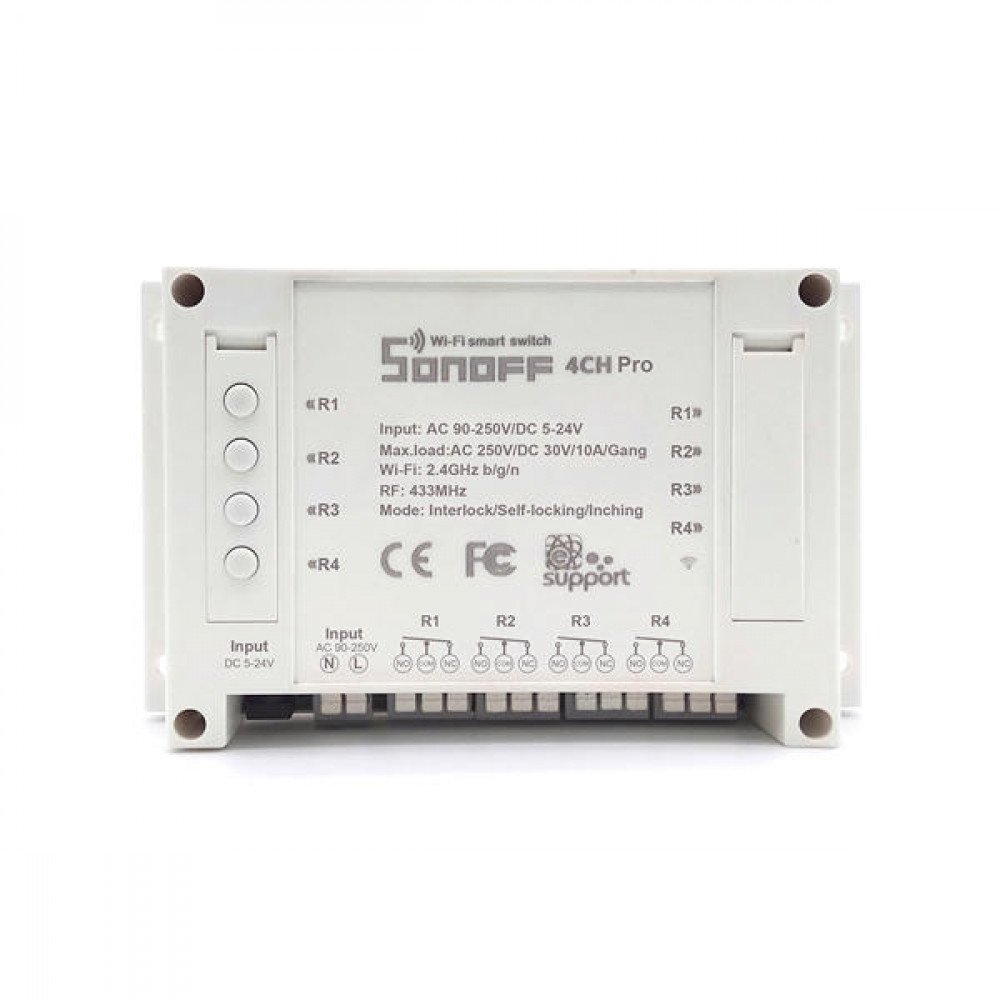

Sonoff 4CH Pro - 4 Gang Inching/Self-locking/Interlock WiFi RF Smart Switch

Overview

Sonoff 4CH Pro & 4CH Pro R2 are 4 gang WiFi switches. They support switching among 3 working modes: interlock/self-locking/inching mode, and both supports to set 1-16s delay in inching mode. This feature allows you to let your switch turn on for a few seconds then goes off, which works like a pulse switch. They integrate with a 433.92MHz RF receiver module, making them possible to be controlled by RF Remote. The smart switches are DIN Rail mounted.

Users can remotely turn on/off the connected lights/appliances by iOS/Android App eWeLink or 433MHz RF Remote. They can create 8 enabled single/repeat/countdown timers to automatically turn on/off at the specified time. The timers can run themselves even when the network is unavailable. To let the devices be controlled by others, users can simply share the devices to other accounts and allow specified timers permissions. Users can even create some scenes or smart scenes to trigger ON/OFF the switch.

Upgraded: Sonoff 4CH Pro supports to set 1-16s delay in inching mode now ( 0.25-4s before).

In interlock mode, users can turn on one device every time, and turn off other devices at the same time.

In inching mode, users can turn on the connected devices for 0.25-4s (Sonoff 4CH Pro) or 1-16s (Sonoff 4CH Pro R2) then auto-off.

Users can set some devices in inching mode, while the others in self-locking mode.

Features

• Turn on/off 4 home appliances remotely
• Supports switching among inching/interlock/self-locking modes
• Device status's synchronously display
• Scheduled/Countdown timers
• Share control
• Supports setting power on status
• 433MHz RF Remote control
• Works with Amazon Echo, Echo Dot, Amazon Tap
• Works with Google Home, Google Nest
• Works with IFTTT

Specifications

• Voltage Range: 90-250V AC(50/60Hz) / 5-24V DC
• Max Current: 10A/gang
• Max Power: 2200W/gang
• Wireless Frequency: WiFi 2.4GHz
• Wireless Standard: 802.11 b/g/n & 433MHz
• Security Mechanism: WPA-PSK/WPA2-PSK
• Enclosure Material: Fire-retardant ABS V0
• Gang: 4
• Dimension:145*90*40 (mm)
• Operating Temperature(recommended): 0ºC-40ºC(32°F-104°F)
• Operating Humidity: 5%-90%RH, Non-condensing

Package

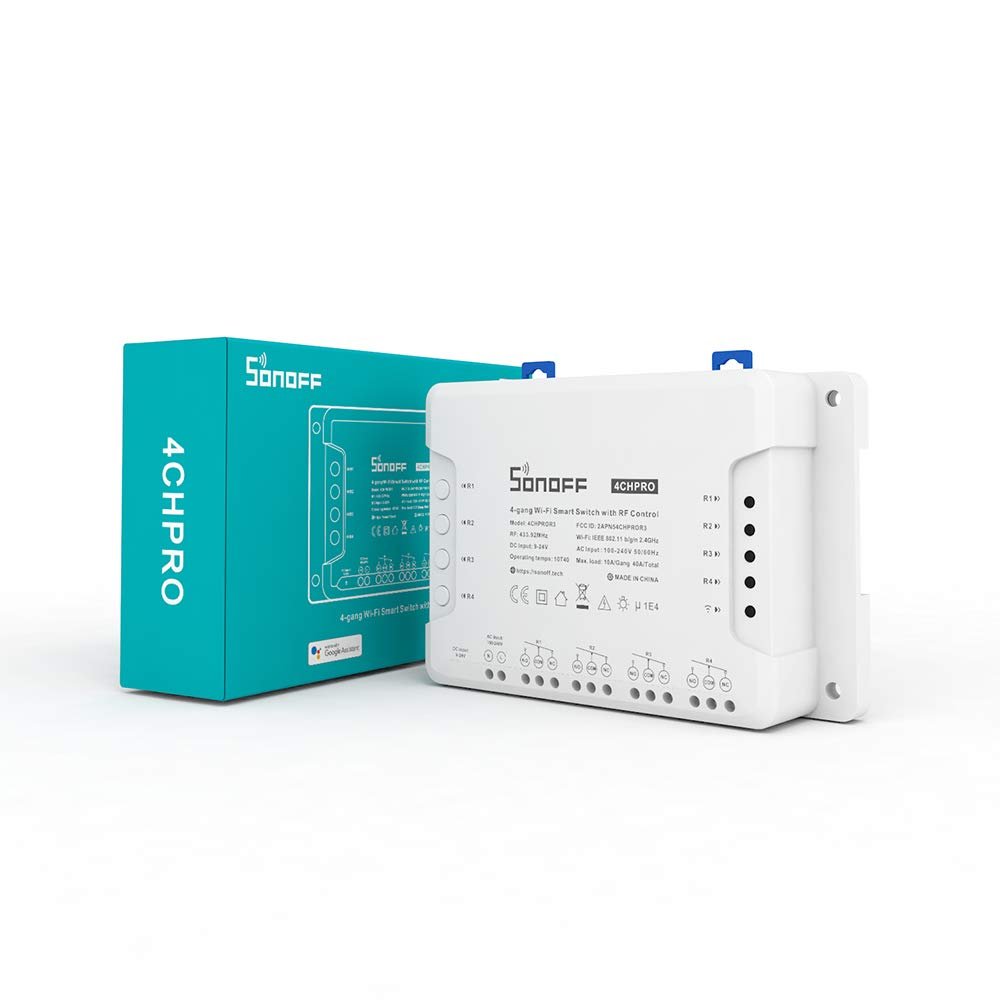

• Sonoff 4CH Pro or Sonoff 4CH Pro R2 *1
• Note: The RF Remote is not included.
