MAX GPU TEMPERATURE : 64°C
MAX HOTSPOT TEMPERATURE : 74°C
Core Specifications :

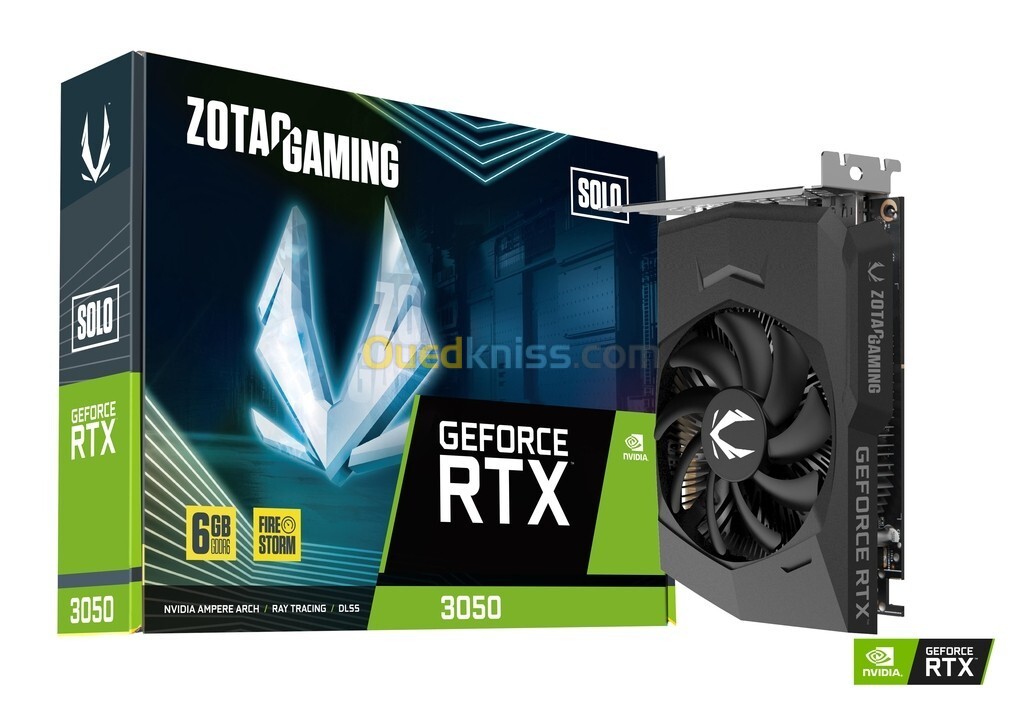

GPU Architecture: NVIDIA Ampere (GA107 chip)
CUDA Cores: 2,304
Boost Clock: 1470 MHz
VRAM Size & Type: 6GB GDDR6
Memory Bus Width: 96-bit
Memory Bandwidth: 168 GB/s
Compatibility & Power :
Bus Interface: PCIe 4.0 x8 (physical x16)
Total Power Draw (TDP): 70W
Power Connectors: None (draws power directly from the PCIe slot)
Recommended PSU: 300W or greater
Card Length: ~150.8 mm (super compact design fits most small cases)
Outputs & Displays :
Display Ports: 3 x DisplayPort 1.4a
HDMI Port: 1 x HDMI 2.1
Max Resolution: 4K Ultra HD / 8K ready at 60Hz
