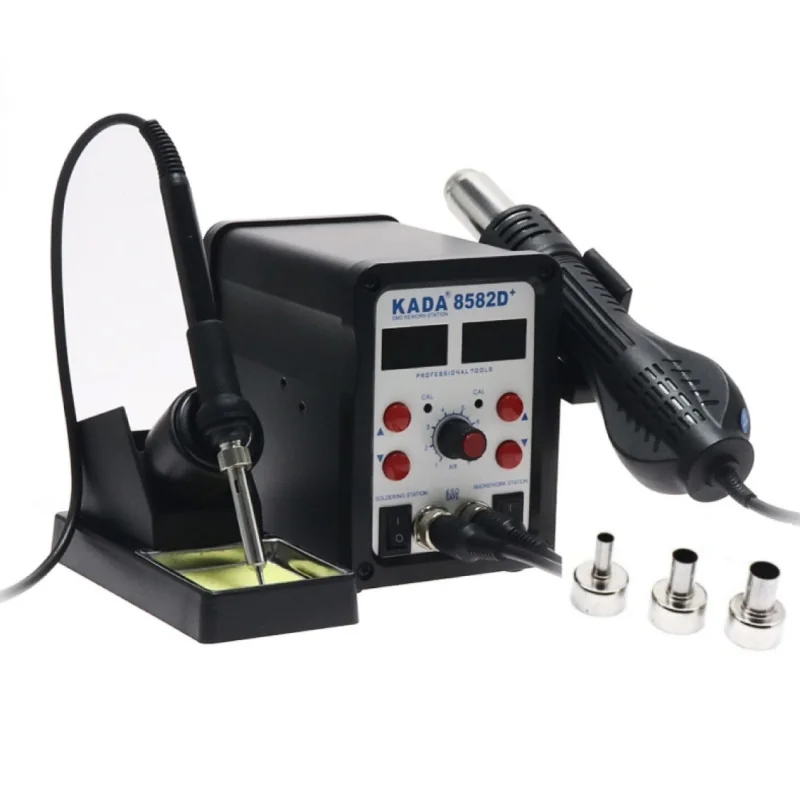

STATION FER AIR CHAUD KADA 8582D+

• Station à air chaud KADA 8582D+ pour soudure et dessoudage électronique

• Contrôle précis de la température pour travaux sur composants SMD

• Chauffe rapide avec performance stable pour réparation professionnelle

• Convient aux cartes PCB, smartphones et divers appareils électroniques

• Idéale pour ateliers de maintenance et interventions de précision

KADA 8582D+ digital soldering station is a combination of both hot air soldering station and soldering iron for soldering or de soldering SMD components and through-hole components. The hot air gun can be used for easily removing or soldering various devices such as BGA, QFP, SOP, PLCC, SOJ chips and etc. KADA 8582D+ digital soldering station has three knobs that control hot air volume, hot air temperature, and soldering iron temperature

Features:

• The hot air knob has 8 shifts, which provide different speeds and volumes of airflow for different use
• The Diaphragm Pump capable of producing strong and stable airflow (0.3–24L/min)
•  Two LED displays for hot air and iron, you can easily get your desired temperatures
• The machine provides stable temperature which is not affected by the volume of airflow.
• The soldering iron can be unplugged easily
• ESD SAFE design provides extra safety for sensitive components
• High quality ceramic heating element rises the iron temperature rapidly in 3 seconds
• KADA 8582D+ digital soldering station also has an automatic cooling system

Soldering Station Specification:

• Working Voltage: 24V AC 50Hz
• Output Power: 60W
• Temperature Range: 200°C-480°C
• Leakage Voltage of Iron Tip: <0.5mV
• Standard Iron Tip: AT-900M

Rework Station Specifications:

• Input Voltage : AC 220V ~ 240V
• Input Frequency: 50/60Hz
• Power consumption (Heater): 250W
• Pump: Diaphragm Pump
• Power consumption (Pump): 45W
• Temperature Range: 100°C ~ 420°C
• Air Flow : 24L/min (max)
• Outer Dimensions: 187(W)x150(H)x245(D)mm
• Weight: 3kg
