IteadStudio

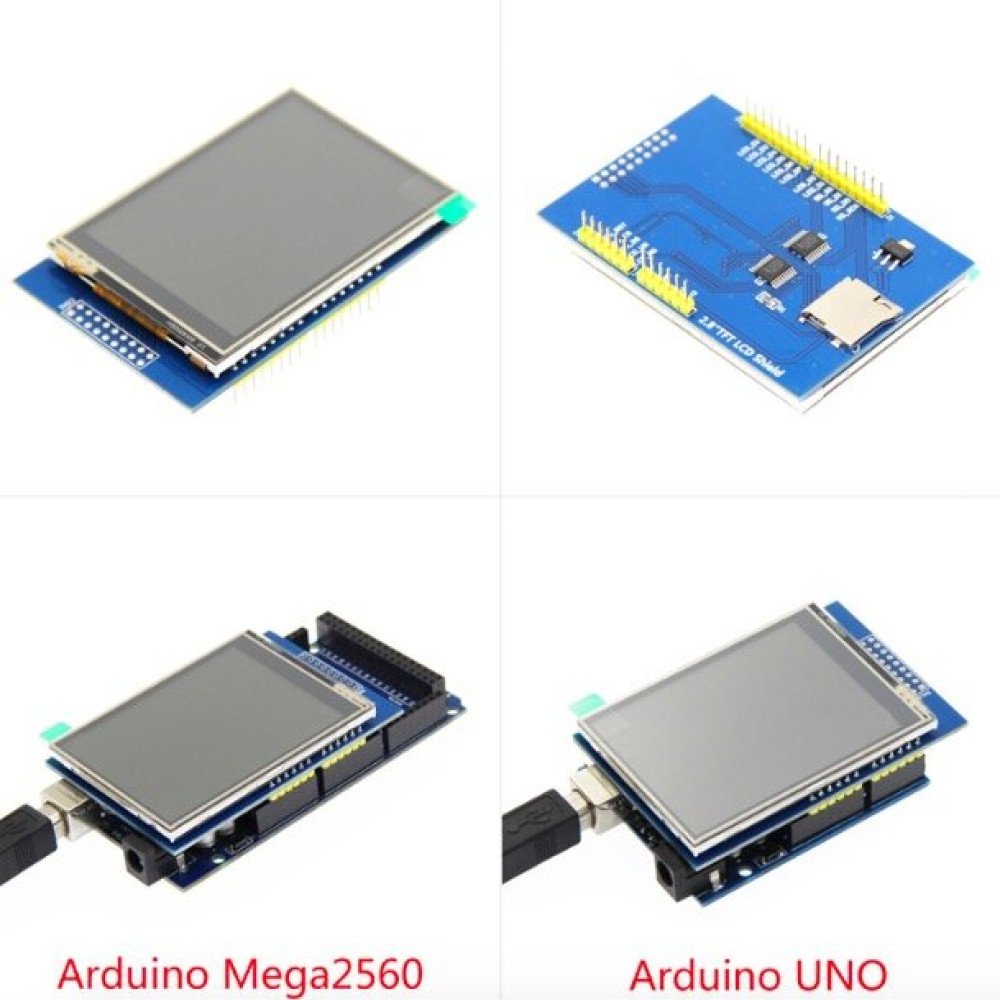

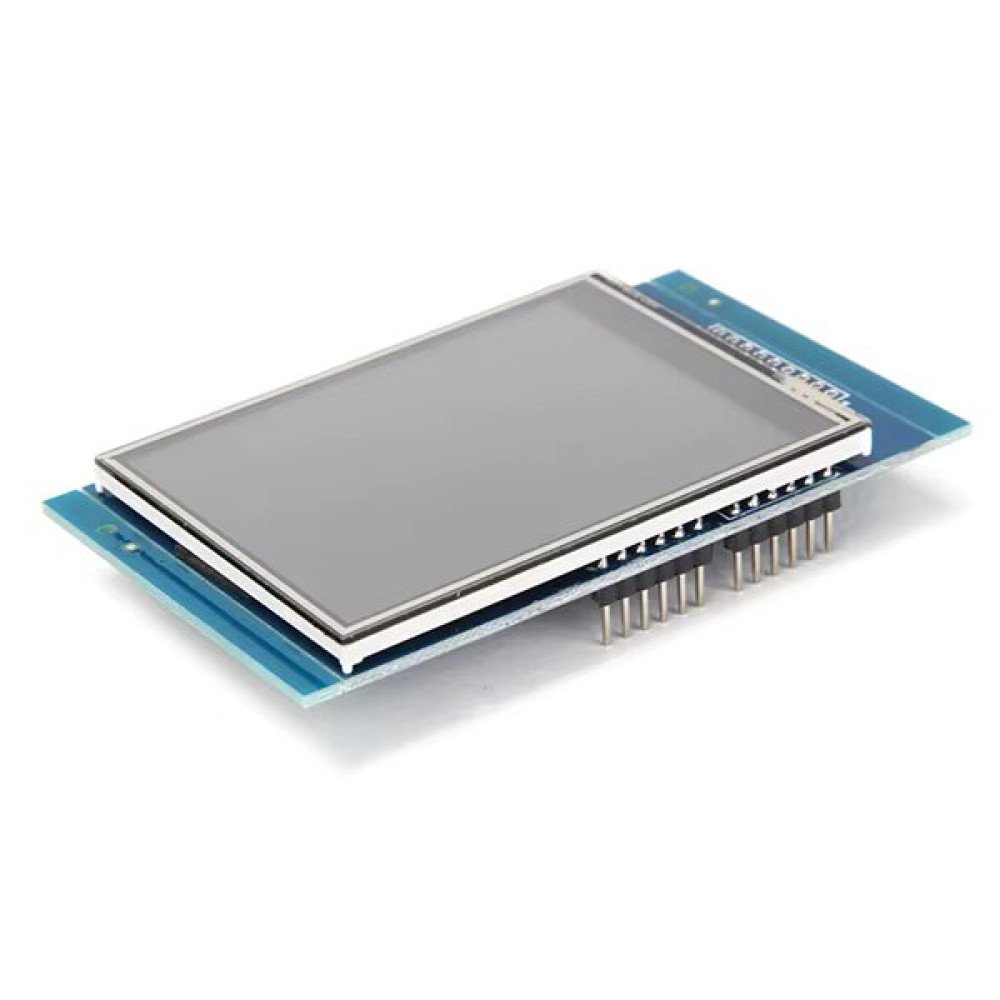

2.8INCH TFT LCD Touch Display Shield With SD Card
DZD 3 300
Voir sur le site du vendeurLes prix et la disponibilité sont mis à jour quotidiennement. Veuillez vérifier sur le site du vendeur avant d'acheter.
Description
Product Description:
- Supports development boards such as Arduino UNO and Mega2560 for plug-in use without wiring
- 320X240 resolution, clear display, support for touch function
- Support 16-bit RGB 65K color display, display rich colors
- 8-bit parallel bus, faster than serial SPI refresh
- On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
- Easy to expand the experiment with SD card slot
- Provides an Arduino library with a rich sample program
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
Product Parameters:
- Display Color：RGB 65K color
- Screen Size ：2.6(inch)
- Type：TFT
- Driver IC：ILI9341
- Resolution：320*240 (Pixel)
- Module Interface：8-bit parallel interface
- Active Area ：39.60*52.80(mm)
- Module PCB Size：52.70*78.22(mm)
- Operating Temperature：-10℃~60℃
- Storage Temperature：-20℃~70℃
- Operating Voltage：5V/3.3V
- Power Consumption：TBD
- Product Weight(Package containing)：35(g)
