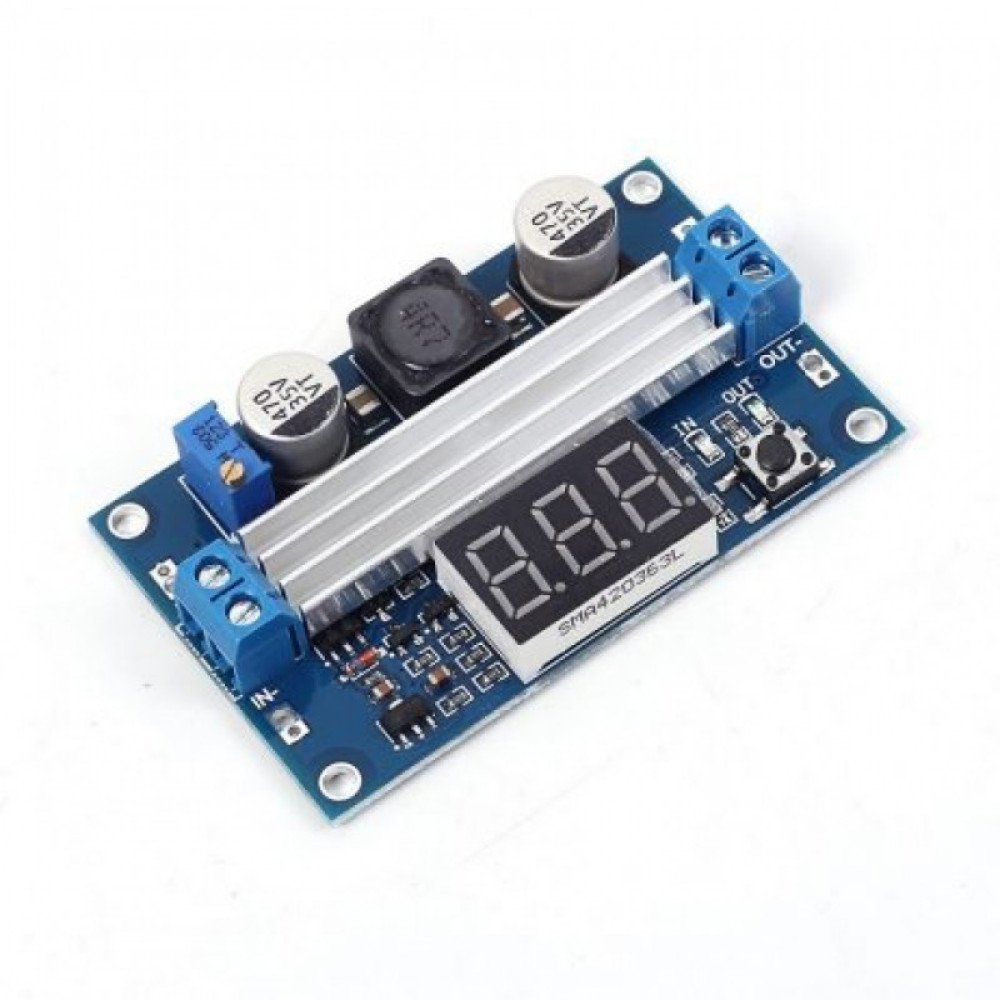

DC-DC High Power Adjustable Step-up Module 3.0~35V to 3.5~35V 100W

Description

The automatic boost module provides a stable power supply. Applicable to an unstable voltage source or voltage conversion. The display part adopts a more advanced microprocessor of the voltmeter. By using the on-resistance of power MOSFET, the current detection resistance is omitted, and the efficiency is improved to the maximum extent, up to 96.4%.

Imported high power low resistance MOS transistors, large package, high current, high-efficiency Schottky, ultra-wide, and thick PCB wiring, are the guarantee of high power, high efficiency, and low temperature rise. High frequency, high capacity and low resistance (low ESR) aluminum electrolytic capacitor for long-life switching power supply make the output ripple lower.


Technical Details

• Input voltage: 3 ~ 35V DC
• Input current: 9A (max)
• Output voltage: 3.5 ~ 35V DC (this board is the boost plate, the output voltage to> = input voltage)
• Output current: 6A (max)
• Output power: 75W, (when the input and output voltage is greater than 20V can reach 128W)
• Conversion efficiency: 96.7% (highest)
• Output ripple: 24mV (TYP)
• Onboard voltage meter range: 4 ~ 40V, error + -0.1V
• Short circuit protection: Yes (limit current 14A).
• Input reverse polarity protection: no (if necessary, enter the string into the high current diode).

Physical Attributes

• Module Size: 67x43mm
• Weight: 34g

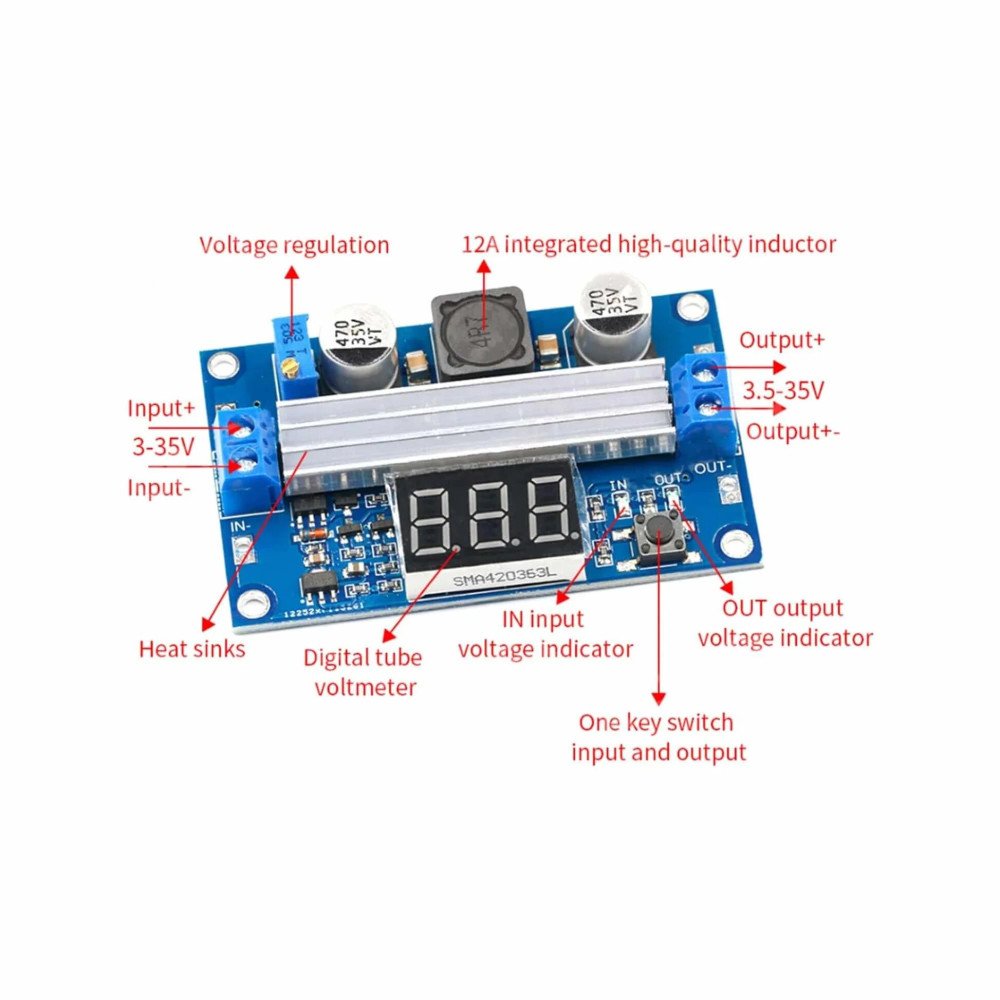

Additional Details

• High power 100W.
• Switch display output and input voltage.
• Adjustable output voltage.
• Real-time display voltage.
• Comes with an excellent heat sink
• Fixed mounting hole.
• High-quality terminal block
