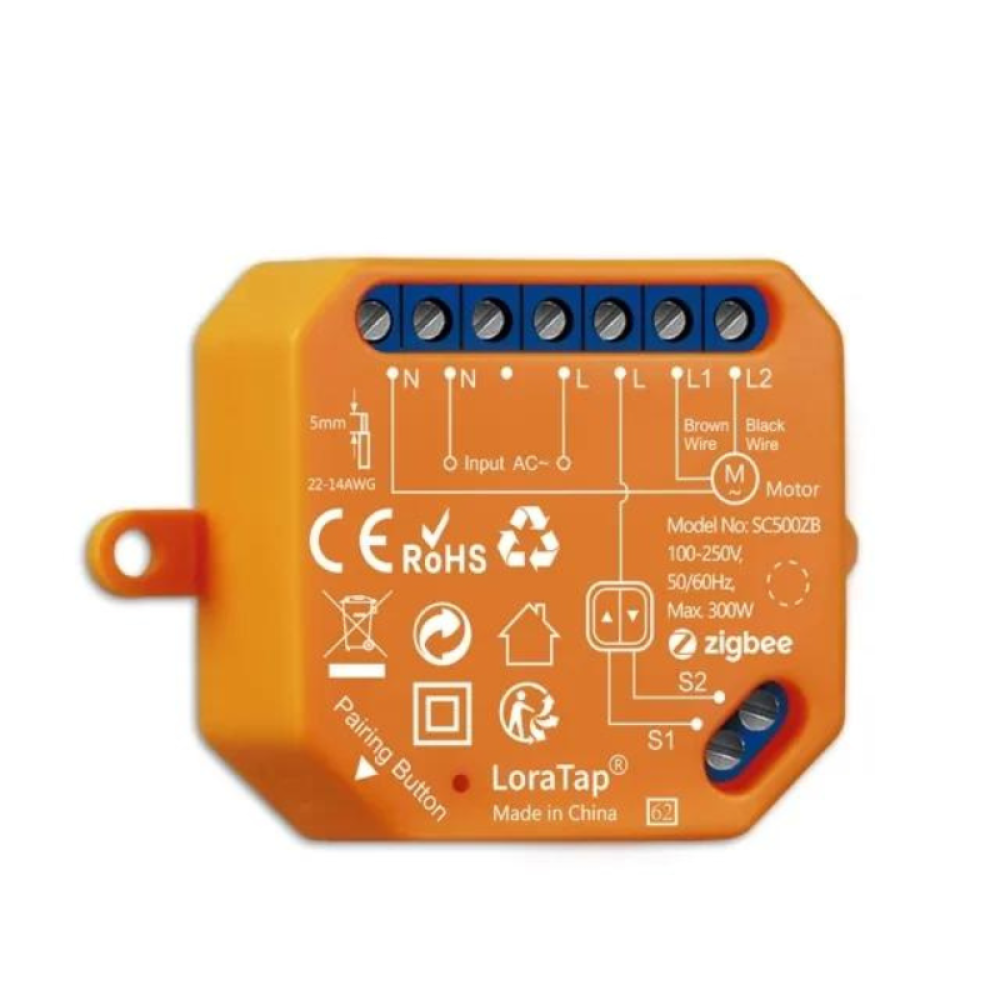

The LoraTap SC500ZB-V4 is a Zigbee 3.0 smart roller shutter module designed to automate roller shutters, blinds, and curtain motors. Installed behind an existing wall switch, it allows convenient remote control through a compatible Zigbee hub while seamlessly integrating into your smart home system.

Featuring Zigbee 3.0 technology, the SC500ZB-V4 provides fast, reliable, and energy-efficient communication. It supports Open, Close, Stop, and 0–100% position control, allowing precise adjustment of your shutters or blinds. The module also supports motor calibration, direction reversal, scheduling, automation scenes, and voice control through compatible smart home platforms.

Key Features

• Zigbee 3.0 wireless communication

• Smart control for roller shutters, blinds, and curtain motors

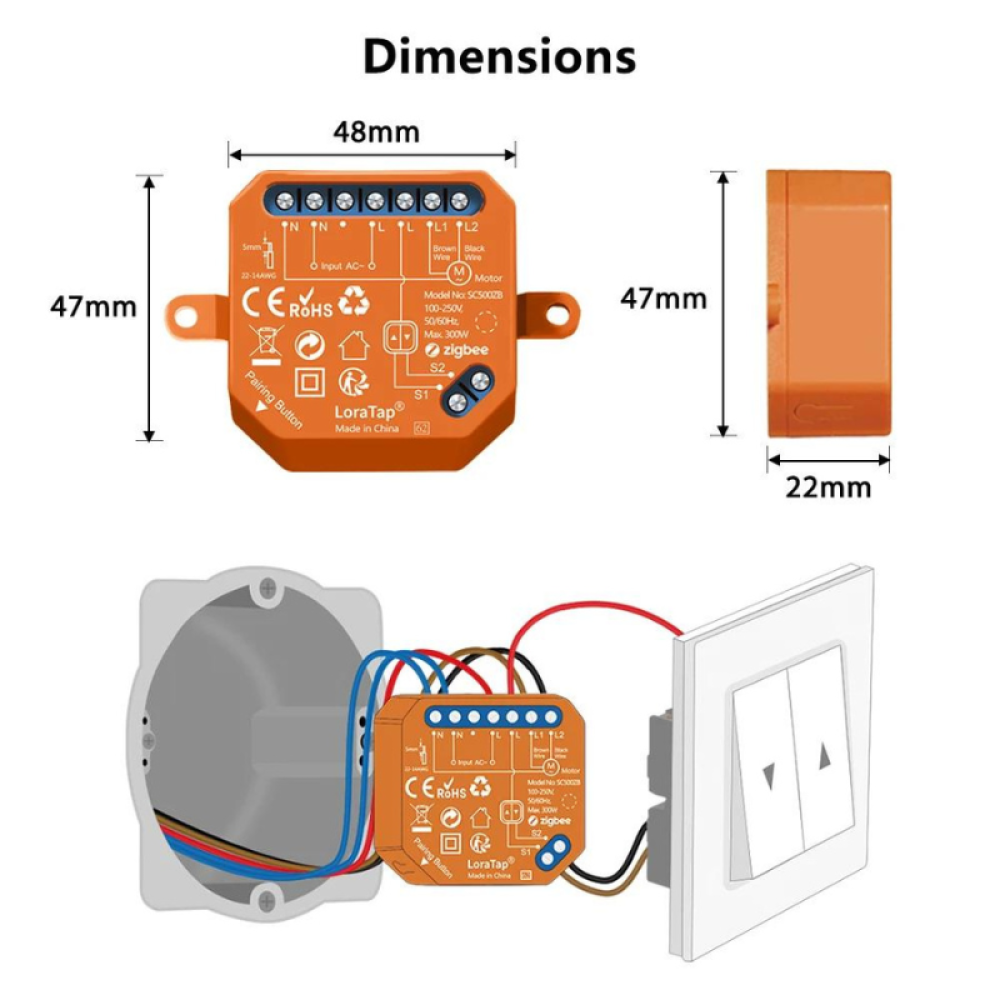

• Flush-mount installation behind a wall switch

• Open / Close / Stop control

• 0–100% position control

• Automatic travel calibration

• Motor direction reversal

• Compatible with momentary and toggle wall switches

• Low standby power consumption (<0.5W)

Compatibility

• Home Assistant (Zigbee2MQTT & ZHA)

• Tuya Smart

• Smart Life

• Amazon Alexa (via a compatible Zigbee hub)

• Google Home (via a compatible Zigbee hub)

Package Includes

• 1 × LoraTap SC500ZB-V4 Zigbee Smart Roller Shutter Module

• 1 × User Manual

Note: A Zigbee 3.0 gateway/hub is required for operation. This device does not connect directly to Wi-Fi.
