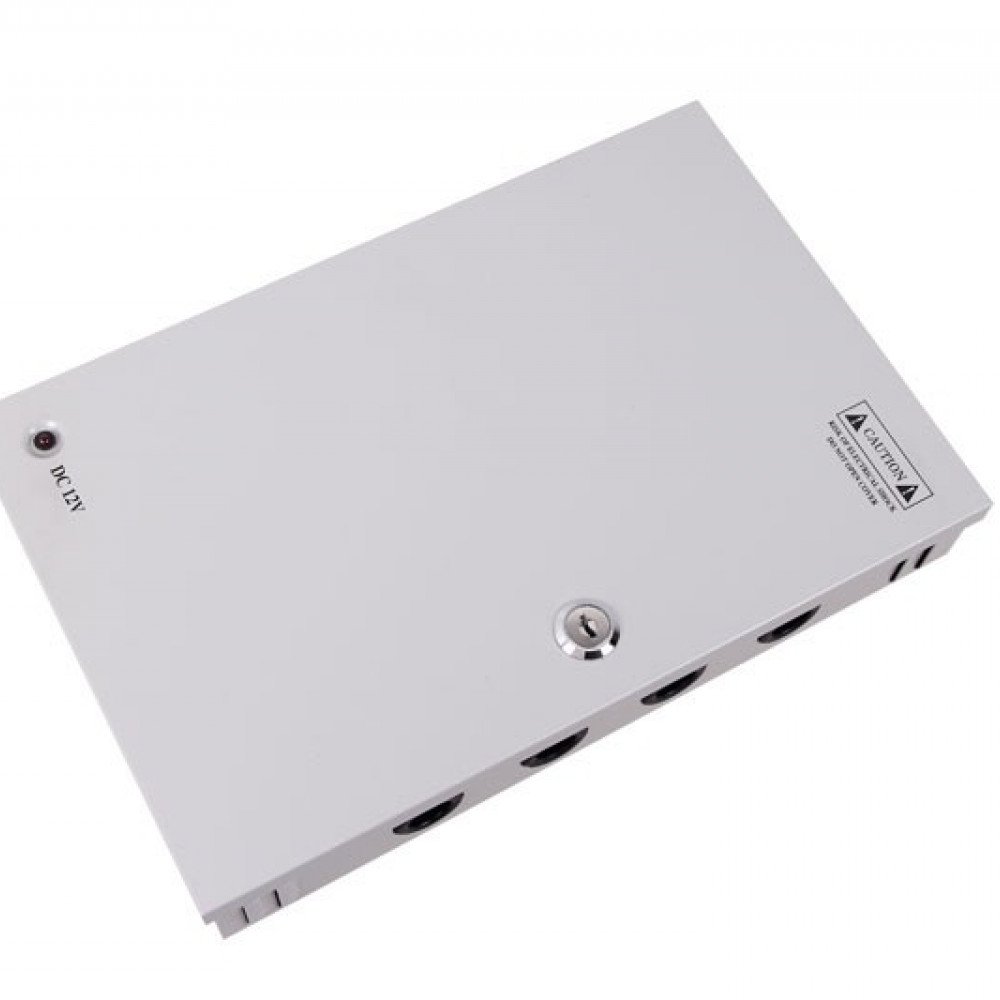

12V 20A, 18 channel CCTV camera power supply distribution box

Description:

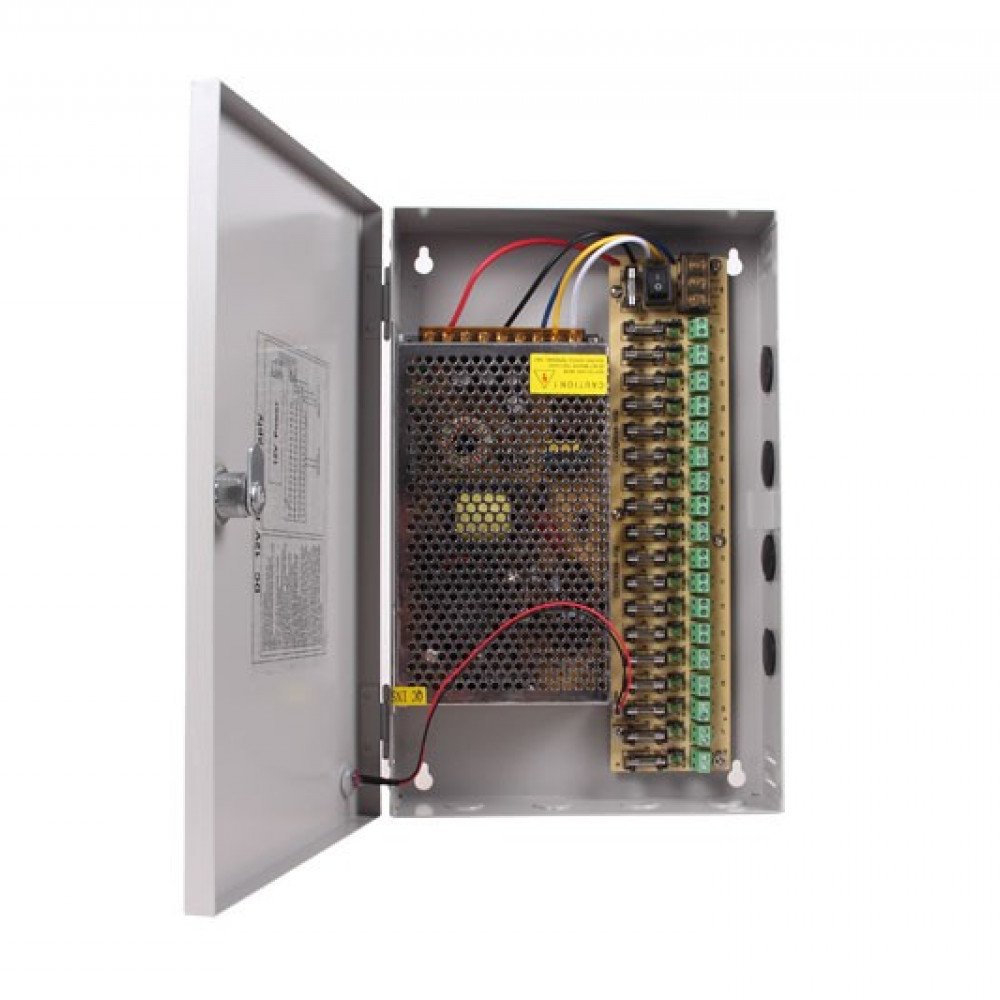

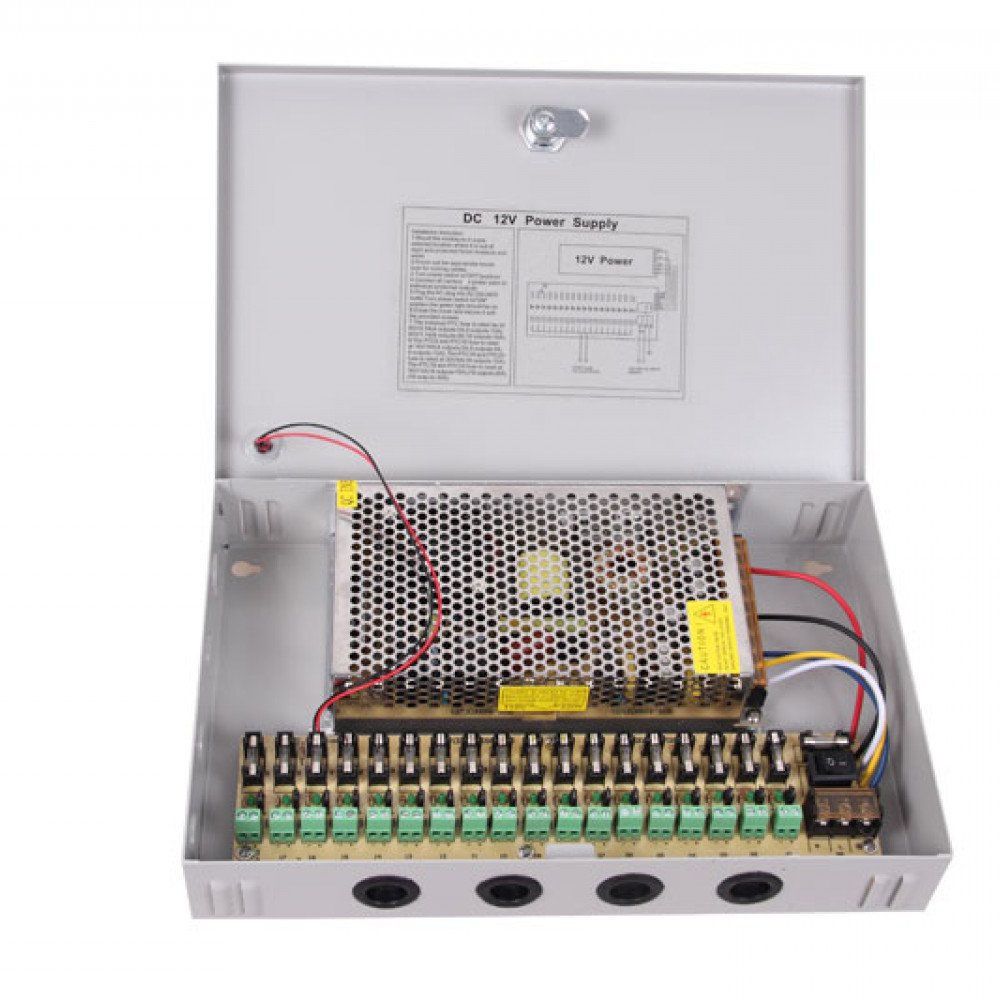

This is 18 channel metal cabinet design power supply distribution box, mainly used for video surveillance cameras. The power box with lock design and LED indicators for system's status. It's adopting switching mode power supply, which with advantages of wide voltage inputs range, energy efficient with compact size and low weight. This power supply supports AC inputs from 100V (50/60Hz) to 240V (50/60Hz), working any any countries without adjustment.

This power supply distribution box can output 20Amp current, providing efficient DC current for your security cameras. It supports output short circuit protection, over current protection, under voltage input protection, over voltage input protection. It's un-interruptible power system which with protection from voltage spikes and surges.

Key features:

• Metal cabinet power supply distribution box with lock
• 12V 20A, 18 channel connection terminals
• Wide voltage inputs 100VAC/240VAC (47～63Hz)
• Maximum current output 1.1Amp
• Surge current protection 20A@120VAC
• High efficienty power supply
• Cooling fan for low temperature operation
• Output short circuit, over current, over voltage protection
• Adopting EMI design for reducing noise
• 18 individually fused output with LED indicators for each fuse
• Wall mount installation
• Working environment, 10℃～50℃；20%～90%RH
• size : (31.5 x 21.5 x6.5)cm
