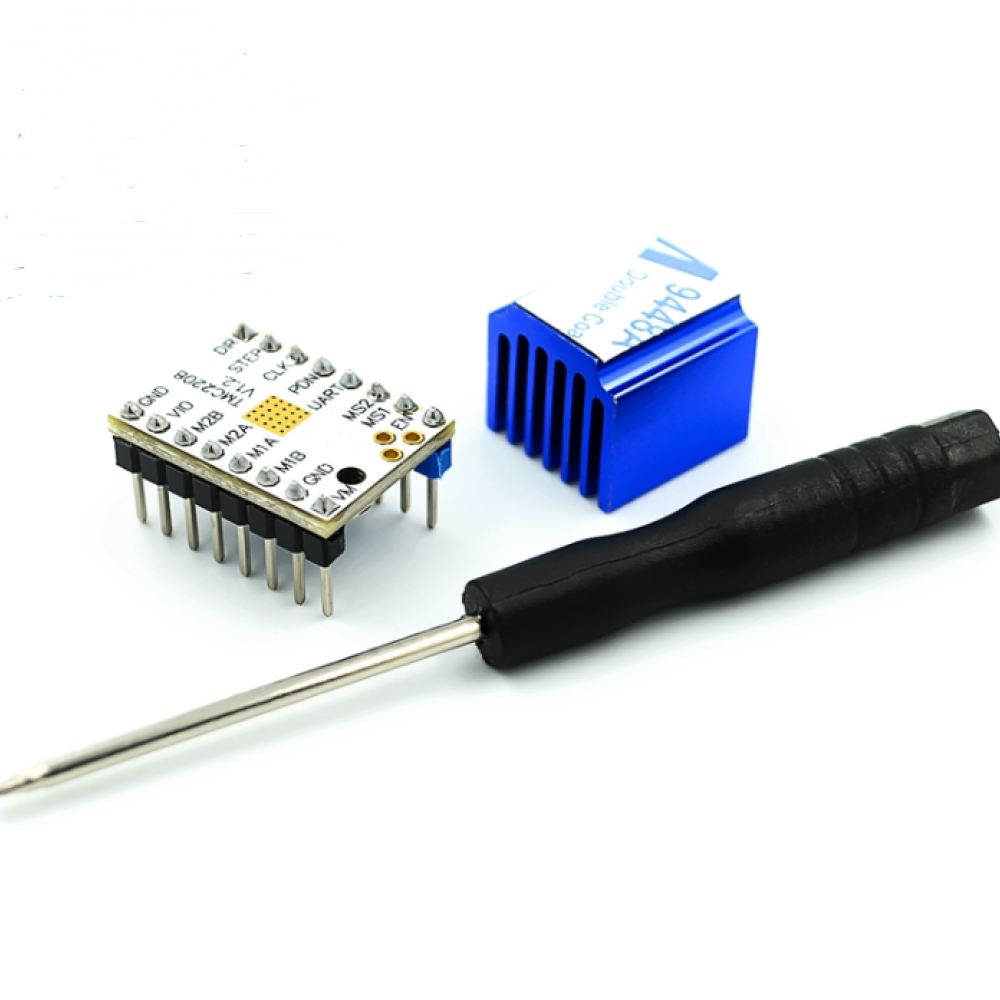

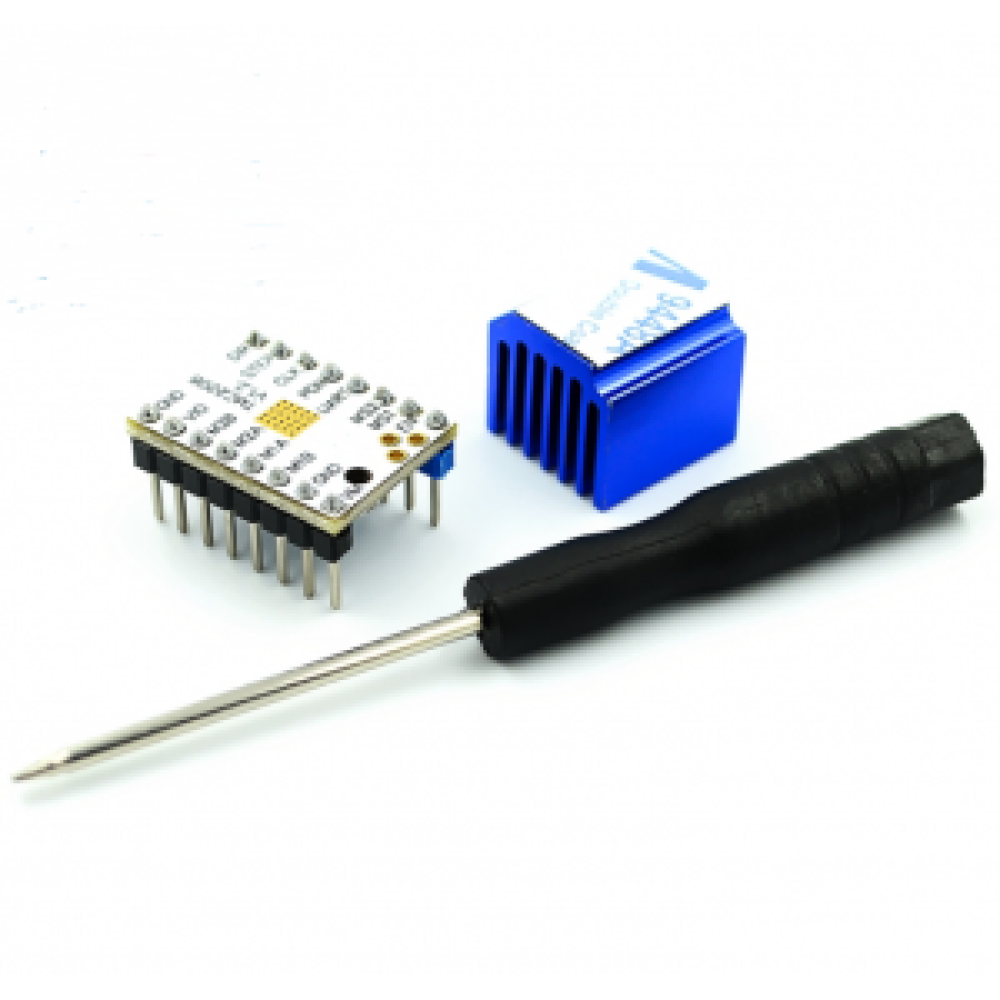

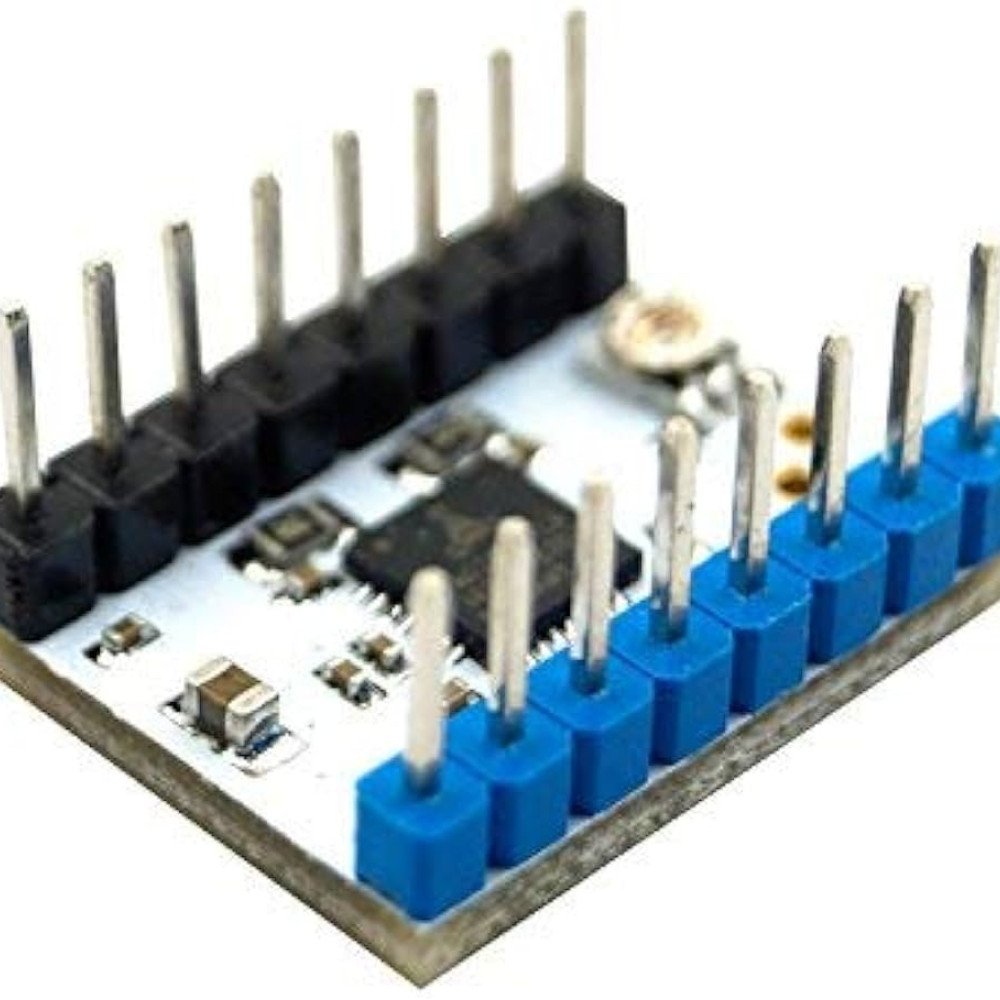

TMC2208 Stepping Motor Mute Built-in Drive

Descriptions:

TMC2208 single-axis stepper motor drive chip, power tube, built-in drive current 1.4A, peak current 2A, voltage range 4.75V-36V, subdivision 256;

Flexible microPlyer interpolation unit, the component can provide resolution up to 256 microsteps/steps, even if the pulse frequency is limited, the system can still be perfect to achieve sinusoidal control; Both components have pulse/direction input, can be completely independent operation. Configuration is carried out via digital input.

REMARK :

Can replace the original TMC2100, with lower heat, especially for 3D printing market
