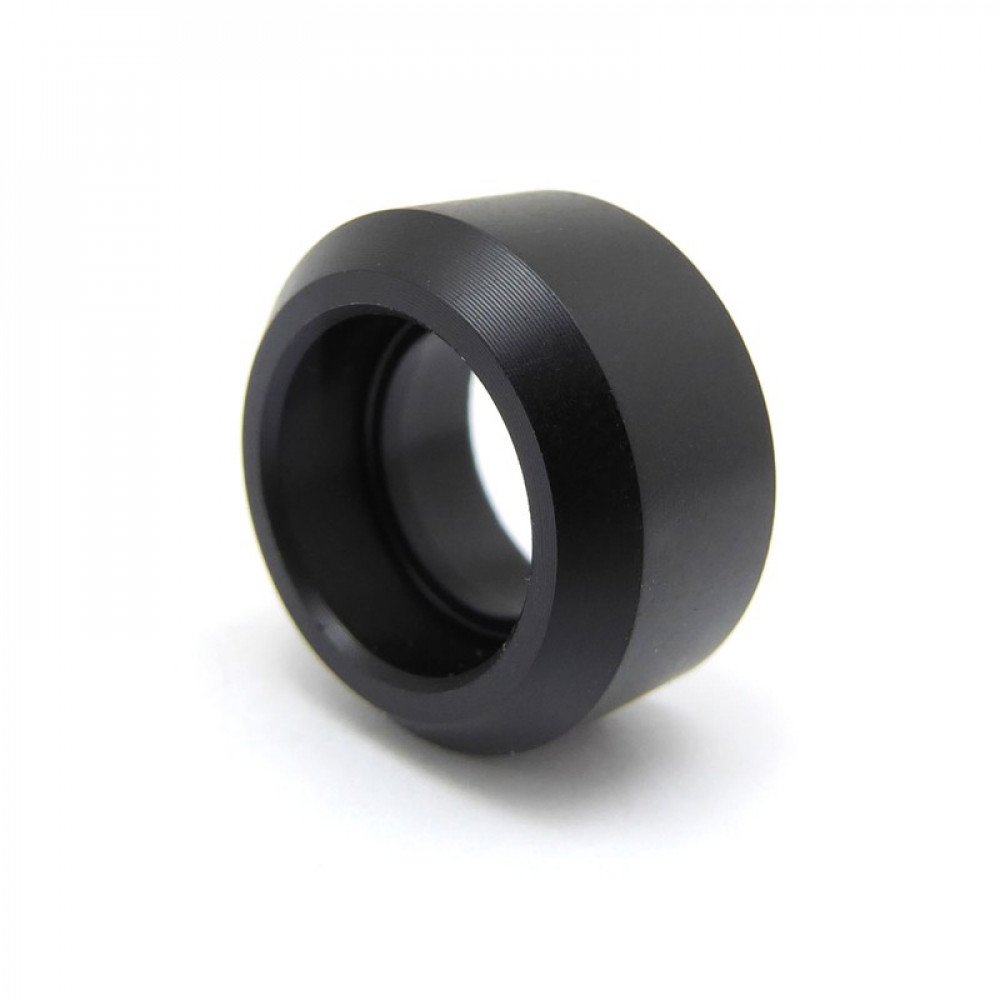

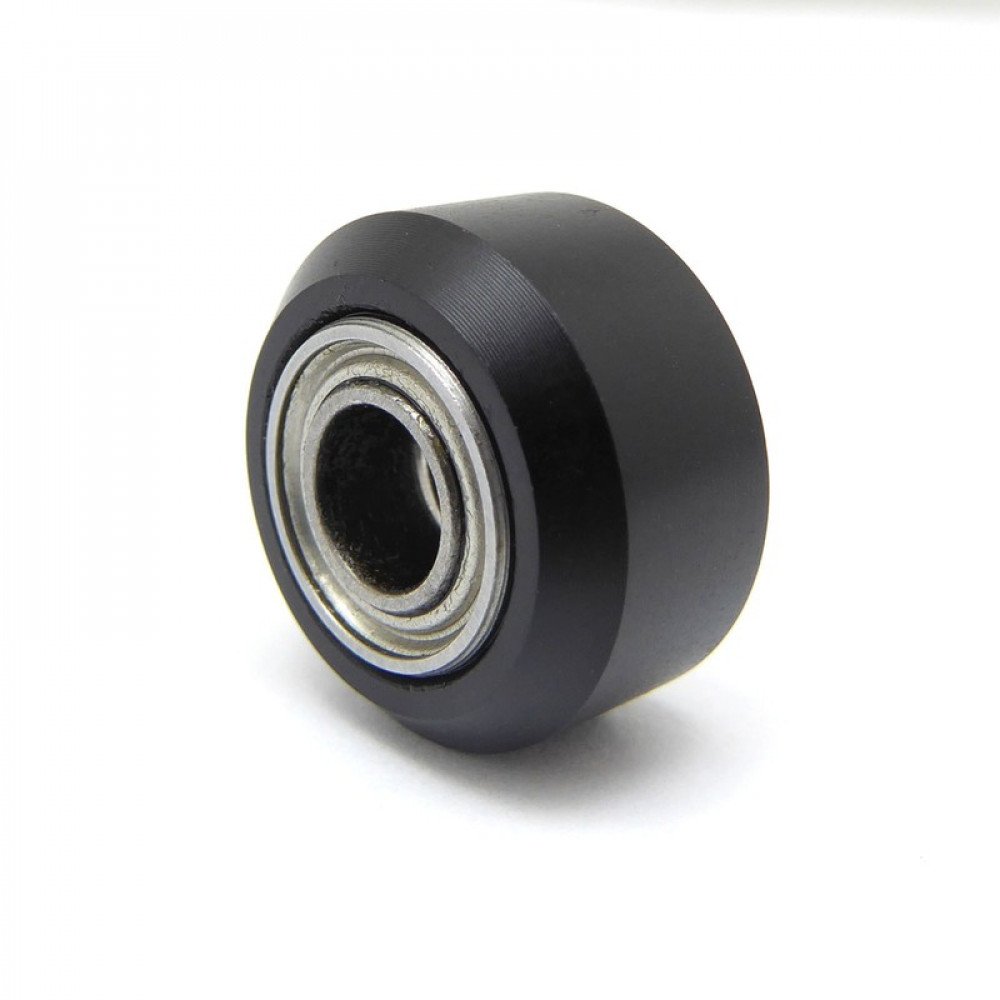

Delrin Mini V Wheel™ Kit

The Mini V Wheel Kit is used in conjuntion with Mini V Plate to create a small form factor linear actuator guide!

These Mini V Wheels can be used on a variety of projects and are great for use with any V-Slot Extrusion.

Each wheel is carefully milled for consistent high precision and tolerance.

Part Details

• Material - Delrin (black)
• Dimensions 15.23 OD x 9.974 +/- 0.026 ID x 8.8 'thick'
• Rockwell Hardness M80
• Compressive Strengh 63Mpa

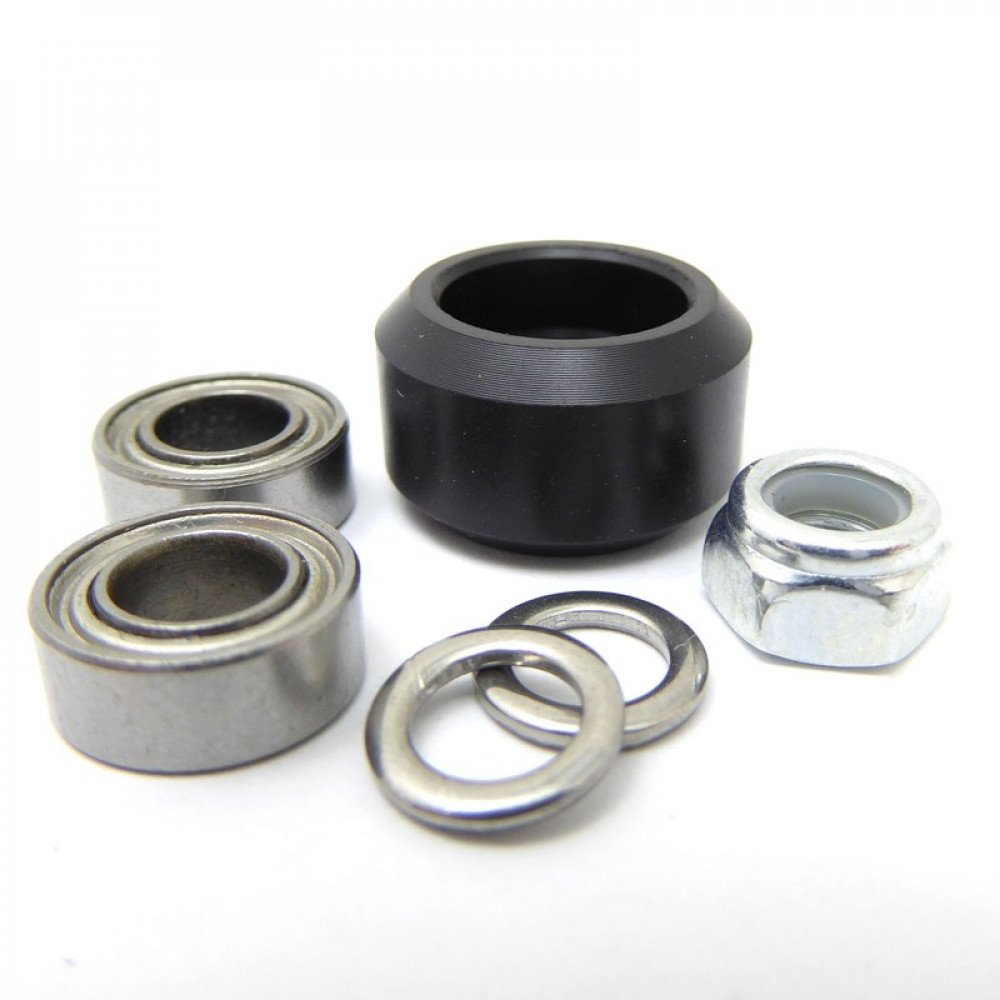

Includes:

• (1) Mini V Wheel
• (2) Mini V Bearings (V3)
• (2) Mini V 1mm Precision Shim
• (1) M5 Nylon Lock Nut

Also, be sure to grab the screws and spacers of your choice here:

• Low Profile Screw (25mm for use with 1/8" Plate and 30mm for 1/4" Plates with the exception of the C-Beam Gantry Plate & Mini V Plate which uses 25mm)
• Aluminum Spacers (choose between 6mm and 1/4")
• Eccentric Spacers (choose between 6mm and 1/4")

Belt Driven Mini V example models

Example Build
