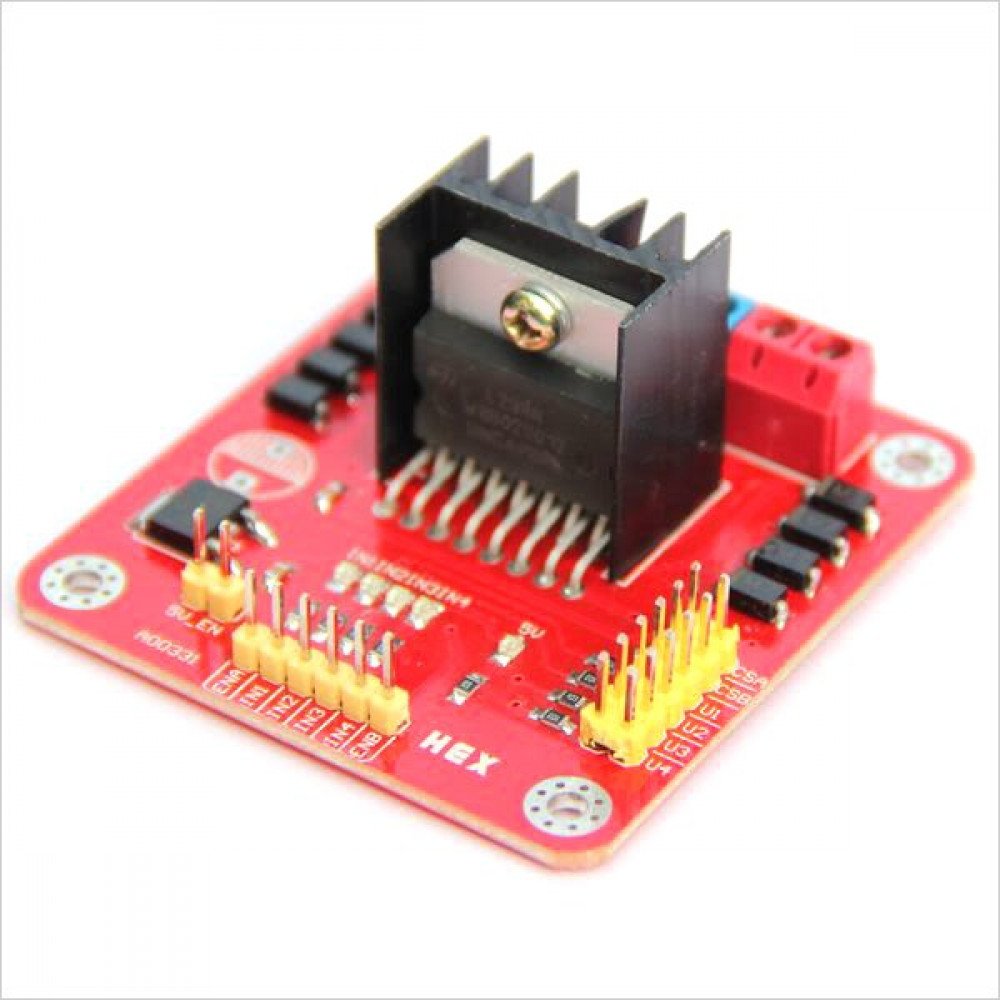

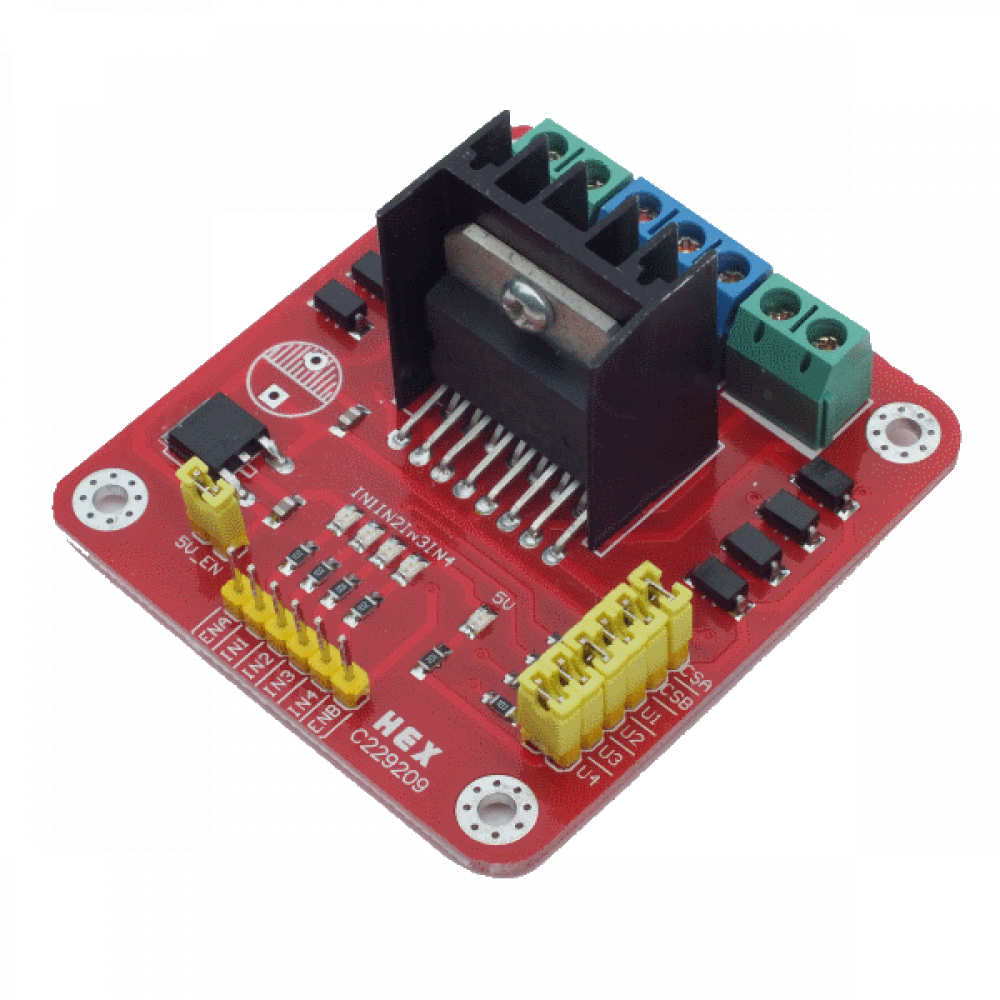

L298N Dual H Bridge DC Stepper Motor Driver Board

L298N Dual H-Bridge Stepper Motor Driver Controller Module Board For Arduino

Description:

Uses ST L298N chip, can directly drive two 3V - 30V DC motor, and provide a 5V output interface, power for 5V single chip circuitry, support 3.3V MCU control. Can easily control the DC motor speed and direction, also control the 2 phase stepper motor.

Specification:

Driver chip: L298N Dual H Bridge DC Motor Driver IC
Driven part of the terminal supply voltage: VMS 5V ~ 35V
Driven part of the peak current IO: 2A per bridge
The logical part of the terminal supply voltage: VSS 4.5V ~ 5.5V
The logical part of the operating current range: 0mA ~ 36mA
Control signal input voltage range: 4.5V ~ 5.5V (high) / 0V (low)
Max power consumption: 20W
Operating temperature: -25°C ~ +130°C
Size: 55 x 60 x 30mm
