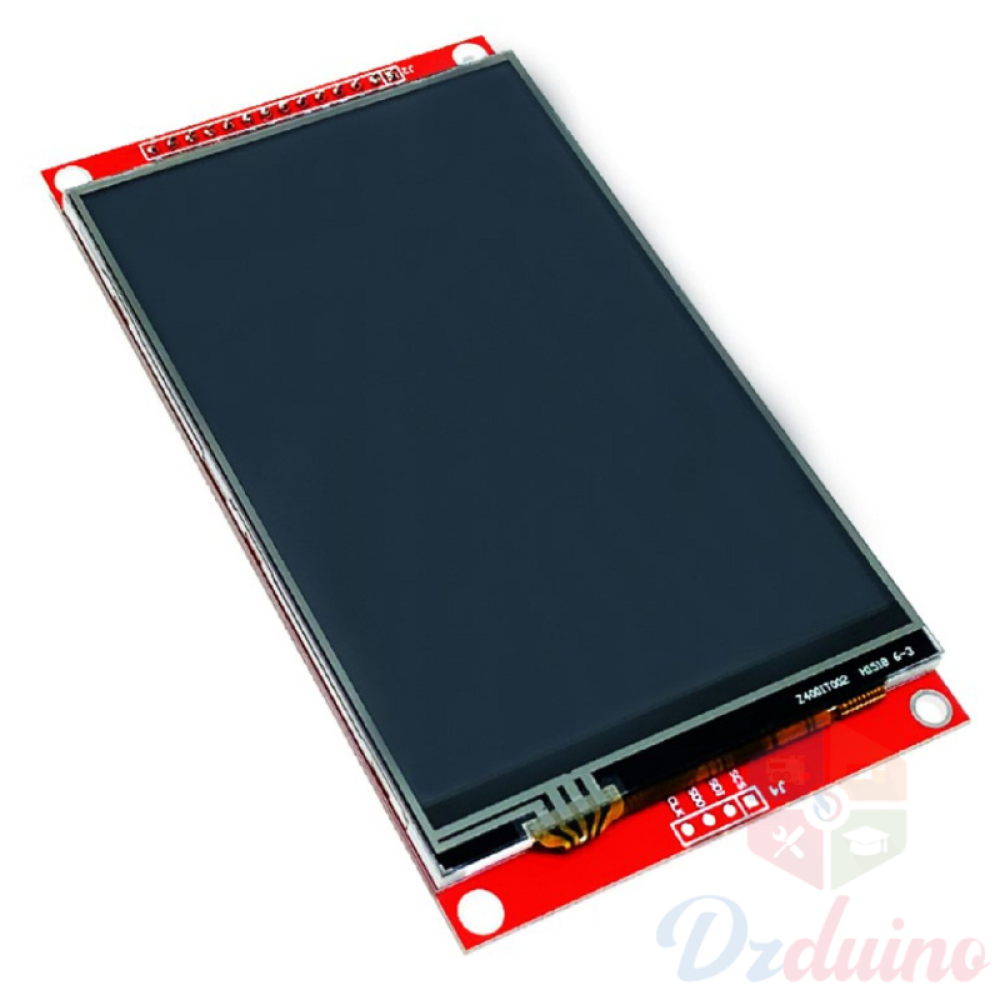

4inch SPI 480*320 TFT ILI9488 Display (with touch)

Description

4.0 inch color screen, supports 65K color display, rich color display
HD resolution 480x320, touch function optional
Using SPI serial bus, only a few IO can illuminate the display
Convenient expansion experience with slot for SD card
Provide a wealth of sample programs

Product parameters
Name    :Setting
Display color     :65K RGB color
SKUsWith touch screen:  MSP4021
Without touch screen: MSP4020
Screen size:    4.0 (inch)
Kind:    TFT
Driver IC  Related Parts :ST7796S
Resolution   : 480*320 (Pixel)
Interface module   : 4-wire SPI interface
Active zone (zone AA)  :  48.96x73.44(mm)
PCB Module Size :   56.34x98(mm)
Operating temperature  :  -20℃~70℃
Storage temperature   : -30℃~80℃
Supply voltage VCC  :  3.3V ~ 5V
IO logic port voltage  :  3.3V(TTL)
Power consumption   : About 90mA
