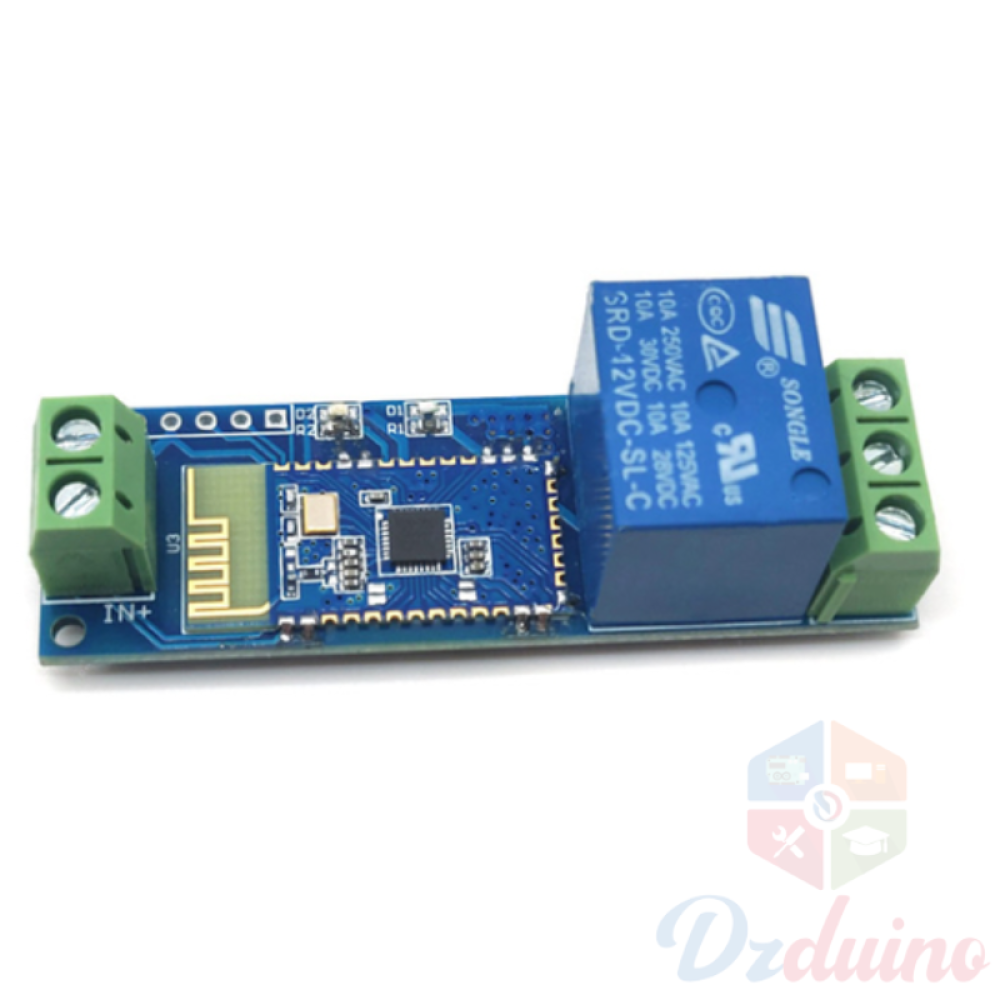

1CH Bluetooth Relay Module 12V

Description:

The single-channel Bluetooth relay module includes 5V/10A or 12V/10A relay module and SPP-C Bluetooth serial port slave module, which can be used to control the switch of the relay through the mobile phone APP. The new model is more practical and has better performance. Stable.

Function:

Working voltage: DC 5V 12V

Provide Bluetooth relay control APP

Control distance: 10M (open environment)

Size: 62*20mm(1 way), 40*64.5mm(2 way), 60*62.7mm(4 way)

Onboard Bluetooth status indicator and relay indicator.

Onboard high-performance MCU and SPP-C Bluetooth 2.1 slave module.

Reserve the UART debugging interface, which can be used to modify the Bluetooth pairing password.

On board 1 /2 /4 way 12V, 10A/250V AC 10A/30V DC relay, which can be activated continuously for 100,000 times, has diode effusion protection, and has a short response time.
